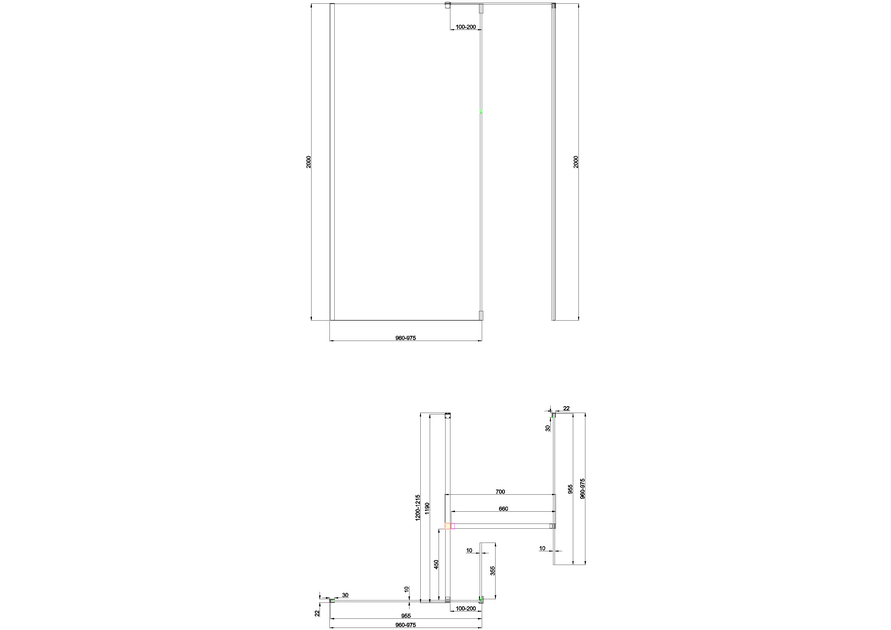

Corner with T Bracing Bar and Fixed Deflector
As Shown
| GR100010CF+ Gallery 10 Panel 1997x955 Clear |
| GR040010CF+ Gallery 10 Panel 1997x355 Clear |
| GRPROFILEPSS Gallery Wall Profile Polished Stainless |
| GRTBRACEPSS Gallery T Brace Bar Pol Stainless |
| GRBRACKPSS Gallery Glass-Glass Bracket Pol Stain |
| GRBUBBLESEAL Gallery Bubble Seal 2000mm for GRBRACK |
Colour
Material
Size
| GR100010CF+ - 10 x 955 x 1997mm |
| GR040010CF+ - 10 x 355 x 1997mm |
| GRPROFILEPSS - 2000 x 30 x 22mm |
| GRTBRACEPSS - 1380 x 60 x 55mm |
| GRBRACKPSS - 115 x 75 x 45mm |
| GRBUBBLESEAL - 1880 x 20 x 10mm |
Nett Weight
Gross Weight Including Packaging
Packed Dimension
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Diverse layout options |
|
2000mm enclosure height |
|
Polished 304 grade stainless steel finish |
|
15mm width adjustment for easy fitting |
|
Concealed fixings |
|
Choice of bracing bar options |
|
Optional hinged or fixed deflector panel |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
GR100010CF+ GR040010CF+ GRPROFILEPSS GRTBRACEPSS GRBRACKPSS GRBUBBLESEAL
(Gallery WALK IN--T bracing bar with side panel and fixed panel 2.dwg)
-
2D Drawing - PDF -
GR100010CF+ GR040010CF+ GRPROFILEPSS GRTBRACEPSS GRBRACKPSS GRBUBBLESEAL
(Gallery WALK IN--T bracing bar with side panel and fixed panel 2.pdf)
2D Drawing - PDF - GR100010CF+ GR040010CF+ GRPROFILEPSS GRTBRACEPSS GRBRACKPSS GRBUBBLESEAL
-
3D STEP - File - STEP
-
GR100010CF+ GR040010CF+ GRPROFILEPSS GRTBRACEPSS GRBRACKPSS GRBUBBLESEAL
(Gallery WALK IN--T bracing bar with side panel and fixed panel 2.STEP)
