Corner with T Bracing Bar and Hinged Deflector

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

GR100010CF_V2 Gallery 10 Panel 1997x955 Clear

GRPROFILEPSS Gallery Wall Profile Polished Stainless

GRDEFLEC300 Gallery Deflector Panel 2000x300

GRDEFHINGEPSS Gallery Defl Panel Hinge x2 Pol Stain

GRTBRACEPSS Gallery T Brace Bar Pol Stainless

Colour

GR100010CF_V2 - walk in profile - Clear

GRPROFILEPSS - walk in profile - Polished Stainless Steel

GRDEFLEC300 - walk in profile - clear glass

GRDEFHINGEPSS - hinge - Polished Stainless Steel

GRTBRACEPSS - bracing bar - Polished Stainless Steel

Material

GR100010CF_V2 - walk in profile - Glass

GRPROFILEPSS - walk in profile - Stainless Steel

GRDEFLEC300 - walk in profile - Safety glass

GRDEFHINGEPSS - hinge - Stainless Steel

GRTBRACEPSS - bracing bar - Stainless Steel

Size

GR100010CF_V2 - 10 x 955 x 1997mm

GRPROFILEPSS - 2000 x 30 x 22mm

GRDEFLEC300 - 8 x 300 x 2000mm

GRDEFHINGEPSS - 100 x 100 x 60mm

GRTBRACEPSS - 1380 x 60 x 55mm

Nett Weight

GR100010CF_V2 - walk in profile - 48kg

GRPROFILEPSS - walk in profile - 2.8kg

GRDEFLEC300 - walk in profile - 12kg

GRDEFHINGEPSS - hinge - 1kg

GRTBRACEPSS - bracing bar - 2.2kg

Gross Weight Including Packaging

GR100010CF_V2 - walk in profile - 50kg

GRPROFILEPSS - walk in profile - 3kg

GRDEFLEC300 - walk in profile - 13.5kg

GRDEFHINGEPSS - hinge - 1.05kg

GRTBRACEPSS - bracing bar - 2.3kg

Packed Dimension

GR100010CF_V2 - 75 x 1015 x 2080 = 0.1583 m3

GRPROFILEPSS - 2100 x 50 x 50 = 0.0053 m3

GRDEFLEC300 - 85 x 360 x 2070 = 0.0633 m3

GRDEFHINGEPSS - 110 x 110 x 70 = 0.0008 m3

GRTBRACEPSS - 1395 x 70 x 65 = 0.0063 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN14428:2015

BS EN 12150-1:2015

Additional Information

Diverse layout options

2000mm enclosure height

Polished 304 grade stainless steel finish

15mm width adjustment for easy fitting

Concealed fixings

Choice of bracing bar options

Optional hinged or fixed deflector panel

Suitable for tray or tiled floors (wetroom)

Downloads

Instructions - PDF - GR100010CF_V2 (English)
Instructions - PDF - GRDEFLEC300 (English)

2D CAD-File - DWG - GR100010CF+ GRPROFILEPSS GRDEFLEC300 GRDEFHINGEPSS GRTBRACEPSS (Gallery WALK IN--T bracing bar with side panel and deflector panel 2.dwg)

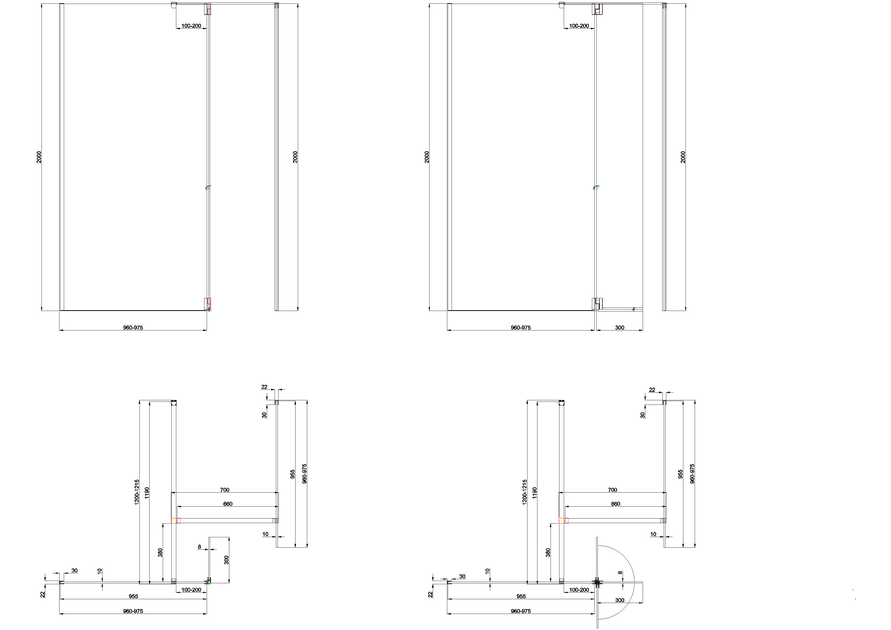

2D Drawing - PDF - GR100010CF+ GRPROFILEPSS GRDEFLEC300 GRDEFHINGEPSS GRTBRACEPSS (Gallery WALK IN--T bracing bar with side panel and deflector panel 2.pdf) 2D Drawing - PDF - GR100010CF+ GRPROFILEPSS GRDEFLEC300 GRDEFHINGEPSS GRTBRACEPSS

3D STEP - File - STEP - GR100010CF+ GRPROFILEPSS GRDEFLEC300 GRDEFHINGEPSS GRTBRACEPSS (Gallery WALK IN--T bracing bar with side panel and deflector panel 2.STEP)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
