Walk Through
As Shown
| GR140010CF_V2 Gallery 10 Panel 1997x1355 Clear |
| GRBRACEPSS Gallery Glass-Wall Brace Pol Stainless |
Gross Weight Including Packaging
| GR140010CF_V2 - walk in profile - 71kg |
| GRBRACEPSS - bracing bar - 1.25kg |
Packed Dimension
| GR140010CF_V2 - 75 x 1415 x 2080 = 0.2207 m3 |
| GRBRACEPSS - 1290 x 50 x 50 = 0.0032 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Diverse layout options |
|
2000mm enclosure height |
|
Polished 304 grade stainless steel finish |
|
15mm width adjustment for easy fitting |
|
Concealed fixings |
|
Choice of bracing bar options |
|
Optional hinged or fixed deflector panel |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
GR140010CF+ GRBRACEPSS
(Gallery WALK IN--straight bracing bar x 2 -- free standing.dwg)
-

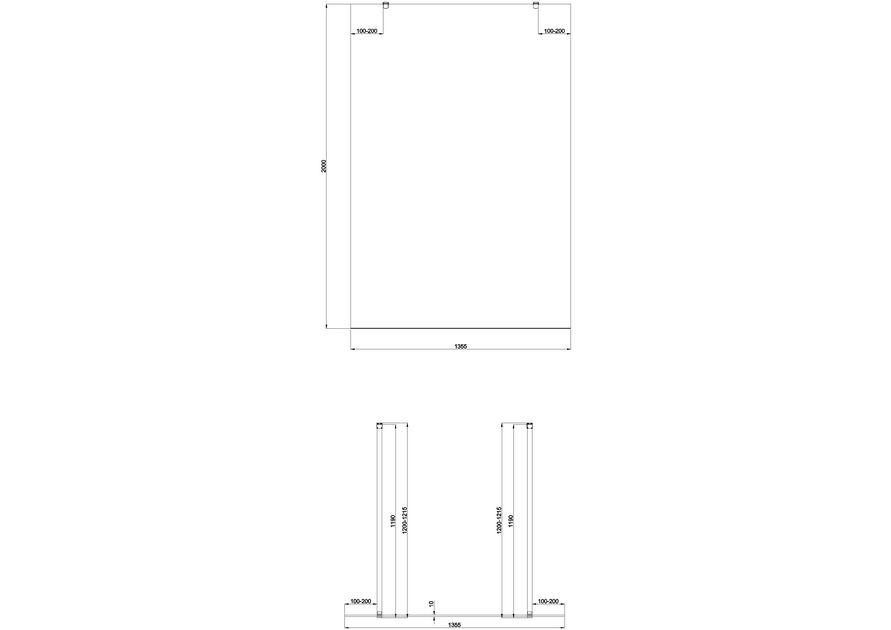

2D Drawing - PDF -
GR140010CF+ GRBRACEPSS
(Gallery WALK IN--straight bracing bar x 2 -- free standing.pdf)
2D Drawing - PDF - GR140010CF+ GRBRACEPSS
-
3D STEP - File - STEP
-
GR140010CF+ GRBRACEPSS
(Gallery WALK IN straight bracing bar x2 free standing.STEP)
