Walk Through with Hinged Deflectors
As Shown
| GR140010CF_V2 Gallery 10 Panel 1997x1355 Clear |
| GRDEFLEC300 Gallery Deflector Panel 2000x300 |
| GRDEFHINGEMB Gallery Defl Panel Hinge x2 Matt Blk |
| GRBRACEMB Gallery Glass-Wall Brace Matt Black |
Colour
| GR140010CF_V2 - walk in profile - Clear |
| GRDEFLEC300 - walk in profile - clear glass |
| GRDEFHINGEMB - hinge - Matt Black |
| GRBRACEMB - bracing bar - Matt Black |
Material
| GR140010CF_V2 - walk in profile - Glass |
| GRDEFLEC300 - walk in profile - Safety glass |
| GRDEFHINGEMB - hinge - Stainless Steel |
| GRBRACEMB - bracing bar - Stainless Steel |
Size
| GR140010CF_V2 - 10 x 1355 x 1997mm |
| GRDEFLEC300 - 8 x 300 x 2000mm |
| GRDEFHINGEMB - 100 x 100 x 60mm |
| GRBRACEMB - 1280 x 45 x 45mm |
Nett Weight
| GR140010CF_V2 - walk in profile - 69kg |
| GRDEFLEC300 - walk in profile - 12kg |
| GRDEFHINGEMB - hinge - 1kg |
| GRBRACEMB - bracing bar - 1.2kg |
Gross Weight Including Packaging
| GR140010CF_V2 - walk in profile - 71kg |
| GRDEFLEC300 - walk in profile - 13.5kg |
| GRDEFHINGEMB - hinge - 1.05kg |
| GRBRACEMB - bracing bar - 1.25kg |
Packed Dimension
| GR140010CF_V2 - 75 x 1415 x 2080 = 0.2207 m3 |
| GRDEFLEC300 - 85 x 360 x 2070 = 0.0633 m3 |
| GRDEFHINGEMB - 110 x 110 x 70 = 0.0008 m3 |
| GRBRACEMB - 1290 x 50 x 50 = 0.0032 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Suitable for tray or tiled floors (wetroom) |
|
Diverse layout options |
|
2000mm enclosure height |
|
Matt black finish |
|
15mm width adjustment for easy fitting |
|
Concealed fixings |
|
Choice of bracing bar options |
|
Optional hinged or fixed deflector panel |
Downloads
-

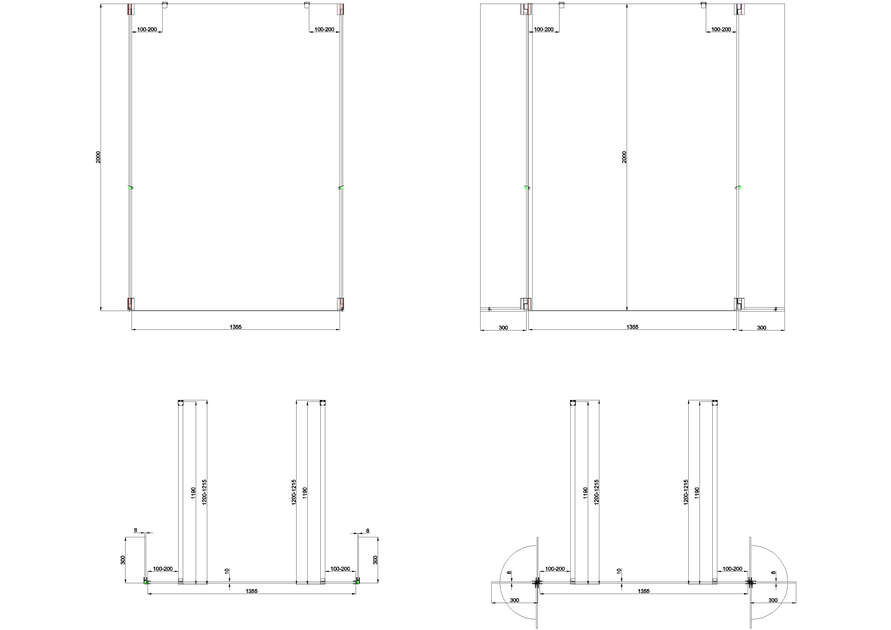

2D CAD-File - DWG -
GR140010CF+ GRDEFLEC300 GRDEFHINGEMB GRBRACEMB
(Gallery WALK IN--straight bracing bar x 2 and deflector panel x 2.dwg)
-
2D Drawing - PDF -
GR140010CF+ GRDEFLEC300 GRDEFHINGEMB GRBRACEMB
(Gallery WALK IN--straight bracing bar x 2 and deflector panel x 2.pdf)
2D Drawing - PDF - GR140010CF+ GRDEFLEC300 GRDEFHINGEMB GRBRACEMB
-
3D STEP - File - STEP
-
GR140010CF+ GRDEFLEC300 GRDEFHINGEMB GRBRACEMB
