Curve2 55 Basin with Pedestal

asaq2.Model.Web_product_new?.web_name

Product Options

pedestal options

Curve2 55 Basin with Full Pedestal

Full Pedestal

Curve2 55 Basin with Semi-Pedestal

Semi-Pedestal

Alternate Text

As Shown

CUR2.005 CURVE 2 Basin 550*450

SP1033 Round semi pedestal

Colour

CUR2.005 - basin - Gloss White

SP1033 - pedestal - Gloss White

Material

CUR2.005 - basin - Vitreous China

SP1033 - pedestal - Vitreous China

Size

CUR2.005 - 450 x 550 x 160mm

SP1033 - 265 x 175 x 250mm

Nett Weight

CUR2.005 - basin - 13.3kg

SP1033 - pedestal - 5.6kg

Gross Weight Including Packaging

CUR2.005 - basin - 14.3kg

SP1033 - pedestal - 6.44kg

Packed Dimension

CUR2.005 - 485 x 580 x 200 = 0.0563 m3

SP1033 - 277 x 192 x 270 = 0.0144 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14688:2015

BS EN31: 2011

Downloads

2D CAD-File - DWG - CUR2.005 SP1033 (CUR2.005_SP.1033.dwg)

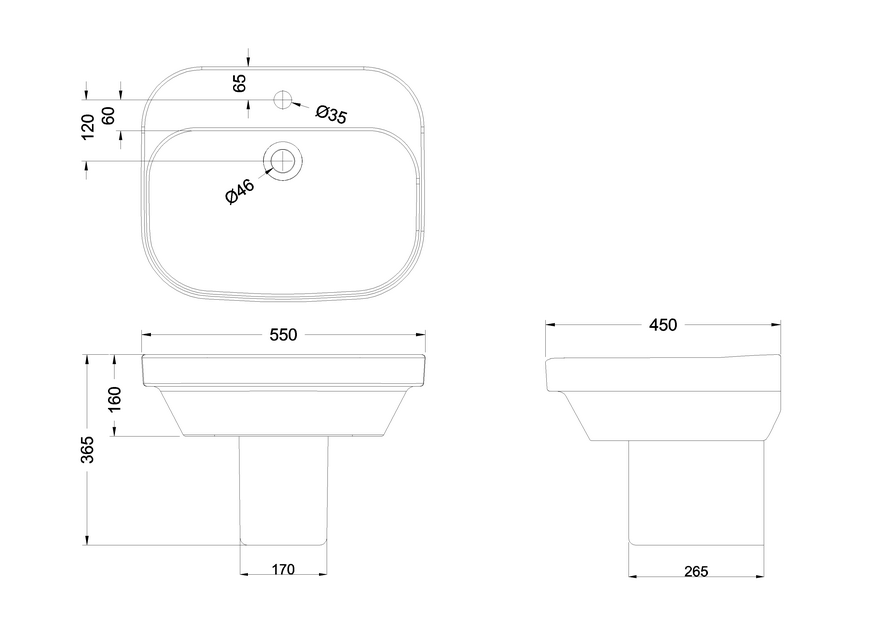

2D Drawing - PDF - CUR2.005 SP1033 (CUR2.005_SP.1033.pdf) 2D Drawing - PDF - CUR2.005 SP1033

3D RFA BIMM Objects - File - RFA - CUR2.005 SP1033 (CUR2.005_SP.1033.rfa)
3D IGS - File - IGS - CUR2.005 (CUR2.005.igs)
3D STP - File - STP - SP1033 (SP.1033.stp)

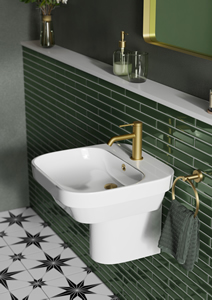

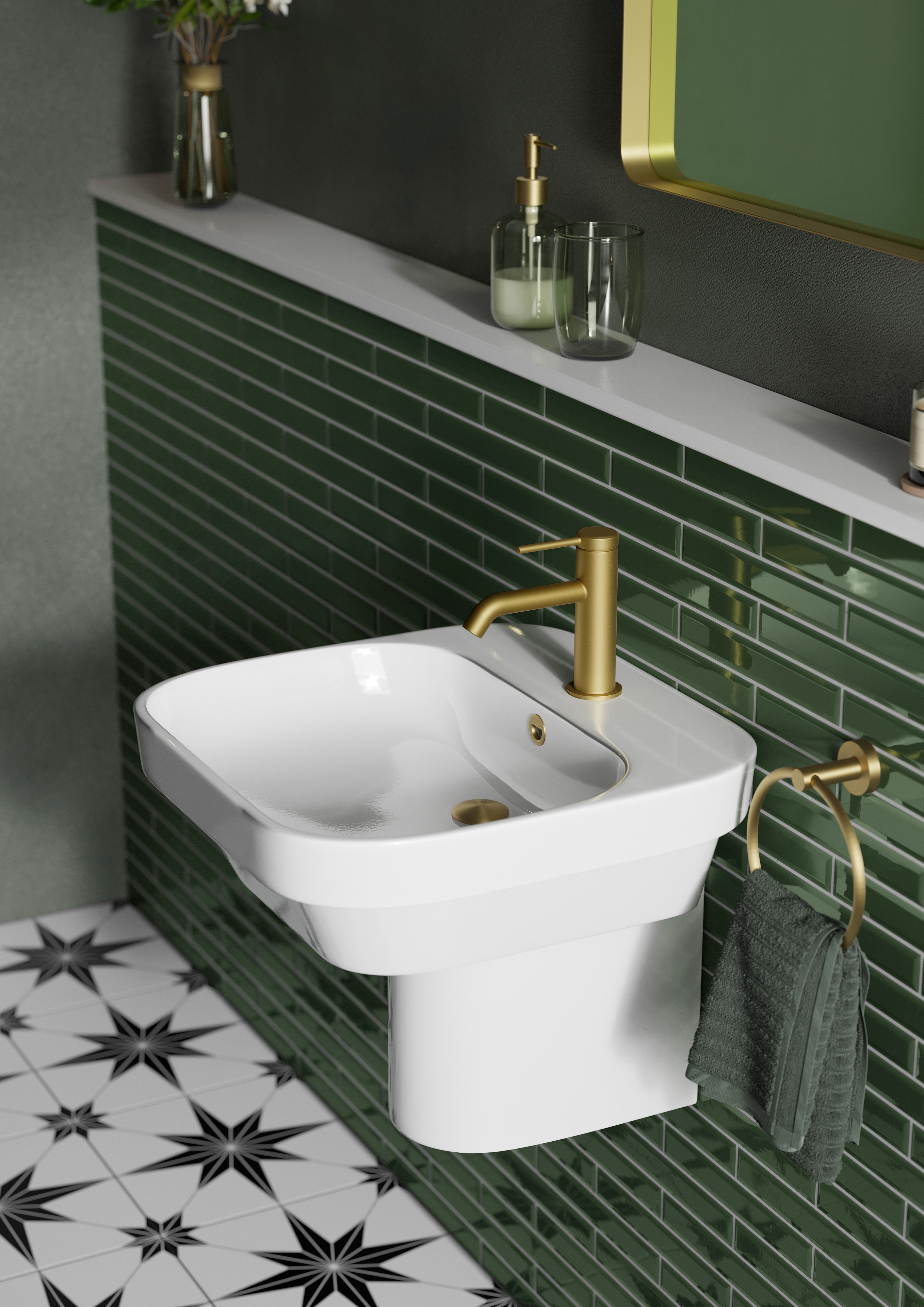

Lifestyle image 1 -

jpg

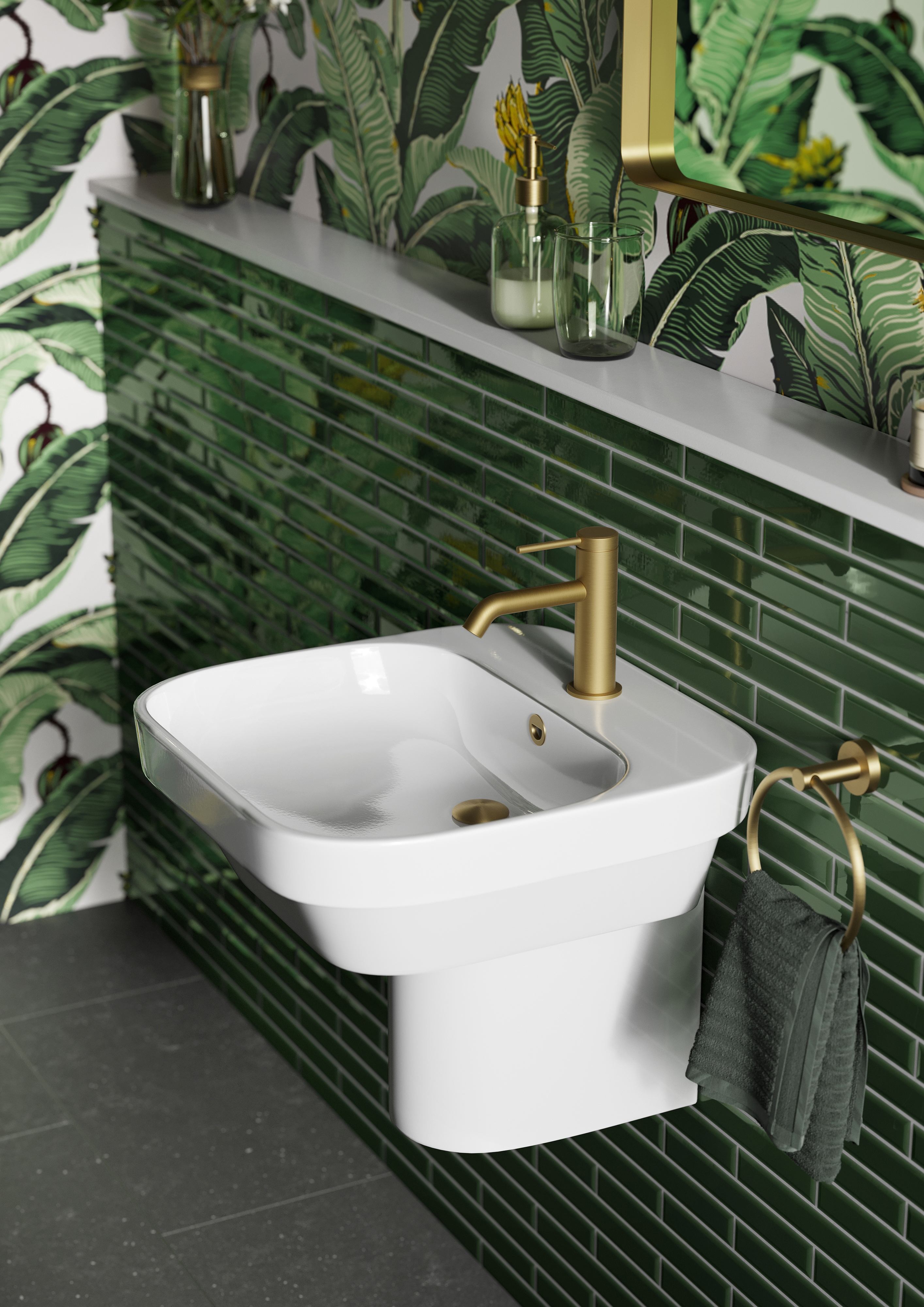

Lifestyle image 2 -

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
