Trim 50 Basin

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

TRIM005 TRIM 500 BASIN 1TH

Colour

TRIM005 - basin - Gloss White

Material

TRIM005 - basin - Vitreous China

Size

TRIM005 - 410 x 500 x 160mm

Nett Weight

TRIM005 - basin - 12.4kg

Gross Weight Including Packaging

TRIM005 - basin - 13.4kg

Packed Dimension

TRIM005 - 435 x 530 x 195 = 0.045 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14688:2015

BS EN31:2011

Downloads

2D CAD-File - DWG - TRIM.005 (TRIM.005_WB.dwg)

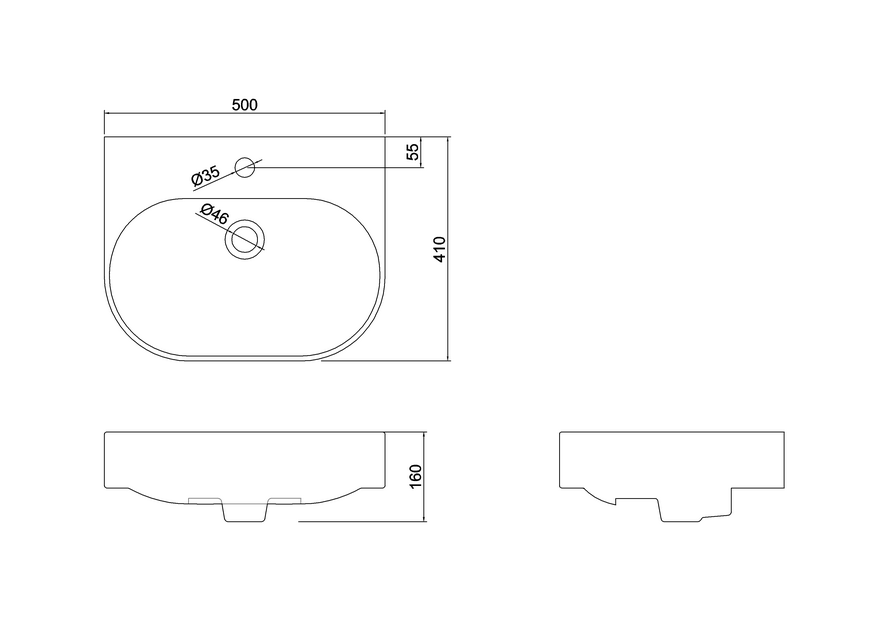

2D Drawing - PDF - TRIM.005 (TRIM.005_WB.pdf) 2D Drawing - PDF - TRIM.005

3D RFA BIMM Objects - File - RFA - TRIM.005 (116012.rfa)
3D STP - File - STP - TRIM005 (TRIM.005.stp)

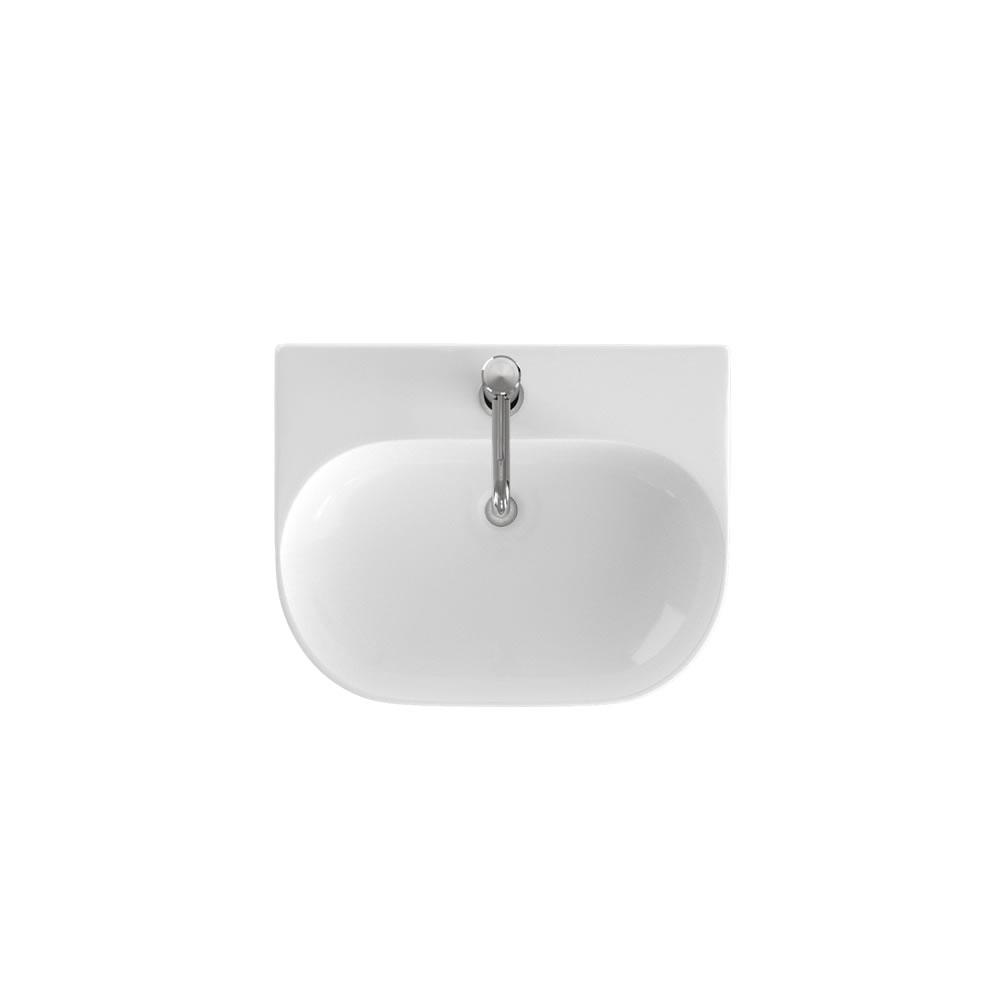

Product image 1 - jpg
Product image 2 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
