Trim Back To Wall WC Including Soft Close Seat

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

TRIM.003 TRIM BTW WC PAN INCLUDING FLOOR-FIXING SCREWS AND SOFT CLOSE SEAT

Colour

TRIM.003 - pan - Gloss White

Material

TRIM.003 - pan - Vitreous China

Size

TRIM.003 - 500 x 366 x 420mm

Nett Weight

TRIM.003 - pan - 24.2kg

Gross Weight Including Packaging

TRIM.003 - pan - 28.3kg

Packed Dimension

TRIM.003 - 525 x 440 x 450 = 0.104 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 997:2012

BS EN 33:2011

Downloads

Instructions - PDF - TRIM.003 (English)
Instructions - PDF - TRIM.003 (French)

2D CAD-File - DWG - TRIM.003 (TRIM.003.dwg)

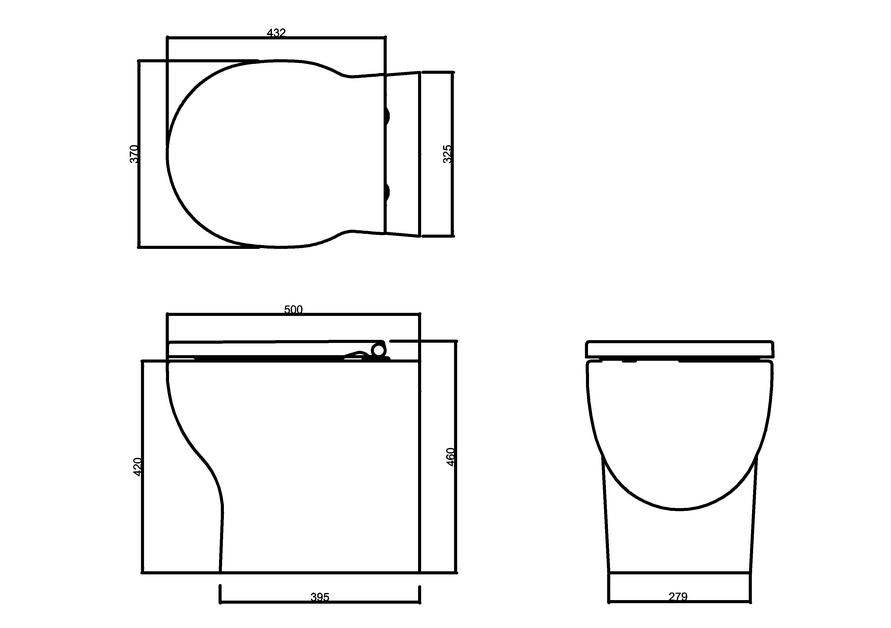

2D Drawing - PDF - TRIM.003 (TRIM.003.pdf) 2D Drawing - PDF - TRIM.003

3D STP - File - STP - TRIM.003 (TRIM.007.stp)
3D RFA BIMM Objects - File - RFA - TRIM.003 (116018.rfa)
3D STP - File - STP - TRIM.003 (TRIM.003.stp)

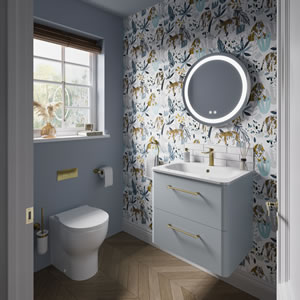

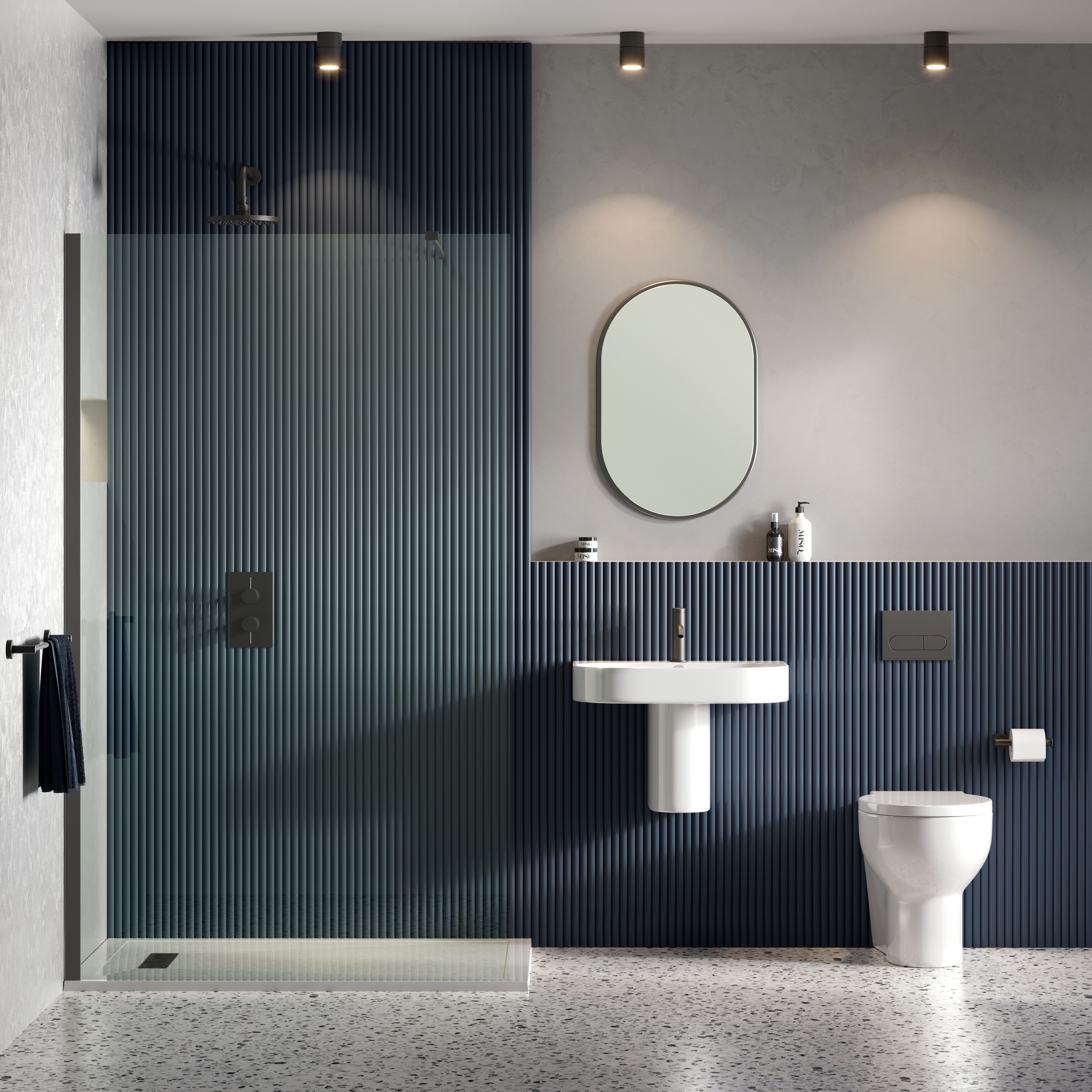

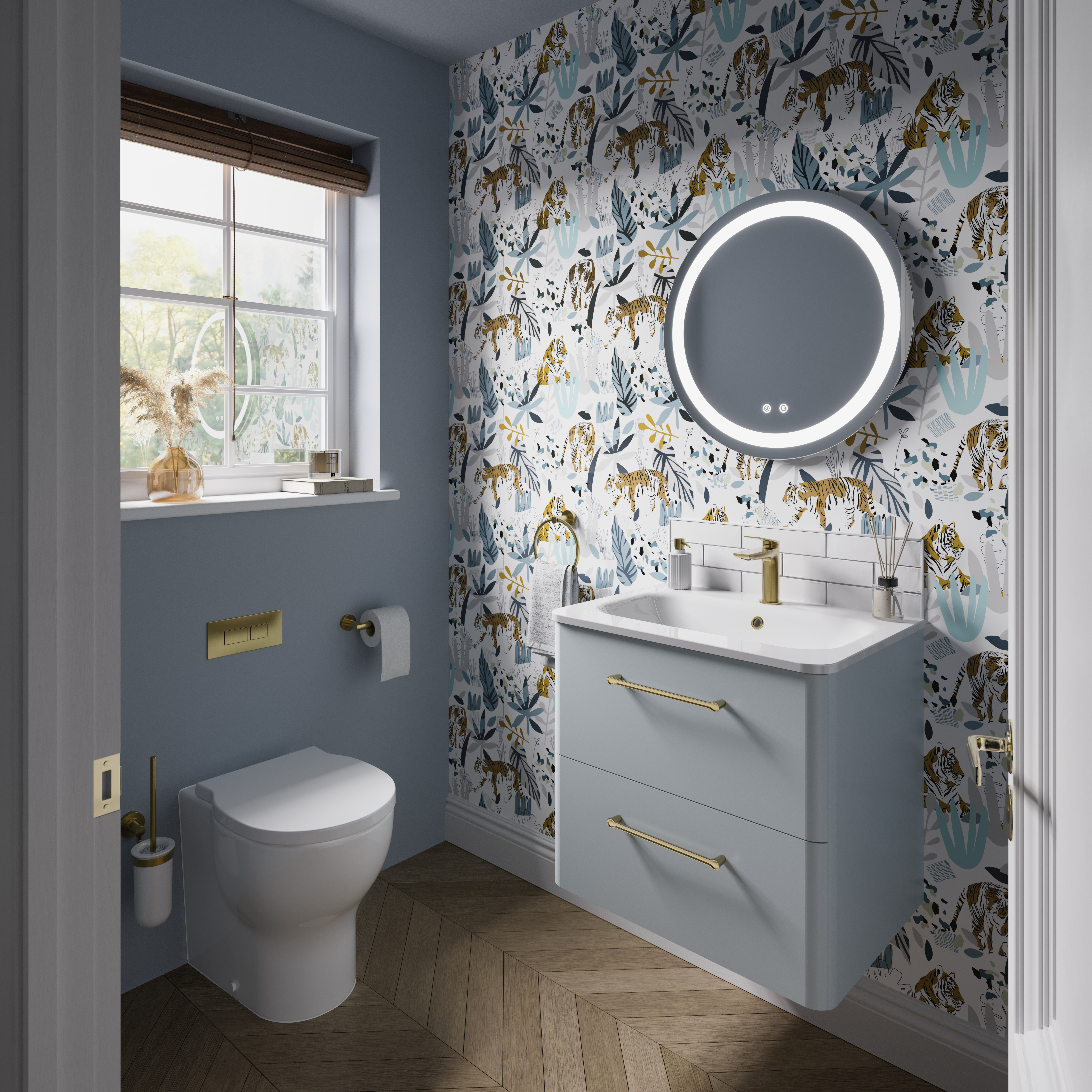

Lifestyle image 1 -

jpg
Lifestyle image 2 -

jpg
Lifestyle image 3 -

jpg

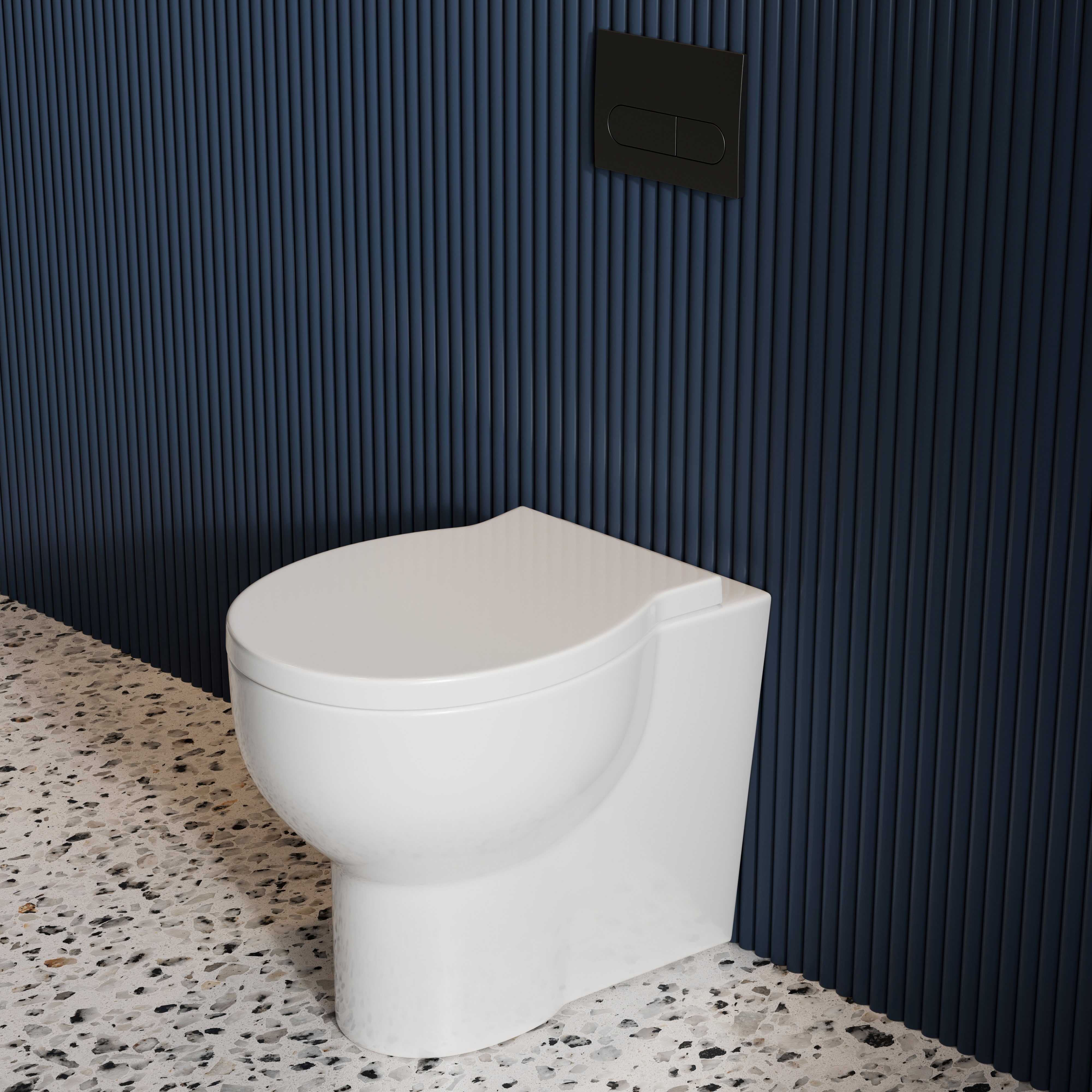

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
