Avon Thermostatic dual function brass valve
asaq2.Model.Web_product_new?.web_name
Product Options
shower head options
6_shower_head_wb.jpg 6 inch Avon Medici Thermostatic Exposed Shower Valve Two Outlet,Extended Rigid Riser, Swivel Shower Arm, Handset & Holder with Hose with 9 inch rose 9 inch Avon Medici Thermostatic Exposed Shower Valve Two Outlet,Extended Rigid Riser, Swivel Shower Arm, Handset & Holder with Hose with 12 inch rose  - Copy 12 inch
Finish Options
Avon Medici Thermostatic Exposed Shower Valve Two Outlet,Extended Rigid Riser, Swivel Shower Arm, Handset & Holder with Hose with 6 inch rose Chrome
Indicies & lever finish
Avon Medici Thermostatic Exposed Shower Valve Two Outlet,Extended Rigid Riser, Swivel Shower Arm, Handset & Holder with Hose with 6 inch rose White Avon Medici Thermostatic Exposed Shower Valve Two Outlet,Extended Rigid Riser, Swivel Shower Arm, Handset & Holder with Hose with 6 inch rose Medici Avon Thermostatic Exposed Shower Valve Two Outlet,Extended Rigid Riser, Swivel Shower Arm, Handset & Holder with Hose with 6 inch rose  - Black Black
rigid riser option
Avon Thermostatic Exposed Shower Valve Two Outlet,Rigid Riser, Swivel Shower Arm, Handset & Holder with Hose with 6 inch rose Standard rigid riser Avon Medici Thermostatic Exposed Shower Valve Two Outlet,Extended Rigid Riser, Swivel Shower Arm, Handset & Holder with Hose with 6 inch rose Extended rigid riser
Alternate Text
As Shown

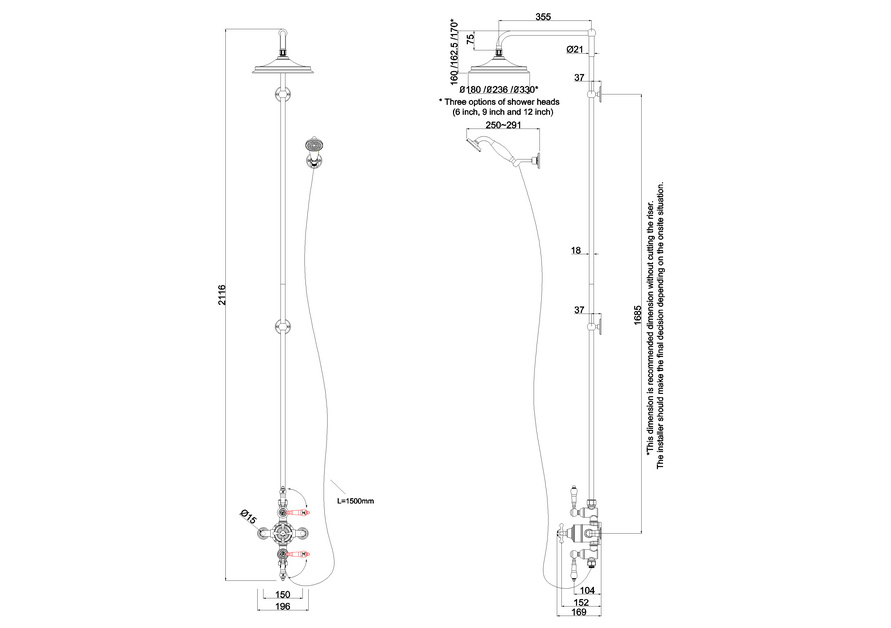

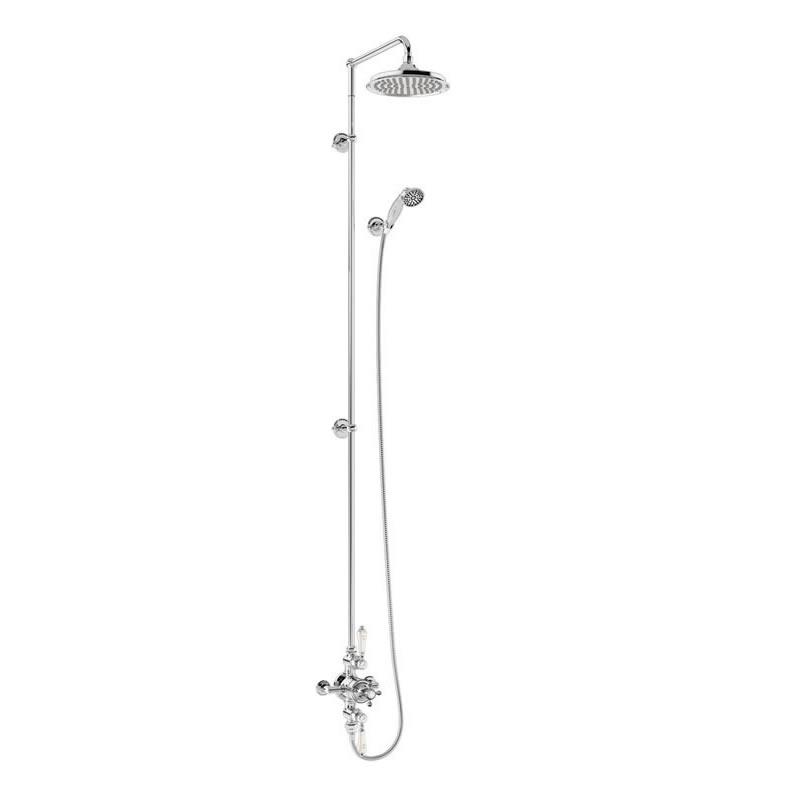

AF3S Avon Thermostatic Exposed Shower Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose
V22 Extended vertical riser
V16 6 inch shower rose
BAF3S.EXT-V16  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
Additional Information
Traditional brass body, Claremont handle, with ceramic levers
Adjustable wall bracket, 1500mm shower hose, and handset with ceramic handle
18mm diameter vertical brass shower riser
355mm adjustable swivel shower arm
6" AirBurst shower head (as shown on image)
The shower head has anti-limescale silicon nipples
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
12 inch rose 4.23  7.62  10.27  15.7  19.1  n/a  n/a
12 inch rose & handset 7.27  9.85  15.01  23.71  30.14  n/a  n/a
6 inch rose 4.05  6.39  8.27  11.55  14.46  n/a  n/a
6 inch rose & handset 7.08  9.17  14.58  22.5  28.11  n/a  n/a
9 inch rose 3.64  4.15  10.46  13.04  n/a  n/a
9 inch rose & handset 6.86  8.34  14.18  21.93  26.5  n/a  n/a
Handset 3.13  5.92  8.06  11.55  14.6  n/a  n/a
ACSH1 1.5m Shower hose with ACS approval for T8, T8-QT, TF2S, TF3S, AF3S, T2DB
SP118 2 x chrome dome + 2 x connection part for V25
SP806 3x rubber o rings and 1x plastic washer for all finishes products of V21, V22, ARCV21, ARCV22
SP175 back plate of product AF3S, AF1S, ARC74 CHR
SP593 bottom lever (including thread) for two outlets valves (on, off indices)
V29 burlington Ceramic telephone handset
V26 burlington Shower hose 1500mm
SP958 cartridge cap of product AF1S, AF3S
SP163 ceramic B indices with Chrome for V34 and V36
SP1209 ceramic handle for Burlington telephone handset
V10-2 ceramic levers for Avon & Clyde dual control valves (pair)
SP108 ceramic ring for all finishes products of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4
SP1664 check valve for all finishes products of EF1S, EF2S, T2WS, T2DS, AF1S, AF3S, T2DB, T2WB
SP873 chrome bevel and threaded part of Burlington & Arcade valve handles
SP110 chrome compression nut and olive for V21, V22, V31, V27
V1 claremont valve handle 1 (single)
SP596 claremont valve handle for all valves, (except Stour)
V31 diverter with ceramic lever
SP553 fixing nut & retaining ring of product AF1S, AF3S, ARC74 CHR
SP1692 fixing screw sets (including flat washer and spring washer) for all finishes products of Avon valve, Trent valve, Severn valve
SP1248 gear sleeve for stop valve for AF1S, ARC74 CHR, AF3S, AF3S BLA, BF1S
SP599 grub screw (M4x4)
SP603 grub screw (M5x5) for all finishes products of SF1S, SF3S, AF1S, AF3S
SP37 hent F5 flow control cartridge
SP36 hent F6 flow control cartridge
SP994 inner box and internal package of product AF3S
SP751 lever base for AF1S, ARC74 CHR, TF3S, VF3S, TF3S BLA, ARCV25 CHR, SF3S, AF3S, AF3S BLA, TF2S, TF1S, VF1S, TF1H, ARC64 CHR, ARC73 CHR, TF1S BLA, TF1H BLA, TF2S BLA, SF1S
SP935 lower water flow control section of product AF1S, AF3S
SP128 metal block for ARC74 CHR, AF1S, AF3S
SP713 metal part of the diverter handle of V31 with screw
SP1784 olives part (one pair) for R6 CHR, R7 CHR, AF1S, AF3S, EF1S, EF2S, T2WB, T2WS
SP388 one set of hot and cold inlet elbow for V25, AF3S (including compression nut and cover plate)
SP662 one unit of wall Bracket for V21and V22(28-171mm)
SP714 optional elbow for V25, ARC74 CHR, AF1S, AF3S (one pair)
SP155 pair of cover plate for V25, AF3S, AF1S, ARC74 CHR
SP1310 plastic block for all finishes products of AF1S, ARC74, V25, AF3S
SP1385 retaining nut for all finishes products of BF3S, AF1S, ARC74, ARCV25, V25, AF3S, BF2S, BF1S
SP997 retaining sleeve of products AF1S, AF3S, ARC74 CHR
V18 shower hook (for wall mounting of telephone shower head)
SP130 single top, bottom control knob for flow of product AF1S, AF3S
SP601 small grub screw (M4x4)
V11-1 straight shower arm for vertical riser mounting
SP1147 the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws)
SP1128 the screws and expansion tubes for Trent, Avon, Eden valves (6 sets)
SP1369 top control section for AF3S, V25, AF1S
SP592 top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
SP32 vernet T1 temperature control cartridge
SP929 wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H
SP1293 washer for all finishes products of ARC74, AF3S
