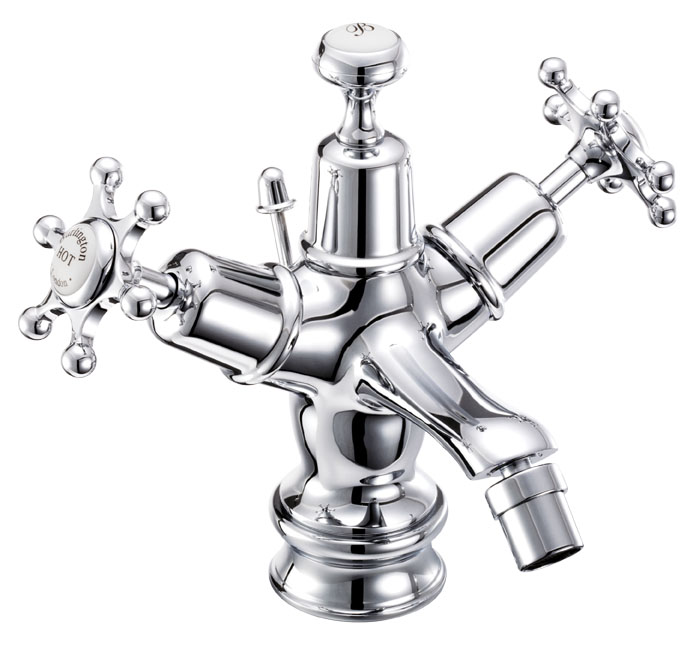

Burlington bidet mixer with high central indice with pop-up waste
Product Options
Tap Head Options (Chrome Finish Shown)
Tap Base options
Indicies & lever finish
Quarter turn options
Claremont
|
Anglesey
|
Birkenhead
|
Kensington
|
Standard base
|
Regent base
|
|
White
|
Medici
|
Black
|
quarter turn
|
tradional screw-down
|
As Shown
| T15_QT Quarter turn bidet mixer with pop up |
| T3 Birkenhead tap handles |
| T4B Regent small single tap base |
| BIR13-QT - Combined product code |
Colour
| T15_QT - tap - Polished Chrome |
| T3 - tap handle - Polished Chrome |
| T4B - regent tap base - Polished Chrome |
Gross Weight Including Packaging
| T15_QT - tap - 2.12kg |
| T3 - tap handle - 0.2kg |
| T4B - regent tap base - 0.21kg |
Packed Dimension
| T15_QT - 335 x 285 x 180 = 0.0172 m3 |
| T3 - 70 x 65 x 65 = 0.0003 m3 |
| T4B - 65 x 65 x 35 = 0.0001 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 10.3 | 15.2 | 16.9 | 19.4 | 20.7 | n/a | n/a |
| Spout (aerator) | 3.8 | 5.3 | 7.3 | 8.3 | 10.5 | n/a | n/a |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP931 | decorative cap of Burlington tap handles - cold |
| SP930 | decorative cap of Burlington tap handles - hot |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP825 | lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23 |
| SP194 | o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT |
| SP974 | plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23 |
| SP807 | pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23 |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP74 | T13, T15 1, 2 quarter turn COLD cartridge |
| SP73 | T13, T15 1, 2 quarter turn HOT cartridge |
| SP942 | tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23 |
| SP99 | the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3 |
| SP1125 | the nozzle for T15, T15-QT, CH23 |
| SP985 | top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT |
Downloads
-
2D CAD-File - DWG -
BIR13-QT
(BIR13_LD.dwg)
-
2D Drawing - PDF -
BIR13-QT
(BIR13_LD.pdf)
2D Drawing - PDF - BIR13-QT
-
3D RFA BIMM Objects - File - RFA
-
BIR13-QT
(T15_T3_T4B.rfa)
- 3D DWG - File - DWG - T4B (T4B.dwg)
- 3D DWG - File - DWG - T3 (T3.dwg)
- 3D DXF - File - DXF - T3 (T3.dxf)
- 3D IGS - File - IGS - T3 (T3.igs)
- 3D DXF - File - DXF - T4B (T4B.dxf)
- 3D IGS - File - IGS - T4B (T4B.igs)
- 3D DWG - File - DWG - T15_QT (T15.dwg)
- 3D DXF - File - DXF - T15_QT (T15.dxf)
- 3D IGS - File - IGS - T15_QT (T15.igs)
