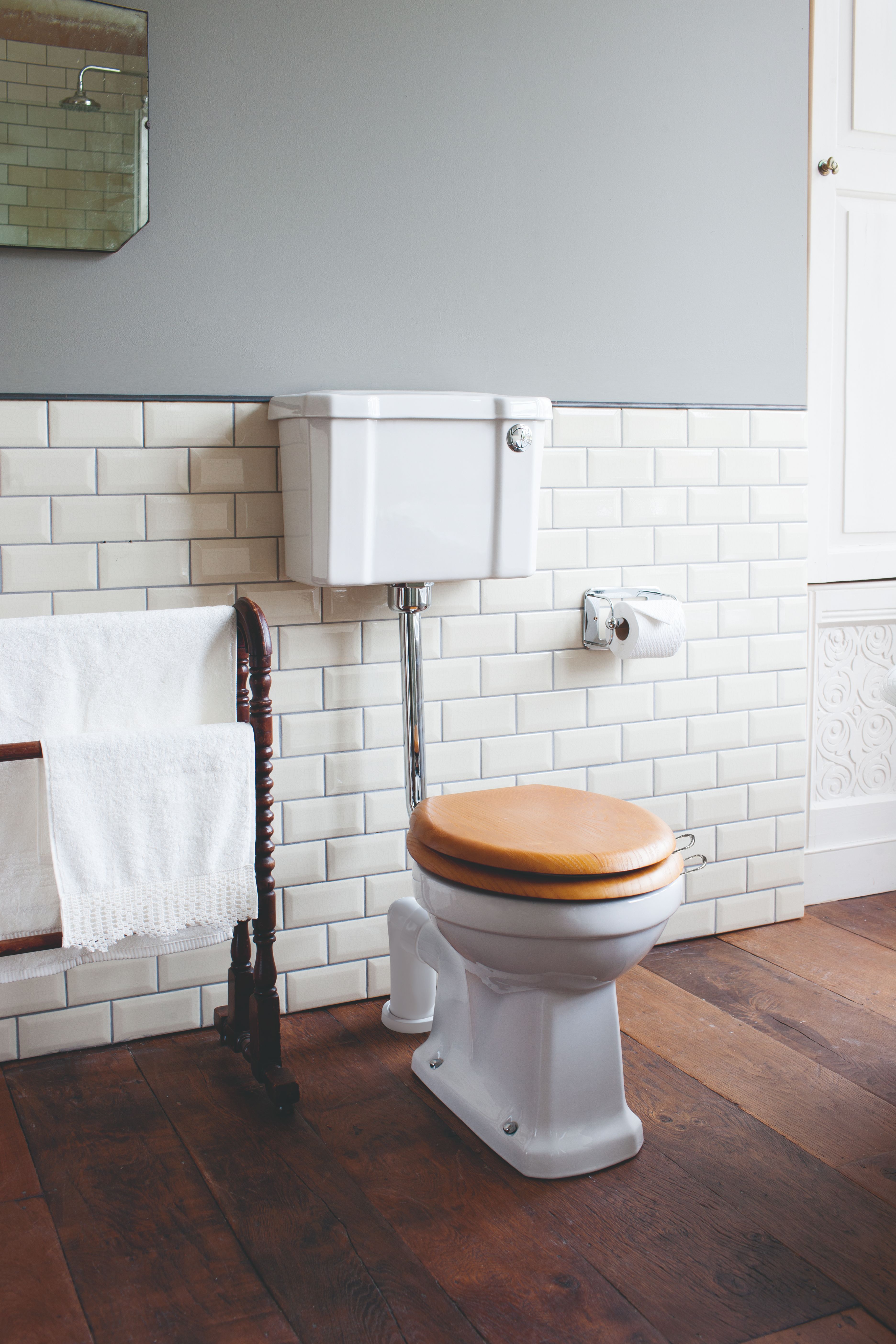

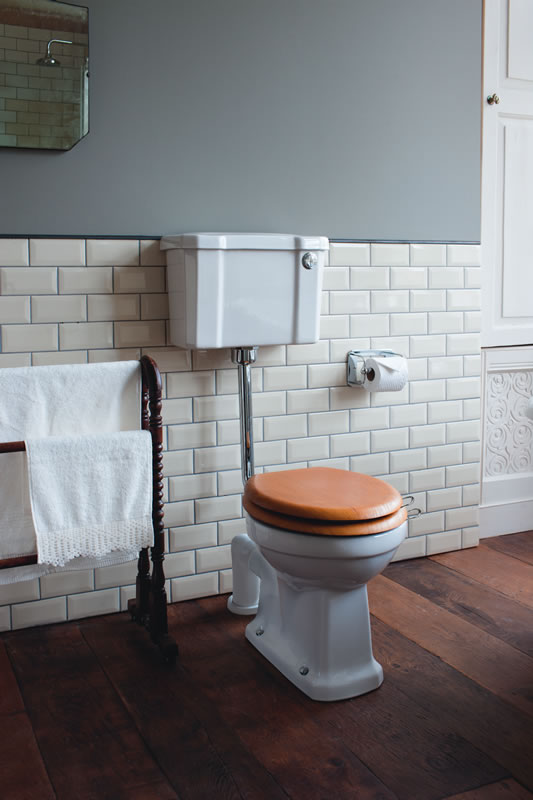

Standard medium level WC with 520 lever cistern
As Shown
| P5 JET Close Coupled Pan Jet |
| T33 CHR Medium Level Flush Pipe Kit Including Medium Ornate Brackets In Chrome |
| C1 JET Close Coupled/Low Level Cist- 51cm Jet |
| S48 Matt Black Seat - Chrome Soft Close |
Colour
| P5 JET - pan - black |
| T33 CHR - fittings - Polished Chrome |
| C1 JET - cistern - |
| S48 - seat - Matt Black |
Material
| P5 JET - pan - vitreous china |
| T33 CHR - fittings - Brass |
| C1 JET - cistern - |
| S48 - seat - Engineered Wood - MDF |
Gross Weight Including Packaging
| P5 JET - pan - 24.15kg |
| T33 CHR - fittings - 3.94kg |
| S48 - seat - 3.49kg |
Packed Dimension
| P5 JET - 378 x 680 x 485 = 0.1247 m3 |
| T33 CHR - 740 x 180 x 185 = 0.0246 m3 |
| C1 JET - 230 x 540 x 370 = 0.046 m3 |
| S48 - 440 x 373 x 67 = 0.011 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 248:2002 |
|
BS EN 33:2019 |
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
Additional Information
|
The medium level wc uses a standard close coupled pan and close coupled cistern, connected with a medium level flush pipe kit T33 CHR. |
|
The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,425mm to the top of the cistern, minimum height is1,125mm. |
|
Water Inlet valve hole is located on the base of cistern tank on the right hand side. |
|
Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). |
|
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug. |
|
Dual flush cistern fittings with ceramic lever on the right. |
|
Press lever down for 6 litre flush and up for 3 litre flush. |
|
P trap standard height pan - height from floor to pan rim is 42cm. |
|
Ceramic soil connection pipes : straight connector to the wall : C29 JET. The S trap connector bending down to the floor : C26 JET. |
| SP1353 | brass fixing nut for all finishes products of T30, T31, T33, T34 |
| SP462 | burlington soft close hinges with screws (pair) - Chrome |
| SP119 | decorative cover of cistern connection for T30CHR & T33CHR |
| SP1355 | fixings for T33 CHR |
| SP136 | flush cone washer for T33 CHR |
| SP187 | flush pipe for T33CHR |
| SP1323 | flush pipe wall bracket for T33 CHR |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP898 | pan decoration plate (including the screws, washers and fixing nuts) of product T33 CHR |
| SP169 | rubber insert for all finishes products of T30, T33, SP20 clip |
| SP460 | thick rubber washer for T33CHR |
