Stafford Long Nose Basin Pillar taps
Product Options
Quarter turn options
quarter turn
|
tradional screw-down
|

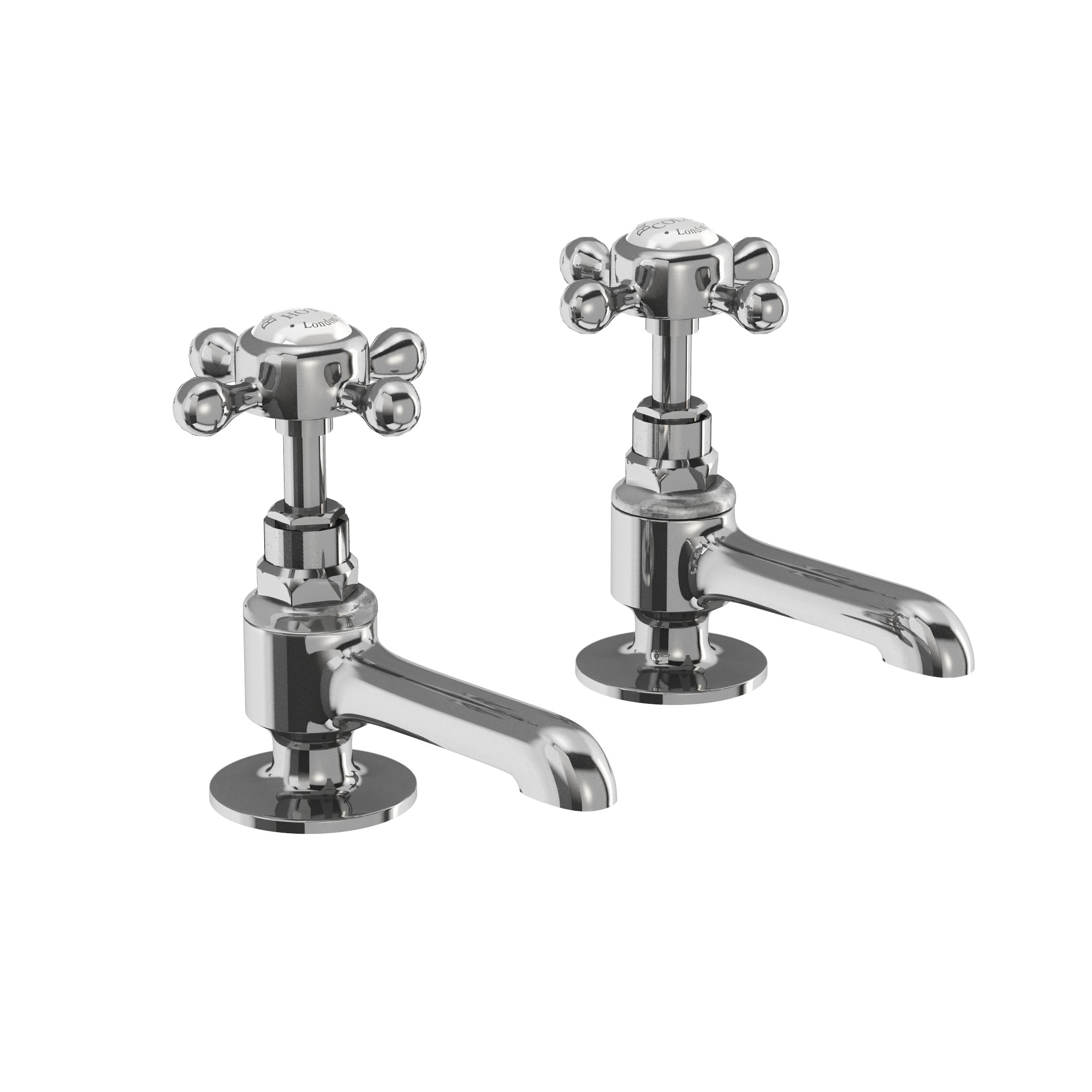

As Shown
| STA12_QT Stafford quarter turn long nose basin pillar taps (including the handles) |
Material
| STA12_QT - tap - Brass |
Nett Weight
| STA12_QT - tap - 1.06kg |
Gross Weight Including Packaging
| STA12_QT - tap - 1.15kg |
Packed Dimension
| STA12_QT - 255 x 235 x 80 = 0.0048 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
No flow strengthener or aerator are included. |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout | n/a | 27.36 | 32.98 | 43.77 | 50.25 | 56.73 | n/a |
| SP78 | 1, 2 quarter turn COLD cartridge for T12-QT, STA11QT, STA12QT |
| SP77 | 1, 2 quarter turn HOT cartridge for T12-QT, STA11QT, STA12QT |
| SP91 | G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP1133 | the back nut for STA12, STA12-QT |
Downloads
-
2D CAD-File - DWG -
STA12-QT
(STA12-QT.dwg)
-

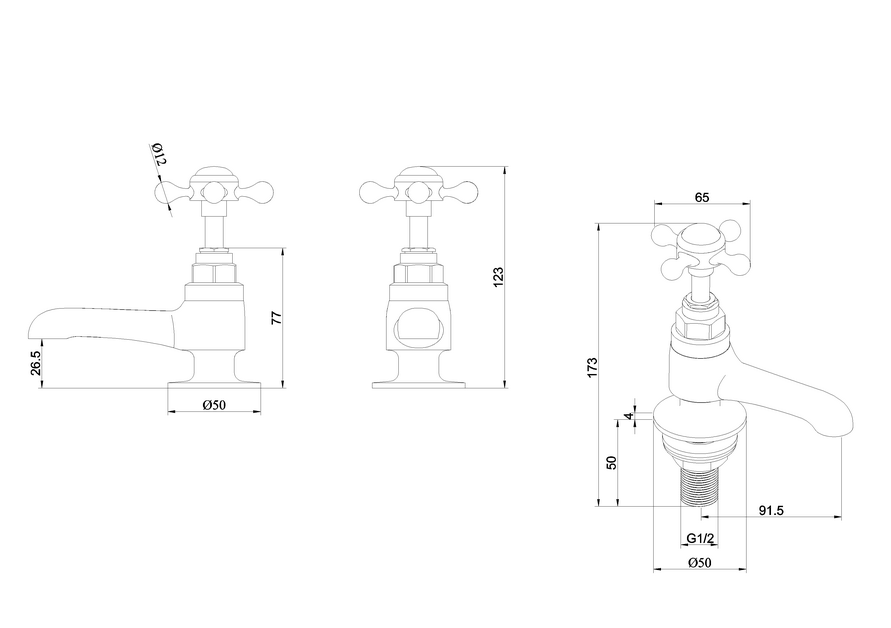

2D Drawing - PDF -
STA12-QT
(STA12-QT.pdf)
2D Drawing - PDF - STA12-QT
-
3D DWG - File - DWG
-
STA12-QT
(ST12 2013 05 03.dwg)
-
3D DXF - File - DXF
-
STA12-QT
(ST12 2013 05 03.dxf)
-
3D IGS - File - IGS
-
STA12-QT
(ST12 2013 05 03.igs)
-
3D RFA BIMM Objects - File - RFA
-
STA12-QT
(STA12.rfa)
