Stafford Bath Shower Mixer deck mounted
Product Options
Quarter turn options
quarter turn
|
tradional screw-down
|

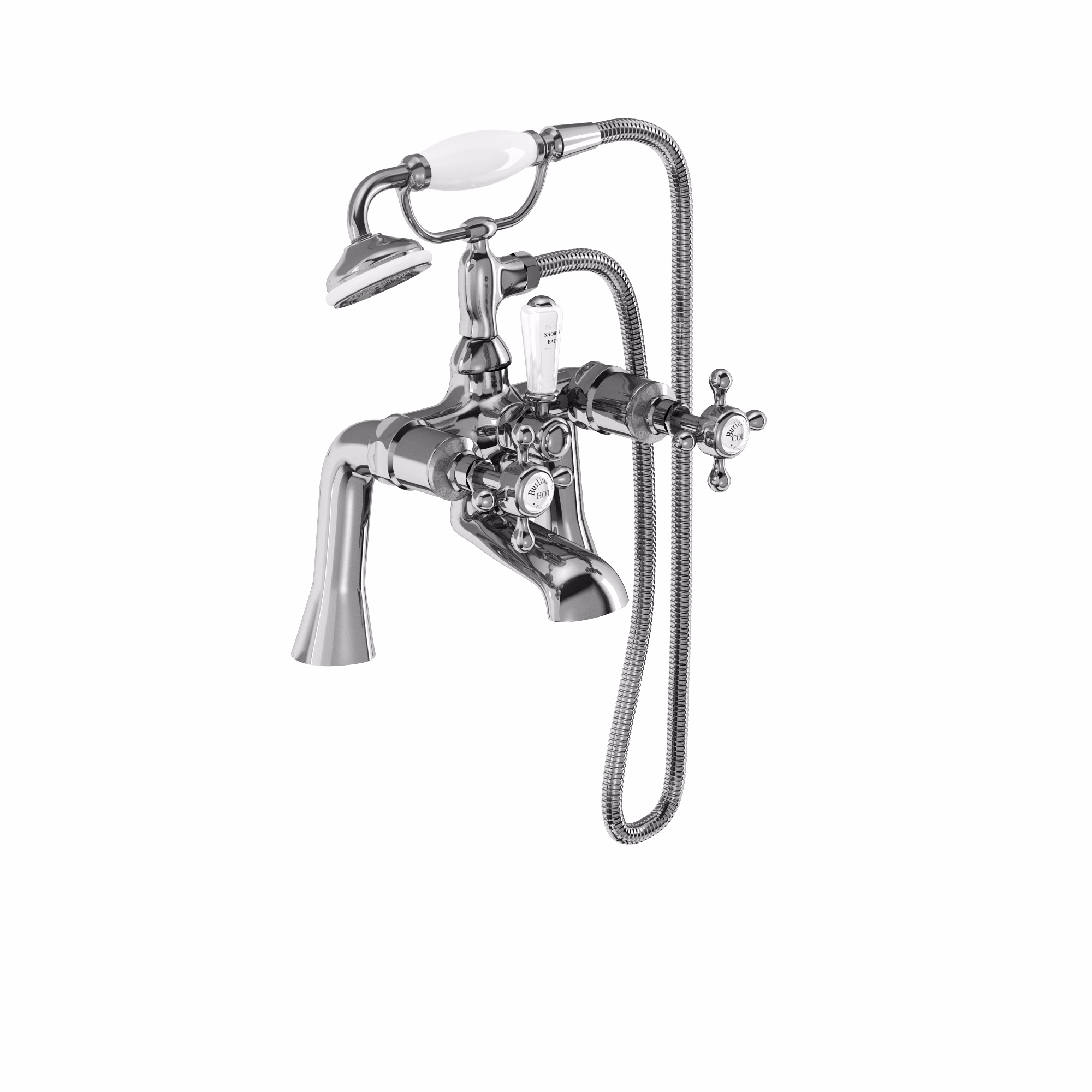

As Shown
| STA14_QT Stafford quarter turn bath deck mounted shower mixer(including the handles) |
Material
| STA14_QT - tap - Brass |
Nett Weight
| STA14_QT - tap - 3.65kg |
Gross Weight Including Packaging
| STA14_QT - tap - 4.1kg |
Packed Dimension
| STA14_QT - 355 x 240 x 210 = 0.0179 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
No flow strengthener or aerator are included. |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Handset | n/a | n/a | 14.46 | 20.67 | 21.75 | 24.45 | 27.9 |
| Spout | n/a | 26.43 | 30.81 | 42.18 | 50.37 | 58.29 | n/a |
| SP70 | 3, 4 quarter turn COLD cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT |
| SP69 | 3, 4 quarter turn HOT cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT |
| V26 | burlington Shower hose 1500mm |
| SP1215 | cold valve pillar for STA14, STA14-QT |
| SP430 | diverter handle for STA14, STA14-QT |
| SP1363 | fixing nut of STA14, STA14-QT diverter |
| SP637 | handset holder of STA14, STA14-QT |
| SP1214 | hot valve pillar for STA14, STA14-QT |
| SP1295 | one pair of legs for STA14, STA14-QT |
| SP541 | rubber washer between pillar and pillar nut used for stafford taps STA14, STA14-QT |
| SP373 | stafford BSM Diverter mechanism for STA14, STA14-QT |
| SP374 | stafford BSM Handset only for STA14, STA14-QT |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP544 | white rubber ring of handset for STA14, STA14-QT |
Downloads
-
2D CAD-File - DWG -
STA14-QT
(STA14-QT.dwg)
-

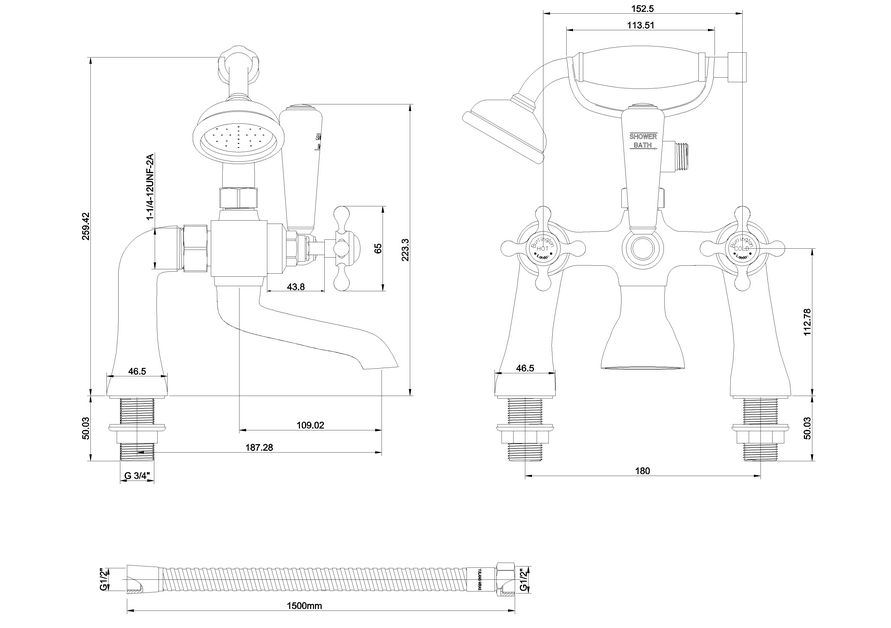

2D Drawing - PDF -
STA14-QT
(STA14-QT.pdf)
2D Drawing - PDF - STA14-QT
-
3D DWG - File - DWG
-
STA14-QT
(STA14 updated.dwg)
-
3D DXF - File - DXF
-
STA14-QT
(STA14 updated.dxf)
-
3D IGS - File - IGS
-
STA14-QT
(STA14 updated.igs)
-
3D RFA BIMM Objects - File - RFA
-
STA14-QT
(STA14.rfa)
