Burlington T27 mono basin mixer chrome
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options

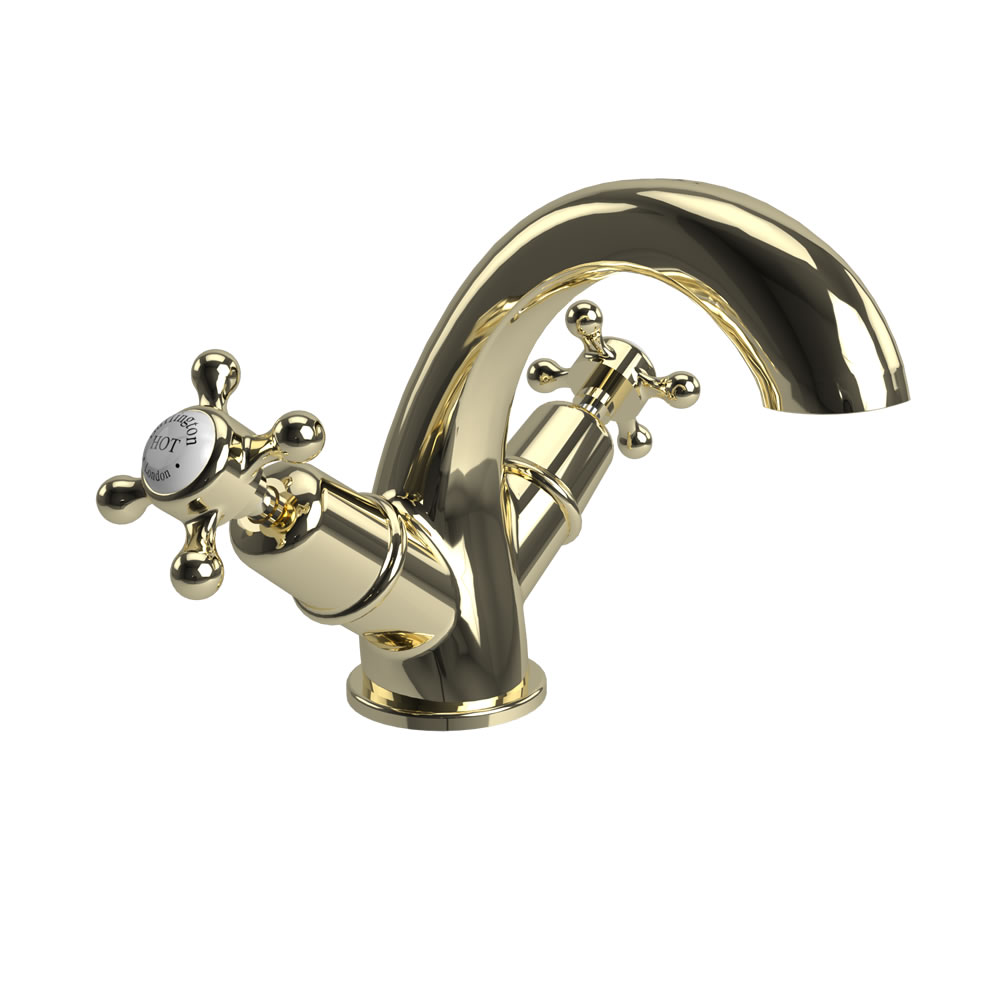

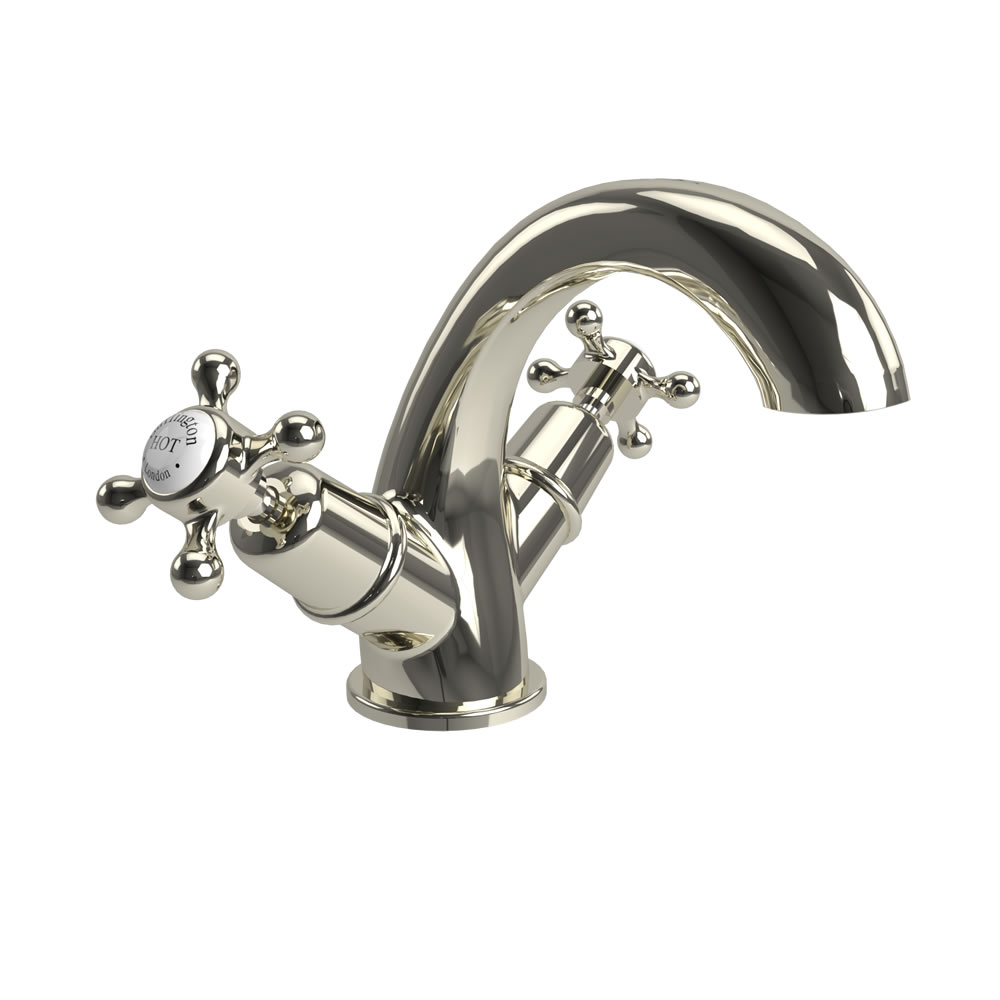

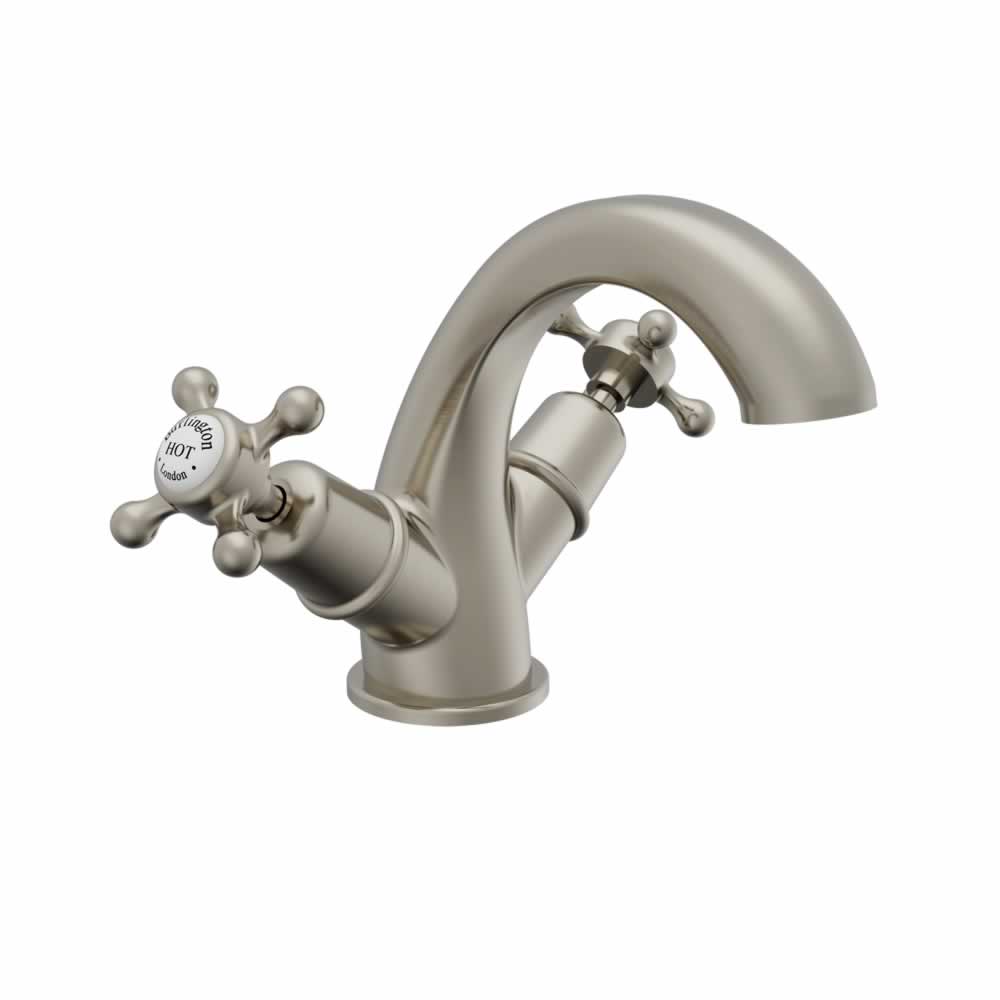

T27-QT T1 Chrome T27-QT GOLD T1 GOLD Gold T27-QT NKL T1 NKL Nickel Burlington T27 mono basin mixer brushed nickel Brushed Nickel
Tap Head Options (Chrome Finish Shown)
Ceramic Tap Hand_T1_PAGE63_PAGE65.jpg Claremont T27-QT T2 Anglesey T27-QT T3 Birkenhead T27-QT T4 Kensington
Indicies & lever finish

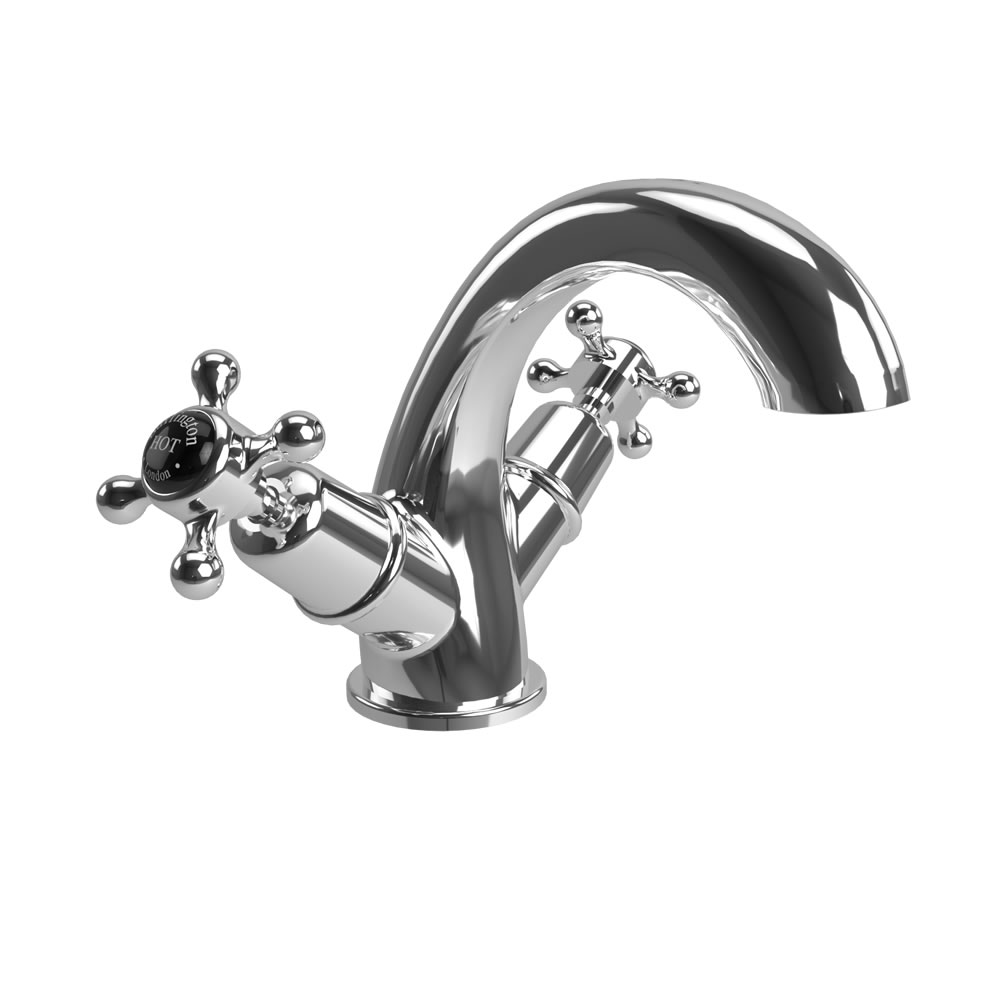

T27-QT T1 White T27-QT T1 BLA Black
Alternate Text
As Shown
T27_QT Burlington T27 Mono Basin Mixer Chrome
T1 Claremont tap handles
CL45-QT  -  Combined product code
Colour
T27_QT - tap - Polished Chrome
T1 - tap handle - Polished Chrome
Material
T27_QT - tap - Brass
T1 - tap handle - Brass
Size
T27_QT - 160 x 155 x 145mm
T1 - 65 x 65 x 28mm
Nett Weight
T27_QT - tap - 1.285kg
T1 - tap handle - 0.15kg
Gross Weight Including Packaging
T27_QT - tap - 1.62kg
T1 - tap handle - 0.17kg
Packed Dimension
T27_QT - 215 x 170 x 130 = 0.0048 m3
T1 - 60 x 60 x 62 = 0.0002 m3
Guarantee
Standards Information
BS EN 817:2008
BS EN 200:2008
Additional Information
Supplied with flow straighter - this is for use with low water pressure
Supplied with aerator - this is for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) n/a  30.87  37  42  50  n/a  n/a
Spout (aerator) n/a  9.63  15.75  21.06  22.44  25.47  28.02
SP70 3, 4 quarter turn COLD cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT
SP69 3, 4 quarter turn HOT cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT
SP162 aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548 aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1550 chrome finish Base plate including rubber gasket for T27-QT
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP1553 clamping sets for all finishes products of T27-QT
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547 flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP655 pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP1549 rubber gasket for base plate for all finishes products of T27-QT
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
Downloads
  • Instructions - PDF - T27_QT (English)
  • Instructions - PDF - T27_QT (French)
  • 3D RFA BIMM Objects - File - RFA  -  CL45-QT (CL45-QT.rfa)
  • 3D IGS - File - IGS - T1 (T1.igs)
  • 3D IGS - File - IGS - T27_QT (T27-QT.igs)
  • Lifestyle image 1 - tiff
    jpg
  • Lifestyle image 2 - tiff pending.
  • Product image 1 - jpg

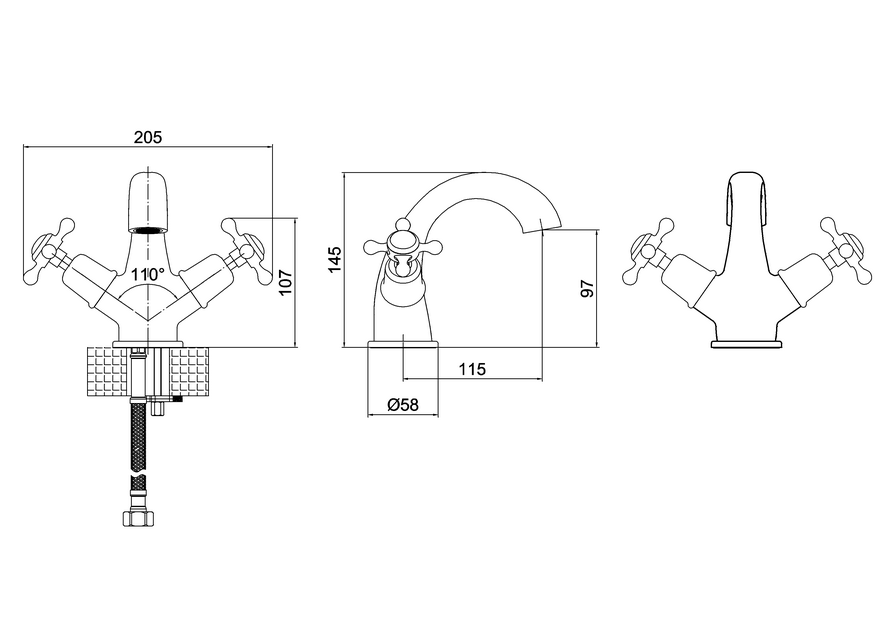

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
