Hoxton thermostatic shower valve body chrome

asaq2.Model.Web_product_new?.web_name

Product Options

finish options

Hoxton thermostatic shower valve body chrome

Chrome

Hoxton thermostatic shower valve body matt black

Matt Black

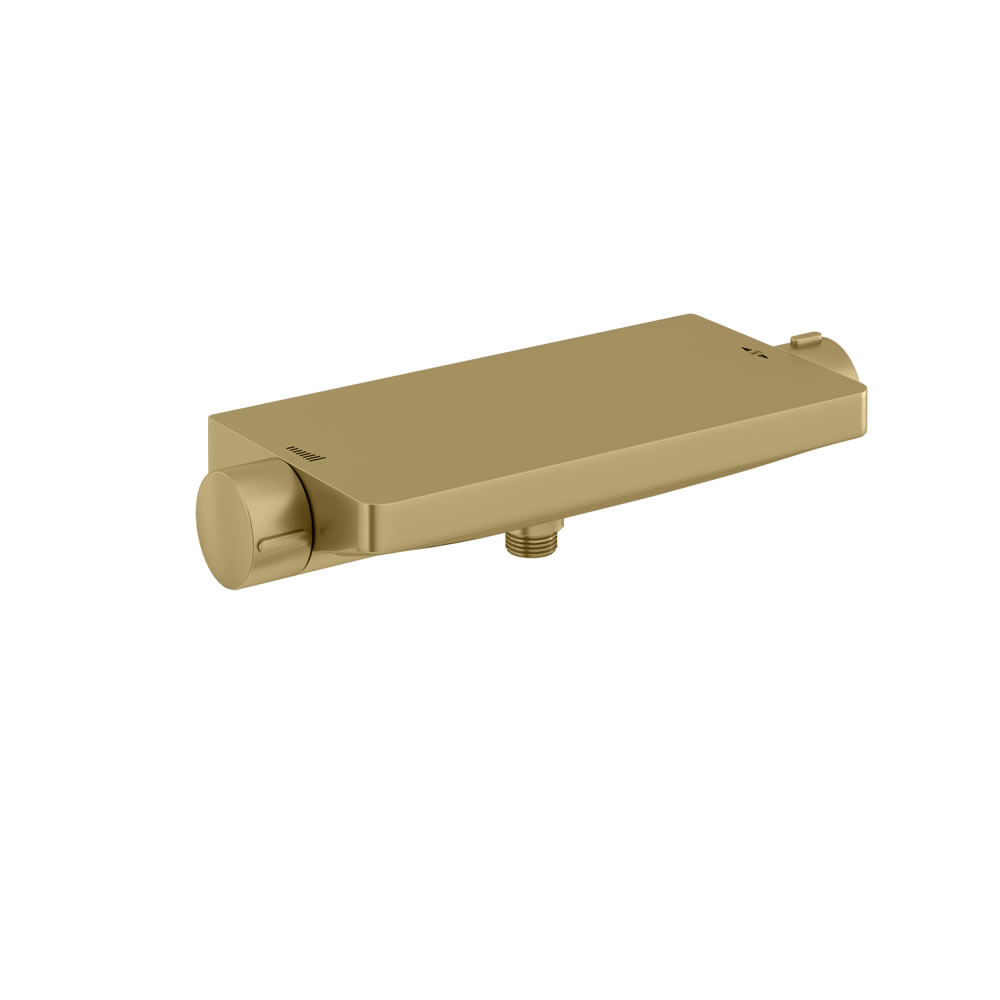

Hoxton thermostatic shower valve body brushed brass

Brushed brass

Alternate Text

As Shown

HOX.052CP Hoxton thermostatic shower valve body Chrome

Colour

HOX.052CP - valve - Polished Chrome

Material

HOX.052CP - valve - Brass

Size

HOX.052CP - 132 x 288 x 66mm

Nett Weight

HOX.052CP - valve - 2.64kg

Gross Weight Including Packaging

HOX.052CP - valve - 2.84kg

Packed Dimension

HOX.052CP - 320 x 200 x 75 = 0.0048 m3

Guarantee

Standards Information

BS EN 1111:2017

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Valve	3.2	7.8	11.8	16.3	19.6	n/a	25.8

SP1559	check valve for HOX.052 all finishes
SP1560	chrome finish flow control handle for HOX.052CP
SP1563	chrome finish thermostatic handle for HOX.052CP
SP1557	flow control cartridge for HOX.052 all finishes
SP1558	thermostatic cartridge for HOX.052 all finishes

Downloads

Instructions - PDF - HOX.052CP (English)
Instructions - PDF - HOX.052CP (French)

2D CAD-File - DWG - HOX.052CP (HOX.052 shower valve-20210430.dwg)
2D Drawing - PDF - HOX.052CP (HOX.052 shower valve-20210430.pdf) 2D Drawing - PDF - HOX.052CP

3D STP - File - STP - HOX.052CP (HOX052.stp)
3D RFA BIMM Objects - File - RFA - HOX.052CP (HOX.052.rfa)
3D STP - File - STP - HOX.052CP (HOX052.stp)

Lifestyle image 1 - tiff

jpg
Lifestyle image 2 - tiff

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
