Greenwich mono basin mixer chrome
Product Options
finish options
|
Chrome
|
Matt Black
|
Brushed brass
|
As Shown
| GRE110CP Greenwich Mono Basin Mixer Chrome |
Material
| GRE110CP - tap - Brass |
Nett Weight
| GRE110CP - tap - 0.94kg |
Gross Weight Including Packaging
| GRE110CP - tap - 1.14kg |
Packed Dimension
| GRE110CP - 290 x 165 x 75 = 0.0036 m3 |
Guarantee
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with aerator for use with high water pressure. |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (aerator) | 3.1 | 5.02 | 7.1 | 10.1 | 12.1 | n/a | 15.9 |
| SP1572 | aerator for GRE.110, GRE.112, GRE.113 - all finishes |
| SP1580 | chrome finish cartridge cover for GRE.110CP, GRE.112CP |
| SP1574 | chrome finish handle for GRE.110, GRE.112 |
| SP1397 | clamping sets for GRE.110, HOX.001, HOX.002 - all finishes |
| SP1573 | flexible hoses(pair) for GRE.110 all finishes |
| SP1569 | on, off cartridge for GRE.110, GRE.112 - all finishes |
| SP1583 | retaining nut for GRE.110, GRE.112 - all finishes |
Downloads
-
2D CAD-File - DWG -
GRE.110CP
(GRE.110.dwg)
-

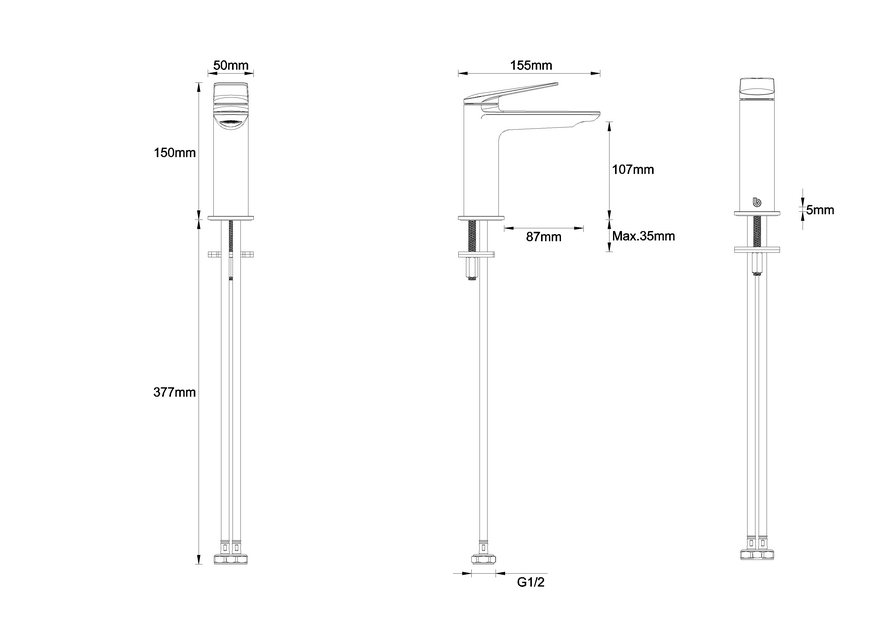

2D Drawing - PDF -
GRE.110CP
(GRE.110.pdf)
2D Drawing - PDF - GRE.110CP
-
3D IGS - File - IGS
-
GRE.110CP
(GRE110.igs)
-
3D RFA BIMM Objects - File - RFA
-
GRE.110CP
(GRE.110.rfa)
-
