Riviera 65cm D shape Basin
Product Options
tap hole options
pedestal options
|
no tap holes
|
1 tap hole
|
2 tap holes
|
3 tap holes
|
|
full pedestal
|
semi pedestal
|
As Shown
| RIV4NTH Riviera 65cm D shape Basin NTH White |
| RIV6 Riviera Full Pedestal White |
Nett Weight
| RIV4NTH - basin - 17kg |
| RIV6 - pedestal - 11.7kg |
Gross Weight Including Packaging
| RIV4NTH - basin - 18.8kg |
| RIV6 - pedestal - 13kg |
Packed Dimension
| RIV4NTH - 500 x 680 x 200 = 0.068 m3 |
| RIV6 - 270 x 730 x 220 = 0.0434 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2006 |
|
BS EN 31:2011 |
Additional Information
|
To order the correct tap hole configuration simply use NTH, 1TH, 2TH or 3TH at the end of the basin product code. |
Downloads
-
2D CAD-File - DWG -
RIV4 NTH RIV6
(RIV4 NTH_RIV6.dwg)
-

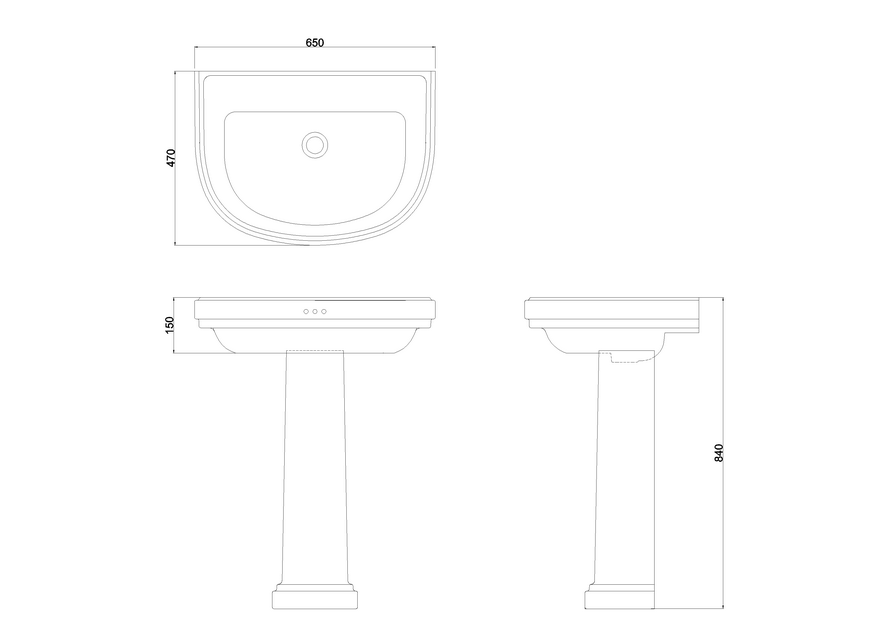

2D Drawing - PDF -
RIV4 NTH RIV6
(RIV4 NTH_RIV6.pdf)
2D Drawing - PDF - RIV4 NTH RIV6
