Riviera Close Coupled Pan Full Back to Wall
Product Options
handle options

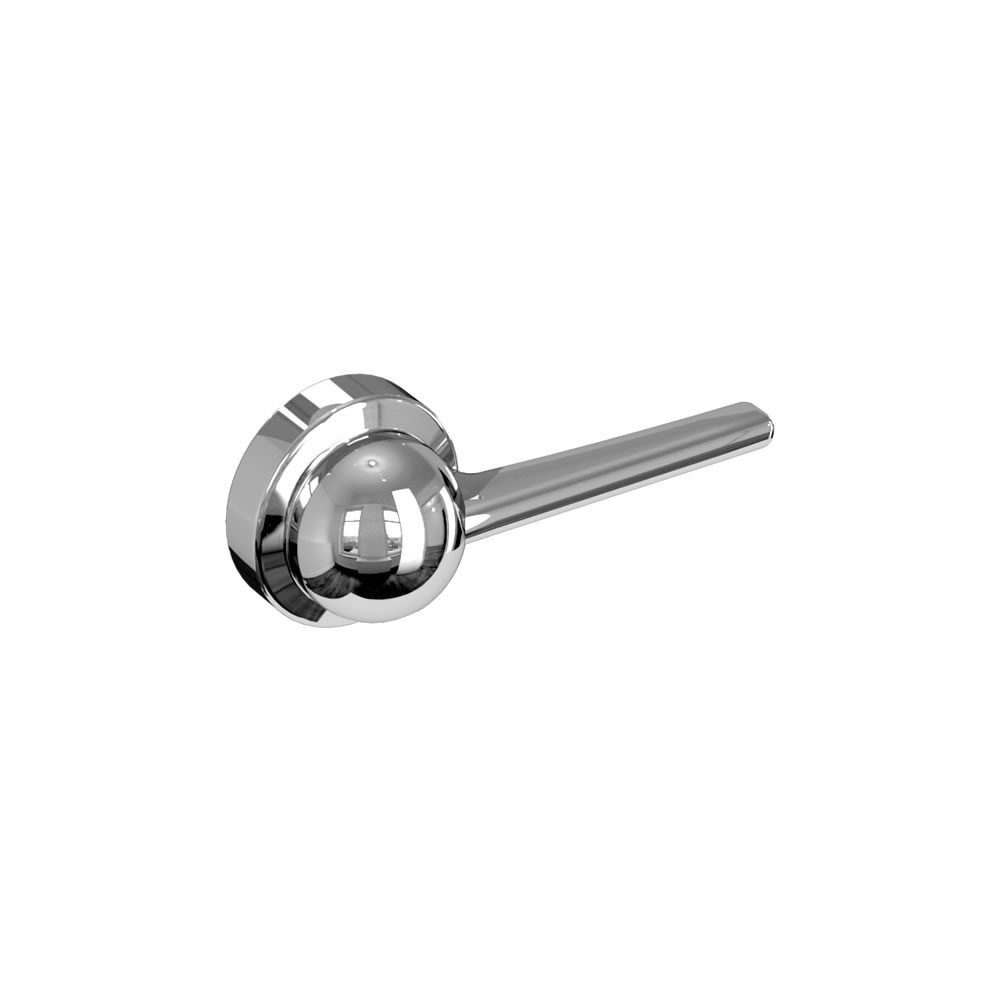

chrome
|

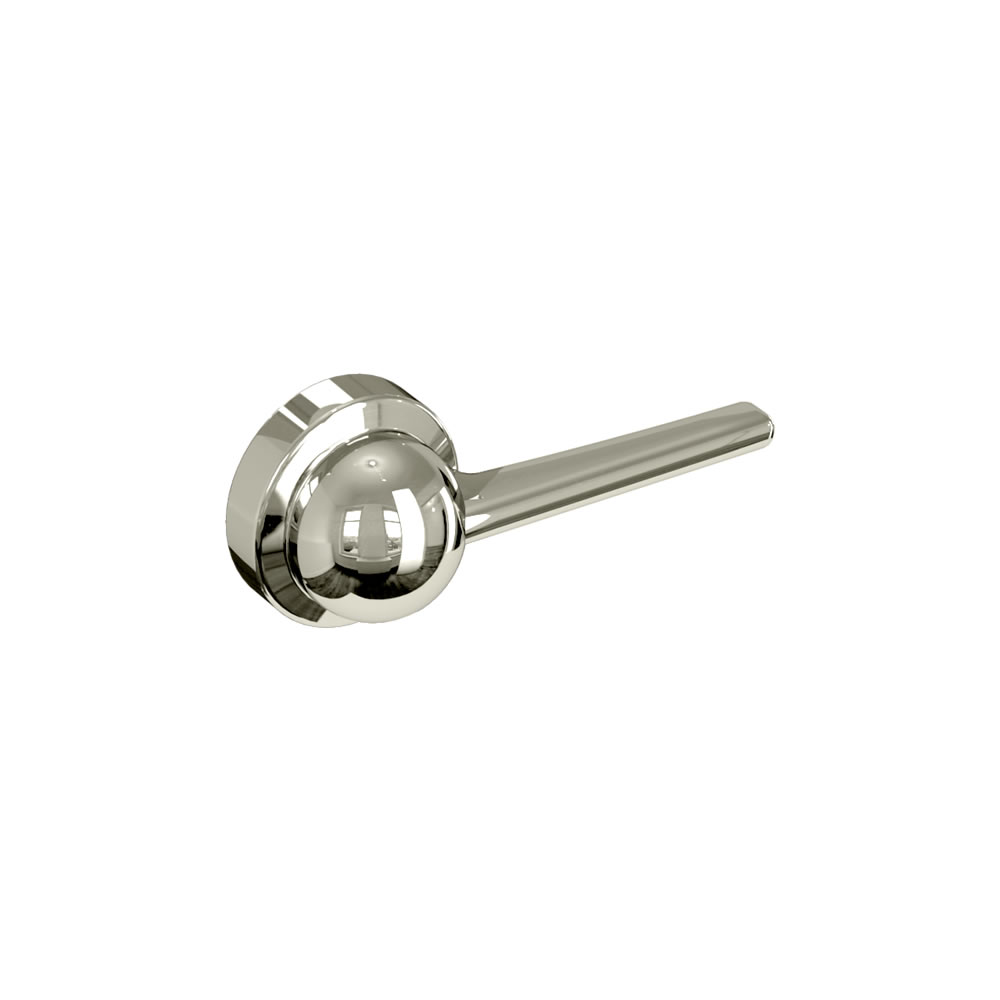

nickel
|

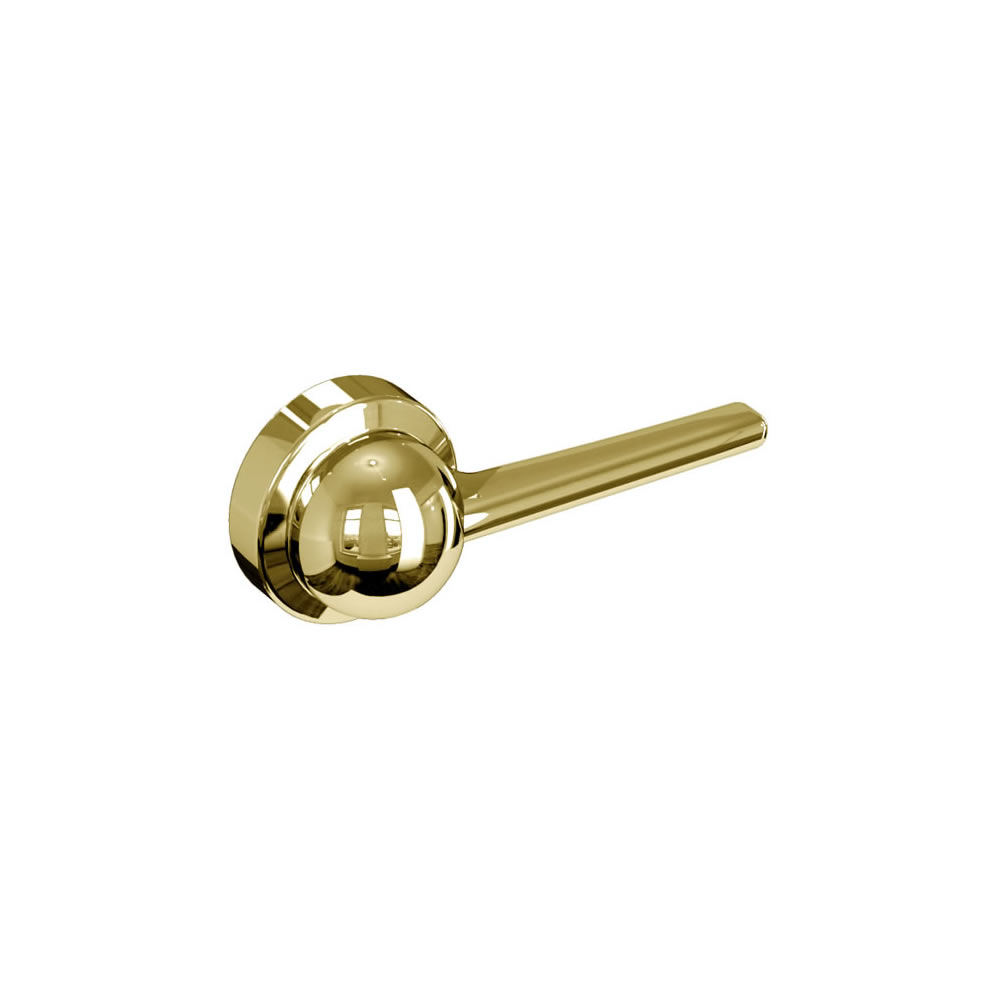

gold
|
As Shown
| RIV10 Riviera Close Coupled Pan Full BTW White |
| RIV11 Riviera Close Coupled Cistern incl. fittings White |
Nett Weight
| RIV10 - pan - 33kg |
| RIV11 - cistern - 12.8kg |
Gross Weight Including Packaging
| RIV10 - pan - 35.5kg |
| RIV11 - cistern - 13.8kg |
Packed Dimension
| RIV10 - 395 x 700 x 480 = 0.1327 m3 |
| RIV11 - 185 x 420 x 470 = 0.0365 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 997:2012 |
| A69CHR | arcade, Riviera cistern lever & caps of floor fixing – chrome |
Downloads
-
2D CAD-File - DWG -
RIV10 RIV11 C
(RIV10_RIV11.dwg)
-

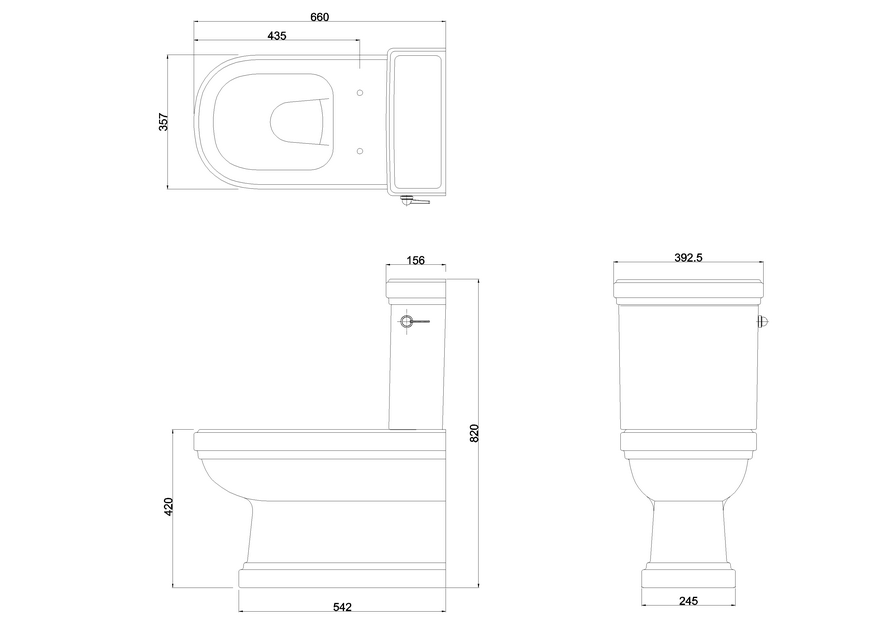

2D Drawing - PDF -
RIV10 RIV11 C
(RIV10_RIV11.pdf)
2D Drawing - PDF - RIV10 RIV11 C
