Riviera Shower valve with fixed shower head & shower hose
Product Options
Finish Options
|
Chrome
|
Gold
|
As Shown
| HOX006V Concealed Valve without Diverter |
| RIV2_CHR Riviera 1000 shower plate and handles Chrome |
| RIV20CHR Riviera handset & hose & elbow Chrome |
| R3S CHR - Combined product code |
Colour
| HOX006V - valve - No Finish |
| RIV2_CHR - tap - Polished Chrome |
| RIV20CHR - fittings - Polished Chrome |
Gross Weight Including Packaging
| HOX006V - valve - 1.2kg |
| RIV2_CHR - tap - 3.7kg |
| RIV20CHR - fittings - 1.62kg |
Packed Dimension
| HOX006V - 155 x 115 x 140 = 0.0025 m3 |
| RIV2_CHR - 235 x 285 x 72 = 0.0048 m3 |
| RIV20CHR - 365 x 285 x 85 = 0.0088 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 1111:2017 |
Additional Information
|
Wall outlet, and 1750mm length shower hose |
|
Adjustable wall bracket, and handset with brass handle |
|
Hot & cold inlet 3/4 female thread |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Handset | n/a | 8.55 | 9.57 | 11.51 | 13.25 | 15.04 | 16.36 |
| SP1666 | 1750mm shower hose in Chrome finish for RIV20 CHR |
| SP1495 | arcade handset without logo Chrome |
| SP315 | hent F2 flow control cartridge |
| SP1486 | metal blocks parts for HOX.006V, HOX.005V, V50, V51, V52 |
| V30 | outlet elbow 1, 2 |
| SP853 | plastic ring for product V50, V51, V52, HOX.005V, HOX.006V (piece) |
| SP959 | retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64 |
| V18 | shower hook (for wall mounting of telephone shower head) |
| SP314 | VQT1 temperature control cartridge |
Downloads
- Instructions - PDF - HOX006V (English)
- Instructions - PDF - RIV2_CHR (English)
- Instructions - PDF - RIV20CHR (English)
- Instructions - PDF - RIV2_CHR (French)
- Instructions - PDF - HOX006V (French)
- Instructions - PDF - RIV20CHR (French)
-
2D CAD-File - DWG -
R3S CHR
(R3S_DD.dwg)
-

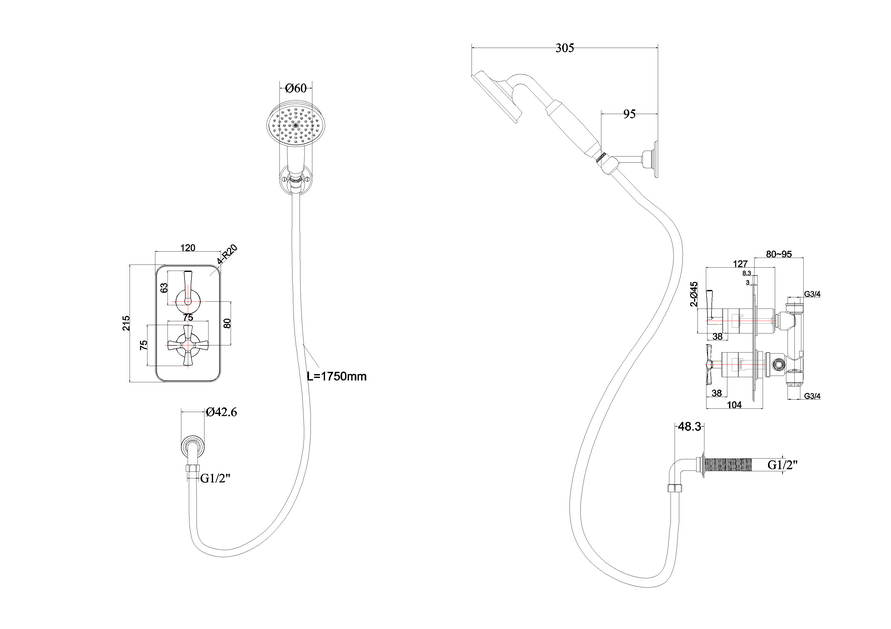

2D Drawing - PDF -
R3S CHR
(R3S_DD.pdf)
2D Drawing - PDF - R3SCHR
-
3D RFA BIMM Objects - File - RFA
-
R3S CHR
(R3SCHR.rfa)
- 3D IGS - File - IGS - HOX006V (HOX.006.igs)
- 3D IGS - File - IGS - RIV2_CHR (RIV2.igs)
- 3D IGS - File - IGS - RIV20CHR (RIV20.igs)
-
