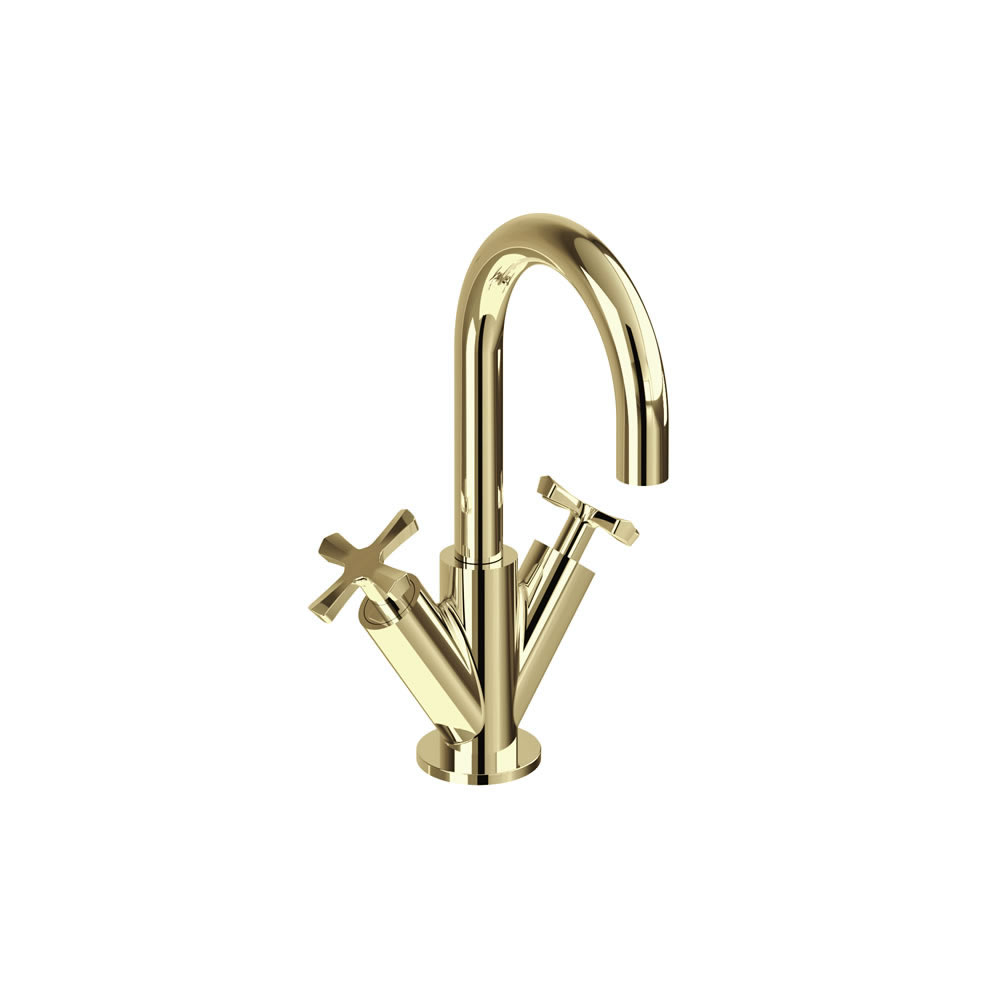

Riviera Mono Basin Mixer
Product Options
Finish Options
|
Chrome
|
Gold
|
As Shown
| RIV8CHR Riviera Mono Basin Mixer Chrome |
Material
| RIV8CHR - tap - Brass |
Nett Weight
| RIV8CHR - tap - 1.78kg |
Gross Weight Including Packaging
| RIV8CHR - tap - 2kg |
Packed Dimension
| RIV8CHR - 330 x 430 x 200 = 0.0284 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with aerator - this is for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout | 2.39 | 5.34 | 7.87 | 11.52 | 14.25 | 16.53 | 17.98 |
| SP1670 | aerator for RIV1 CHR, RIV1 GOLD, RIV6 CHR, RIV6 GOLD, RIV7 CHR, RIV7 GOLD, RIV8 CHR, RIV8 GOLD |
| SP1674 | clamping sets for RIV8 CHR, RIV8 GOLD |
| SP1671 | flexible hoses for RIV6 CHR, RIV6 GOLD, RIV8 CHR, RIV8 GOLD - pair |
Downloads
-
2D CAD-File - DWG -
RIV8 CHR
(RIV8.dwg)
-

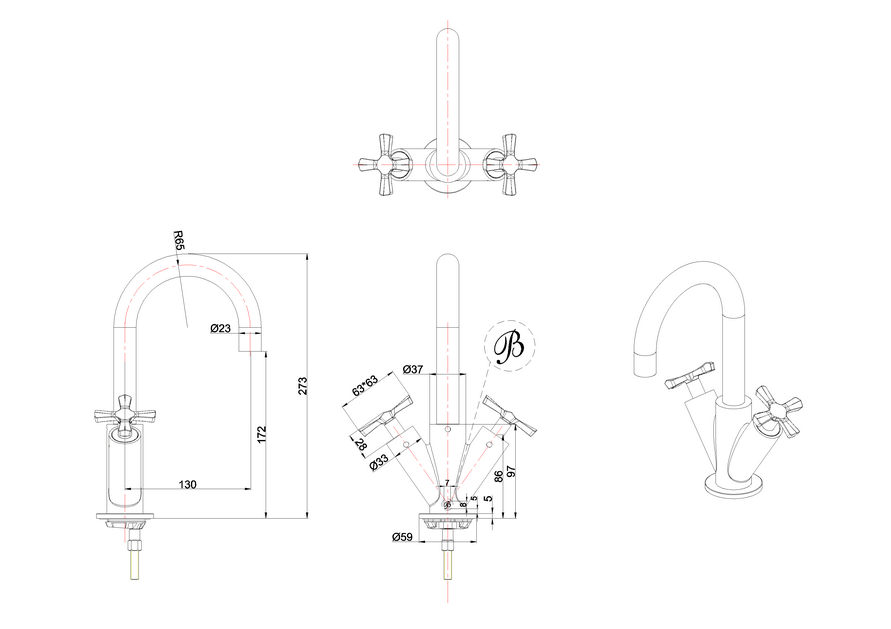

2D Drawing - PDF -
RIV8 CHR
(RIV8.pdf)
2D Drawing - PDF - RIV8 CHR
