Riviera bath/shower mixer
Product Options
Finish Options
Chrome
|
Gold
|
As Shown

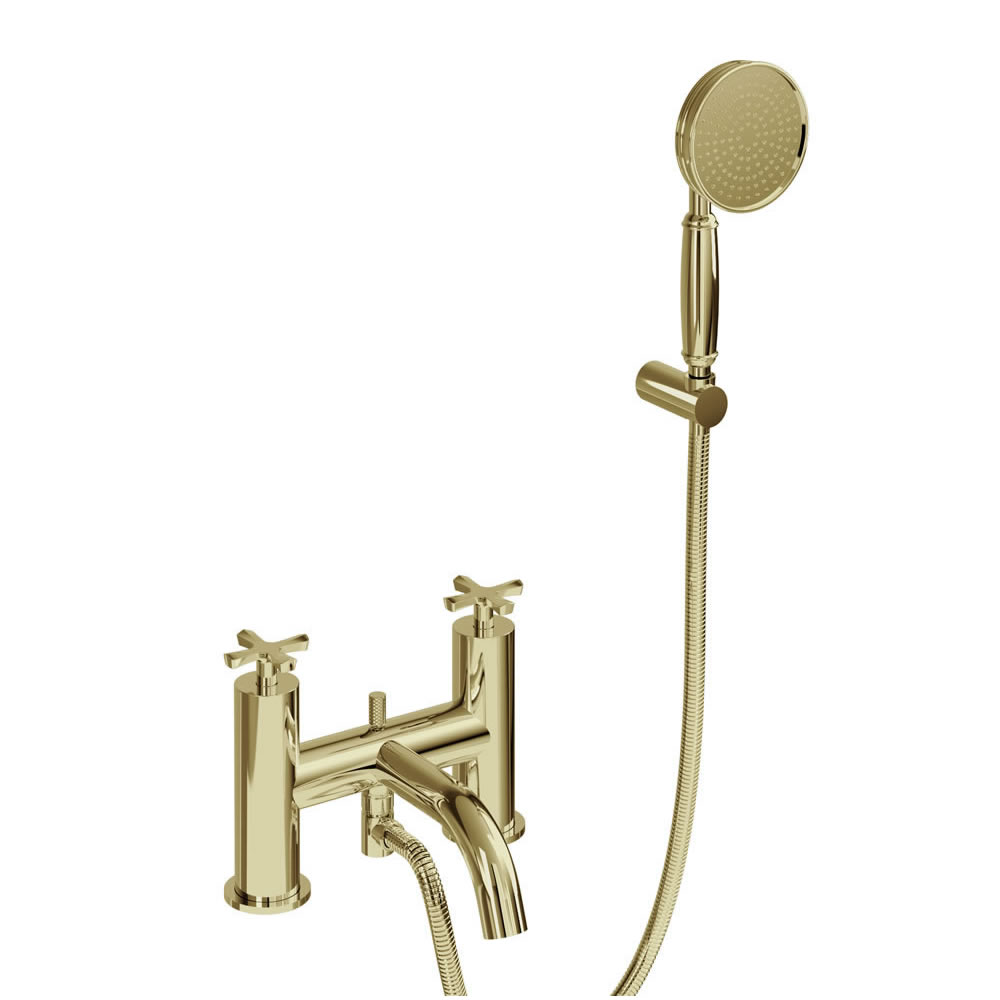

| RIV4 GOLD Riviera bath/shower mixer Gold |
Material
| RIV4 GOLD - tap - Brass |
Nett Weight
| RIV4 GOLD - tap - 4.27kg |
Gross Weight Including Packaging
| RIV4 GOLD - tap - 4.77kg |
Packed Dimension
| RIV4 GOLD - 445 x 605 x 245 = 0.066 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with flow straighter - this is for use with low water pressure |
|
Supplied with aerator - this is for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout | 14.35 | 24.22 | 34.17 | 49.78 | 63.13 | 73.63 | 82.48 |
| Handset | 2.91 | 5.03 | 7.66 | 11.65 | 16.47 | 18.81 | 20.97 |
| SP1718 GOLD | gold finish Riviera tap handle (single piece) for RIV4 GOLD, RIV7 GOLD |
| SP1698 GOLD | handset holder for RIV4 GOLD |
| SP1673 | shower hose 1500mm length in Gold finish for RIV4 GOLD |
Downloads
- 2D CAD-File - DWG - RIV4 GOLD (RIV4.dwg)
-
2D Drawing - PDF -
RIV4 GOLD
(RIV4.pdf)
2D Drawing - PDF - RIV4 GOLD
-
3D IGS - File - IGS
-
RIV4 GOLD
(RIV4.igs)
-
3D RFA BIMM Objects - File - RFA
-
RIV4 GOLD
(RIV4.rfa)
- 3D IGS - File - IGS - RIV4 GOLD (RIV4.igs)
