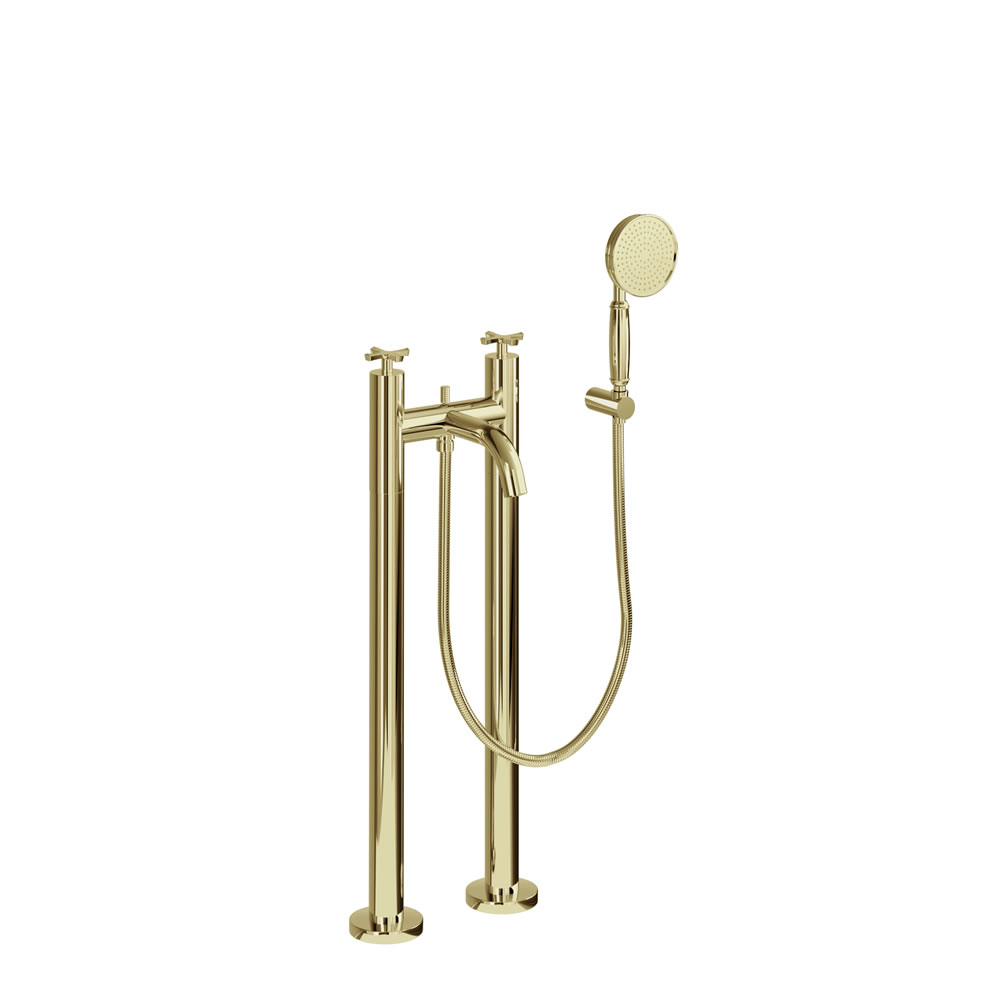

Riviera Bath Shower Mixer with Handset and Hose kit on Riviera Stand Pipes
Product Options
Finish Options
|
Chrome
|
Gold
|
As Shown
| RIV4CHR Riviera bath/shower mixer Chrome |
| RIV15CHR Riviera Stand Pipes in Chrome |
Nett Weight
| RIV4CHR - tap - 4.27kg |
Gross Weight Including Packaging
| RIV4CHR - tap - 4.77kg |
Packed Dimension
| RIV4CHR - 445 x 605 x 245 = 0.066 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
BS EN248:2002 |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 14.35 | 24.22 | 34.17 | 49.78 | 63.13 | 73.63 | 82.48 |
| Handset | 2.91 | 5.03 | 7.66 | 11.65 | 16.47 | 18.81 | 20.97 |
| SP1718CHR | chrome finish Riviera tap handle (single piece) for RIV4 CHR, RIV7 CHR |
| SP1672 | shower hose 1500mm length in Chrome finish for RIV4 CHR |
Downloads
- Instructions - PDF - RIV4CHR (English)
- Instructions - PDF - RIV15CHR (English)
- Instructions - PDF - RIV4CHR (French)
-
2D CAD-File - DWG -
RIV15 CHR-RIV4 CHR
(RIV4_RIV15.dwg)
-

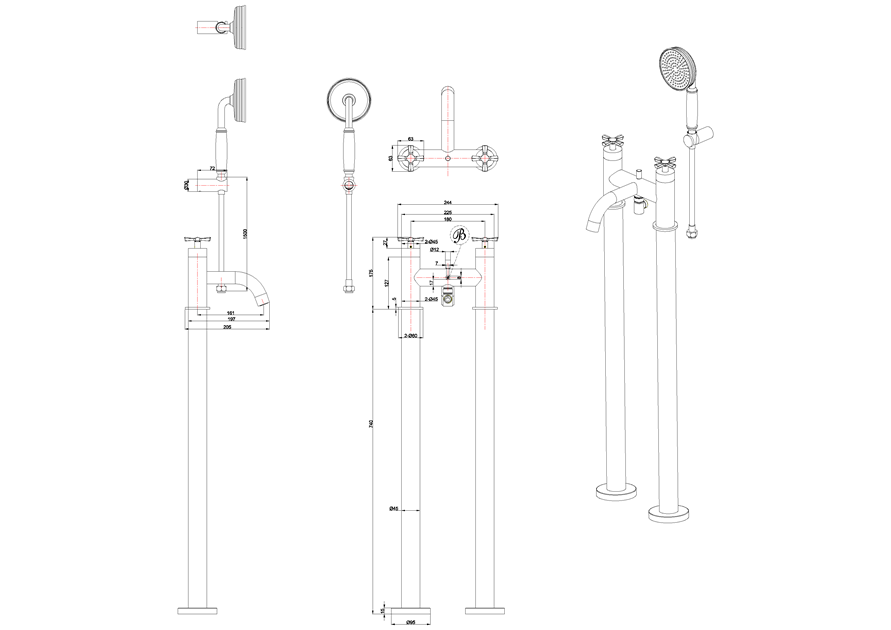

2D Drawing - PDF -
RIV15 CHR-RIV4 CHR
(RIV4_RIV15.pdf)
2D Drawing - PDF - RIV15 CHR-RIV4 CHR
-
3D RFA BIMM Objects - File - RFA
-
RIV15 CHR-RIV4 CHR
(RIV4_RIV15.rfa)
- 3D IGS - File - IGS - RIV4CHR (RIV4.igs)
- 3D IGS - File - IGS - RIV15CHR (RIV15_aa002fc.igs)
