Garrick Urinal With Bracket
As Shown
| U1 Garrick Urinal With Bracket |
Colour
| U1 - urinal - Gloss White |
Material
| U1 - urinal - Vitreous China |
Nett Weight
| U1 - urinal - 12kg |
Gross Weight Including Packaging
| U1 - urinal - 15.5kg |
Packed Dimension
| U1 - 432 x 327 x 525 = 0.0742 m3 |
Guarantee
Standards Information
|
BS EN 80:2001 |
Additional Information
|
Waterless urinal |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP1556 | wall hung brackets for urinals |
| SP1744 | white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals |
Downloads
-
2D CAD-File - DWG -
U1
(U1.dwg)
-

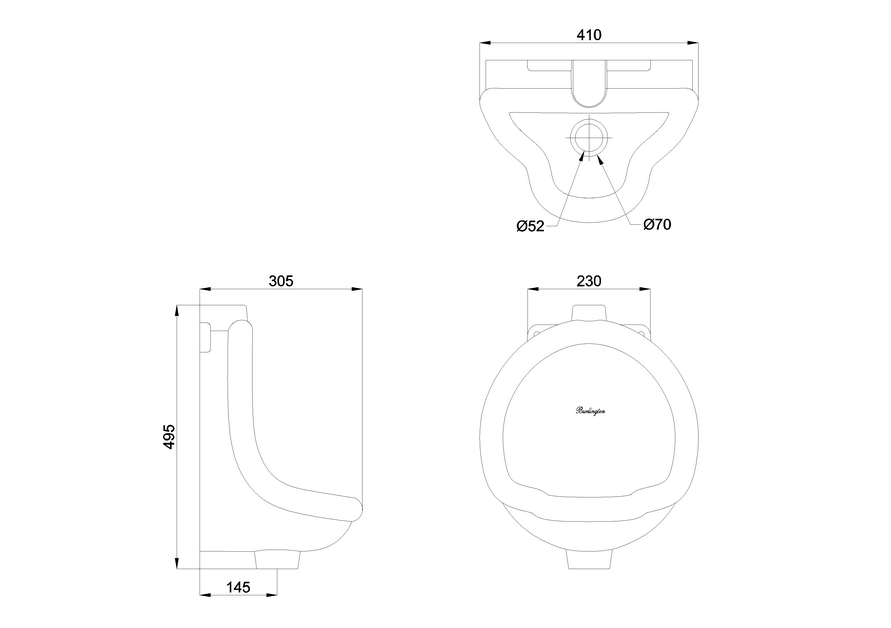

2D Drawing - PDF -
U1
(U1.pdf)
2D Drawing - PDF - U1
-
3D DWG - File - DWG
-
U1
(U1_3D.dwg)
-
3D RFA BIMM Objects - File - RFA
-
U1
(U1.rfa)
-
3D STP - File - STP
-
U1
(U1.stp)
