Chalfont 65cm Single drawer unit
Product Options
finish options
handle finish options
Installation options
Matt Black
|
Matt Grey
|
Matt Blue
|
|
Chrome
|
Nickel
|
Gold
|
|
Without legs
|
Matt Blue legs
|
Chrome legs
|

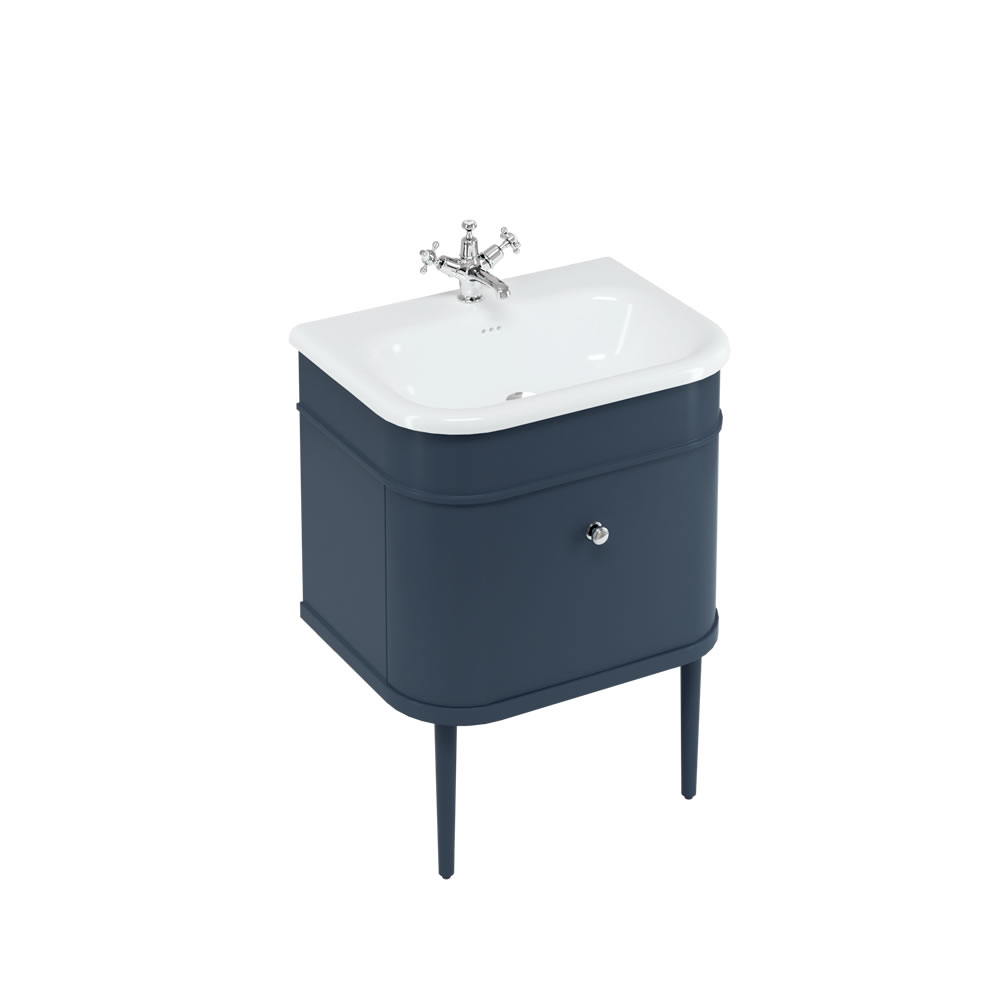

As Shown
| B8E 65x47 roll top basin with overflow |
| CH65B Chalfont 65cm Single drawer unit Matt Blue |
| CHKCHR Chalfont Handle Chrome (single) |
Material
| B8E - basin - Natural Stone |
| CH65B - base unit - Engineered Wood - MDF |
| CHKCHR - accessories - Brass |
Gross Weight Including Packaging
| B8E - basin - 15kg |
| CH65B - base unit - 23.5kg |
| CHKCHR - accessories - 0.12kg |
Packed Dimension
| B8E - 700 x 520 x 200 = 0.0728 m3 |
| CH65B - 685 x 515 x 620 = 0.2187 m3 |
| CHKCHR - 60 x 60 x 100 = 0.0004 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Soft close drawer |
|
Fully assembled |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Handle not included. |
| SP1526 | wall hung bracket for Chalfont units |
Downloads
- Instructions - PDF - B8E (English)
- Instructions - PDF - CH65B (English)
- Instructions - PDF - CH65B (French)
- Instructions - PDF - B8E (French)
-
2D CAD-File - DWG -
CH65B B8E CHKCHR
(CH65 B8E CHKCHR.dwg)
-
2D Drawing - PDF -
CH65B B8E CHKCHR
(CH65 B8E CHKCHR.pdf)
2D Drawing - PDF - CH65B B8E CHKCHR
-
3D DWG - File - DWG
-
CH65B B8E CHKCHR
(3D-CH65-no legs-20221122.dwg)
-
3D RFA BIMM Objects - File - RFA
-
CH65B B8E CHKCHR
(BIM-CH65-no legs-20221122.rfa)
-
