Chalfont 75cm Single drawer unit
Product Options
finish options
handle finish options
Installation options
|
Matt Black
|

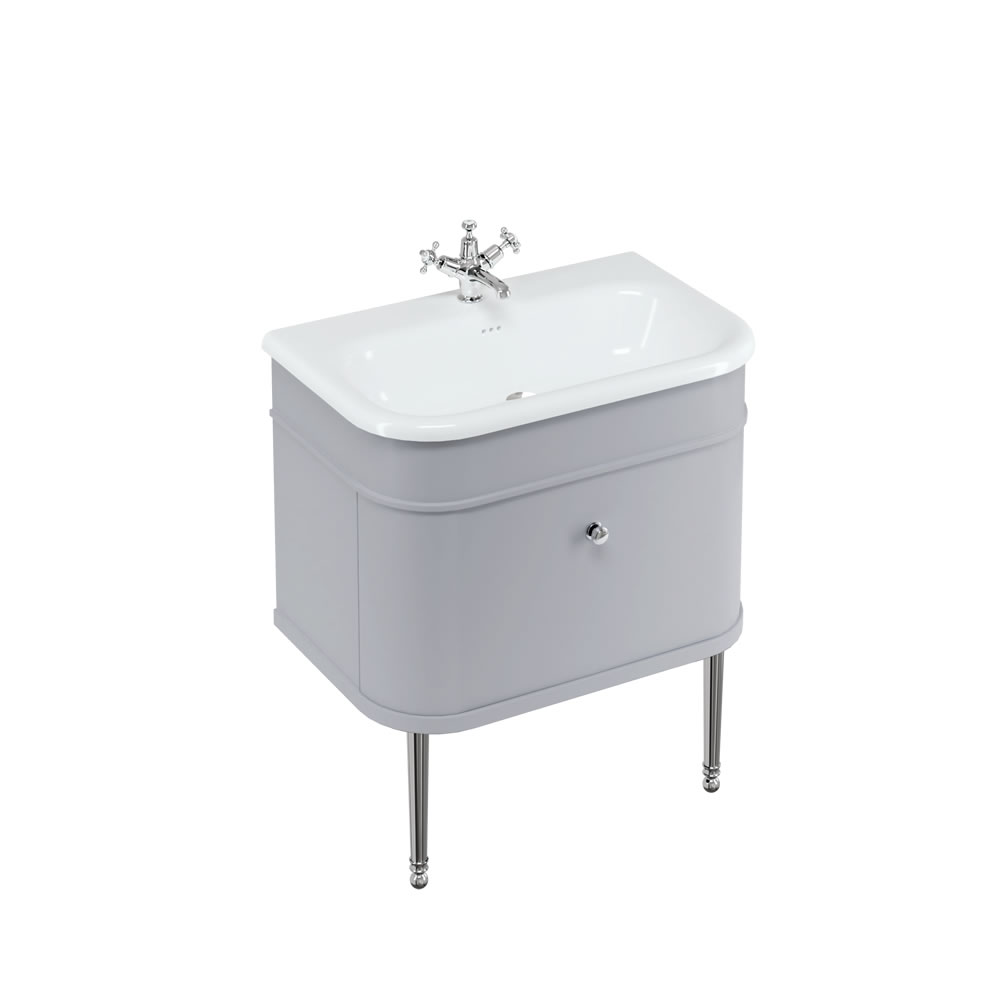

Matt Grey
|

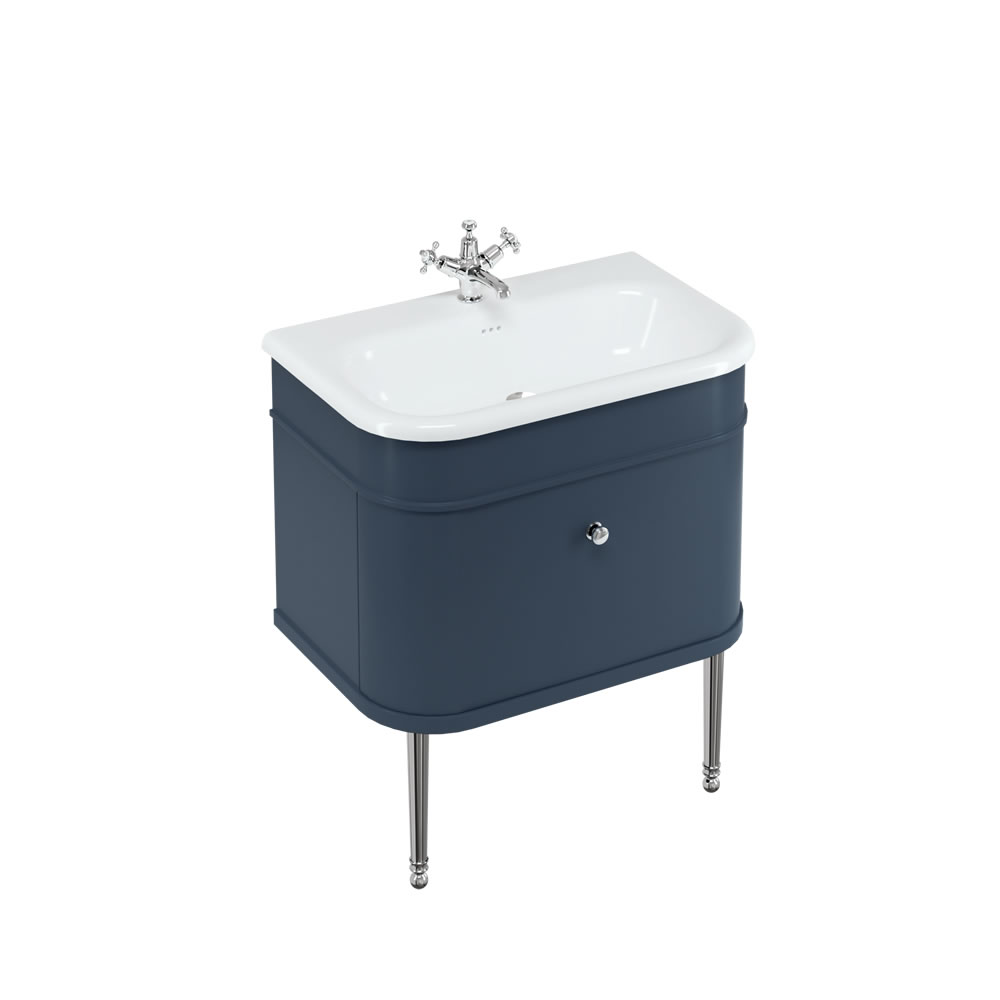

Matt Blue
|
|
Chrome
|
Without legs
|
Matt Black legs
|
Chrome legs
|
As Shown
| B9E 75x47 roll top basin with overflow |
| CH75MB Chalfont 75cm Single drawer unit Matt Black |
| CHKCHR Chalfont Handle Chrome (single) |
| CHLEGCHR Chalfont Legs Chrome (Pair) |
Colour
| B9E - basin - Gloss White |
| CH75MB - base unit - Matt Black |
| CHKCHR - accessories - Polished Chrome |
| CHLEGCHR - accessories - Polished Chrome |
Material
| B9E - basin - Natural Stone |
| CH75MB - base unit - Engineered Wood - MDF |
| CHKCHR - accessories - Brass |
| CHLEGCHR - accessories - Brass |
Size
| B9E - 750 x 470 x 171mm |
| CH75MB - 725 x 458 x 530mm |
| CHKCHR - 30 x 30 x 27mm |
| CHLEGCHR - 70 x 78 x 310mm |
Nett Weight
| B9E - basin - 14.5kg |
| CH75MB - base unit - 23kg |
| CHKCHR - accessories - 0.09kg |
| CHLEGCHR - accessories - 1kg |
Gross Weight Including Packaging
| B9E - basin - 16.5kg |
| CH75MB - base unit - 25kg |
| CHKCHR - accessories - 0.12kg |
| CHLEGCHR - accessories - 1.13kg |
Packed Dimension
| B9E - 800 x 520 x 200 = 0.0832 m3 |
| CH75MB - 785 x 515 x 620 = 0.2507 m3 |
| CHKCHR - 60 x 60 x 100 = 0.0004 m3 |
| CHLEGCHR - 320 x 120 x 75 = 0.0029 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Handle not included. |
|
Soft close drawer |
|
Fully assembled |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
| SP1535 | drawer front panel for CH75MB |
| SP1524 | fixing pack for CH55, CH65, CH75 |
| SP1541 | inner drawer and runners for CH75 |
| SP1526 | wall hung bracket for Chalfont units |
Downloads
- Instructions - PDF - B9E (English)
- Instructions - PDF - CH75MB (English)
- Instructions - PDF - CH75MB (French)
- Instructions - PDF - B9E (French)
-
2D CAD-File - DWG -
CH75MB B9E CHKCHR CHLEGCHR
(CH75 B9E CHKCHR CHLEGCHR.dwg)
-

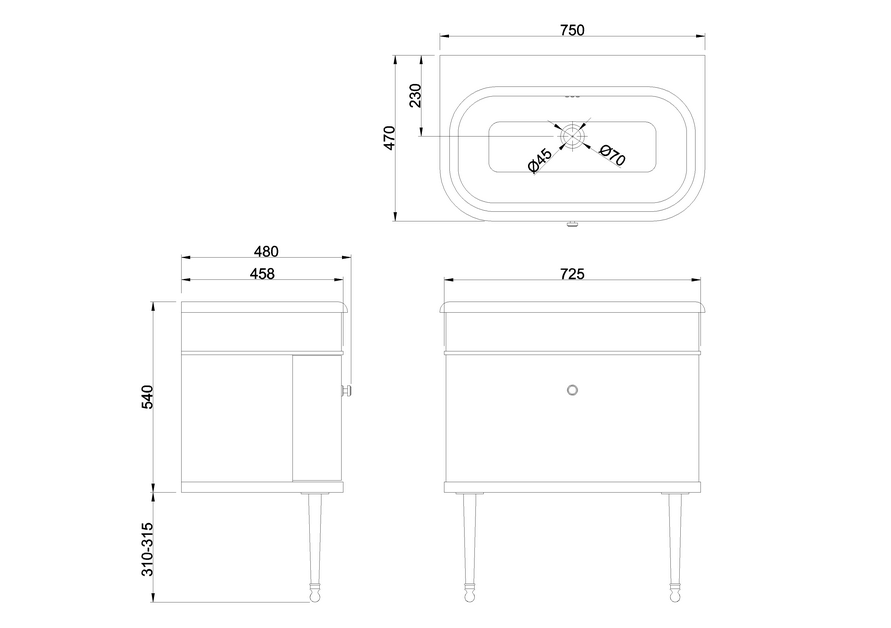

2D Drawing - PDF -
CH75MB B9E CHKCHR CHLEGCHR
(CH75 B9E CHKCHR CHLEGCHR.pdf)
2D Drawing - PDF - CH75MB B9E CHKCHR CHLEGCHR
-
3D DWG - File - DWG
-
CH75MB B9E CHKCHR CHLEGCHR
(3D-CH75-metal legs-20221122.dwg)
-
3D RFA BIMM Objects - File - RFA
-
CH75MB B9E CHKCHR CHLEGCHR
(BIM-CH75-metal legs-20221122.rfa)
