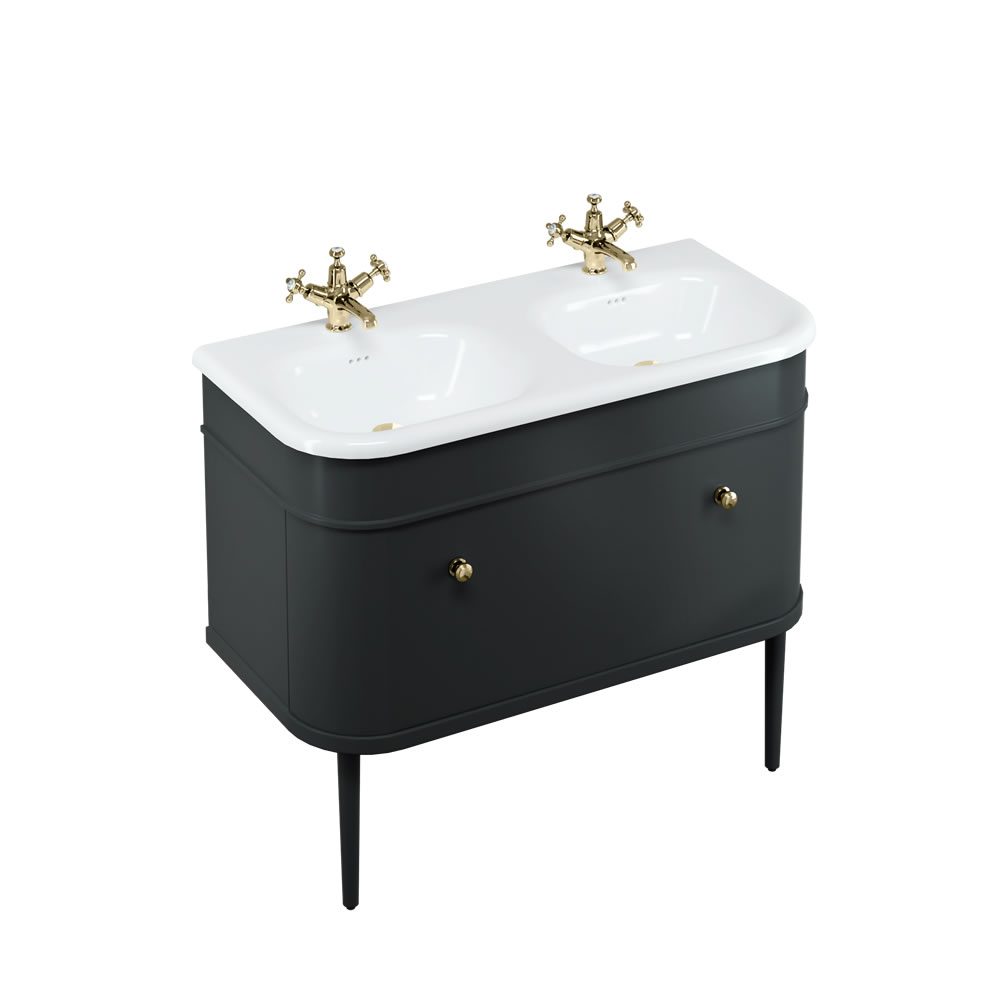

Chalfont 100cm Single drawer unit
Product Options
finish options
handle finish options
Installation options
|
Matt Black
|
|
Chrome
|
Nickel
|
Gold
|
Without legs
|
Matt Black legs
|
Chrome legs
|
As Shown
| B10DE 100x47 double roll top basin with overflow |
| CH100MB Chalfont 100cm Single drawer unit Matt Black |
| CHKCHR Chalfont Handle Chrome (single) |
| CHLEGMB Chalfont Legs Matt Black (Pair) |
Colour
| B10DE - basin - Gloss White |
| CH100MB - base unit - Matt Black |
| CHKCHR - accessories - Polished Chrome |
| CHLEGMB - accessories - Matt Black |
Material
| B10DE - basin - Natural Stone |
| CH100MB - base unit - Engineered Wood - MDF |
| CHKCHR - accessories - Brass |
| CHLEGMB - accessories - Engineered Wood - MDF |
Size
| B10DE - 470 x 1000 x 175mm |
| CH100MB - 975 x 458 x 530mm |
| CHKCHR - 30 x 30 x 27mm |
| CHLEGMB - 35 x 35 x 335mm |
Nett Weight
| B10DE - basin - 16kg |
| CH100MB - base unit - 29kg |
| CHKCHR - accessories - 0.09kg |
| CHLEGMB - accessories - 0.53kg |
Gross Weight Including Packaging
| B10DE - basin - 21.5kg |
| CH100MB - base unit - 31kg |
| CHKCHR - accessories - 0.12kg |
| CHLEGMB - accessories - 0.66kg |
Packed Dimension
| B10DE - 1060 x 530 x 220 = 0.1236 m3 |
| CH100MB - 1035 x 515 x 620 = 0.3305 m3 |
| CHKCHR - 60 x 60 x 100 = 0.0004 m3 |
| CHLEGMB - 320 x 130 x 80 = 0.0033 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Handle not included. |
|
Soft close drawer |
|
Fully assembled |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
| SP1525 | fixing pack for CH100 |
| SP1526 | wall hung bracket for Chalfont units |
Downloads
- Instructions - PDF - B10DE (English)
- Instructions - PDF - CH100MB (English)
- Instructions - PDF - CH100MB (French)
- Instructions - PDF - B10DE (French)
-
2D CAD-File - DWG -
CH100MB B10DE CHKCHR CHLEGMB
(CH100 B10DE CHKCHR CHLEGMB.dwg)
-

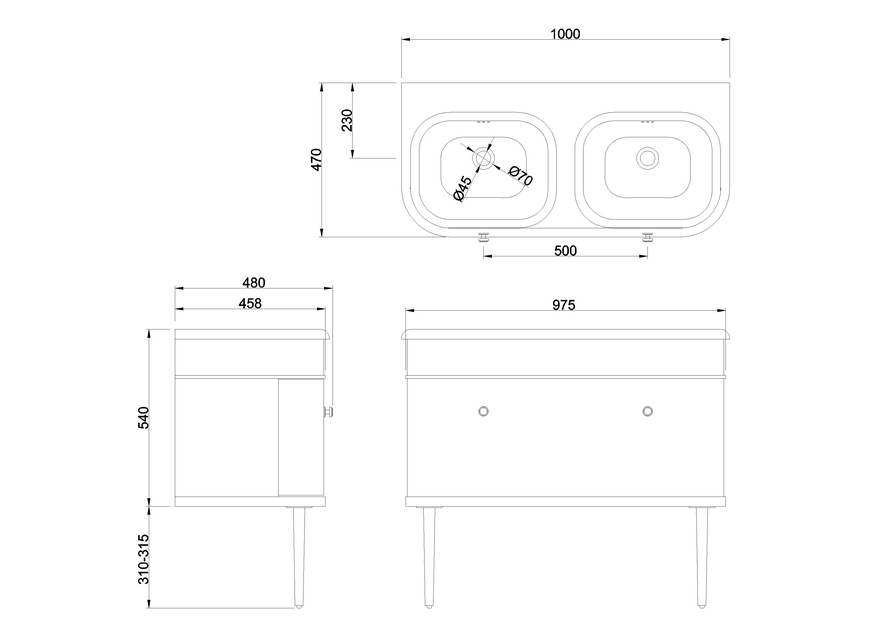

2D Drawing - PDF -
CH100MB B10DE CHKCHR CHLEGMB
(CH100 B10DE CHKCHR CHLEGMB.pdf)
2D Drawing - PDF - CH100MB B10DE CHKCHR CHLEGMB
-
3D DWG - File - DWG
-
CH100MB B10DE CHKCHR CHLEGMB
(3D-CH100-wooden legs-20221122.dwg)
-
3D RFA BIMM Objects - File - RFA
-
CH100MB B10DE CHKCHR CHLEGMB
(BIM-CH100-wooden legs-20221122.rfa)
-
