Front Bath Panel

asaq2.Model.Web_product_new?.web_name

Product Options

Panel size options

Front Bath Panel 1700

1700 mm

Front bath panel 1800

1800 mm

Alternate Text

As Shown

R25FCW Front Bath Panel 1700

Colour

R25FCW - bath panel - Gloss White

Material

R25FCW - bath panel - Acrylic

Size

R25FCW - 40 x 1700 x 540mm

Nett Weight

R25FCW - bath panel - 5.2kg

Gross Weight Including Packaging

R25FCW - bath panel - 5.7kg

Packed Dimension

R25FCW - 1710 x 550 x 45 = 0.0423 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14516:2015+A1:2018

SP379	cleargreen bath panel spares
SP628	set of clips for bath panels (1 set of 8 pieces)

Downloads

Instructions - PDF - R25FCW (English)
Instructions - PDF - R25FCW (French)

2D CAD-File - DWG - R25FCW (R25F.DWG)

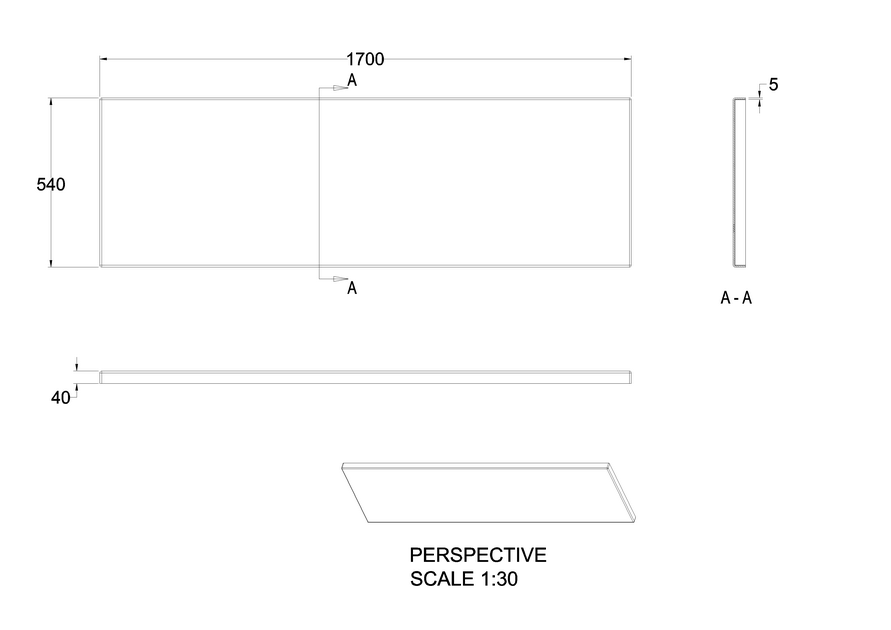

2D Drawing - PDF - R25FCW (R25F.pdf) 2D Drawing - PDF - R25FCW

3D DWG - File - DWG - R25FCW (41405002310.dwg)
3D DXF - File - DXF - R25FCW (41405002310.dxf)
3D IGS - File - IGS - R25FCW (41405002310.igs)
3D RFA BIMM Objects - File - RFA - R25FCW (R25F.rfa)

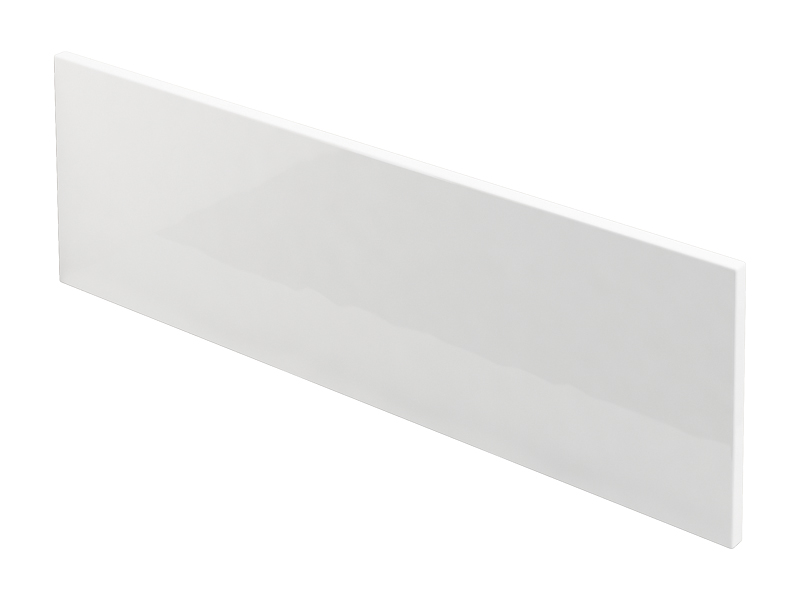

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
