Serene Back to Wall Bath
As Shown
| M4NCW Serene Back to Wall Bath Inner Skin |
| M4BCW Saturn Bath Outer Skin |
Nett Weight
| M4NCW - bath - 27kg |
| M4BCW - Bath surround - 11kg |
Gross Weight Including Packaging
| M4NCW - bath - 27.6kg |
| M4BCW - Bath surround - 11.6kg |
Packed Dimension
| M4NCW - 1705 x 755 x 490 = 0.6308 m3 |
| M4BCW - 1705 x 755 x 595 = 0.7659 m3 |
Bath water capacity
| 131 litres displaced water capacity |
Tap Hole Options
| 0,1,2 (supplied un-drilled) |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow is predrilled |
Compatible Products
| BTW0202C - Bath Click Clack Waste |
| PRO0202M - Bath Click Clack Waste - Matt Black |
| PRO0202F+ - Bath Click Clack Waste - Brushed Brass |
| PRO0202V+ - Bath Click Clack Waste - Brushed Stainless Steel Effect |
| PRI0202M - Bath Click Clack Waste - Carbon Black |
| PRI0202UB - Bath Click Clack Waste - Unlacquered Brushed Brass |
| PRO0351C - Mike Pro bath filler with click clack waste Chrome |
| PRO0360W+ - MPRO Bath Filler with Click Clack Waste - Matt White |
| PRO0355M - Mike Pro bath filler with click clack waste Matt Black |
| PRO0355F+ - MPRO Bath Filler with Click Clack Waste - Brushed Brass |
| PRO0355V - Mike Pro bath filler with click clack waste Brushed Stainless Steel Effect |
| PRO0210W+ - MPRO Bath Clicker Waste Extended Matt White |
| SP698 | leg set for Saturn bath |
| SP628 | set of clips for bath panels (1 set of 8 pieces) |
Downloads
- Instructions - PDF - M4NCW (English)
- Instructions - PDF - M4BCW (English)
- Instructions - PDF - M4BCW (French)
-
2D CAD-File - DWG -
M4NCW
(M4_LD.dwg)
-

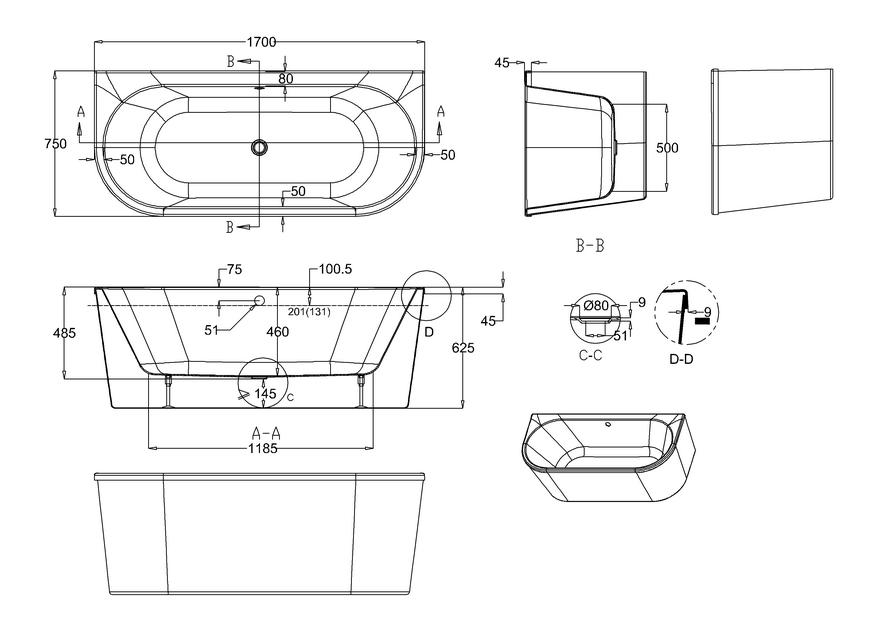

2D Drawing - PDF -
M4NCW
(M4_LD.pdf)
2D Drawing - PDF - M4NCW
-
3D DWG - File - DWG
-
M4NCW
(3281.dwg)
-
3D DXF - File - DXF
-
M4NCW
(3281.dxf)
-
3D IGS - File - IGS
-
M4NCW
(3281.igs)
-
3D RFA BIMM Objects - File - RFA
-
M4NCW
(3281.rfa)
-

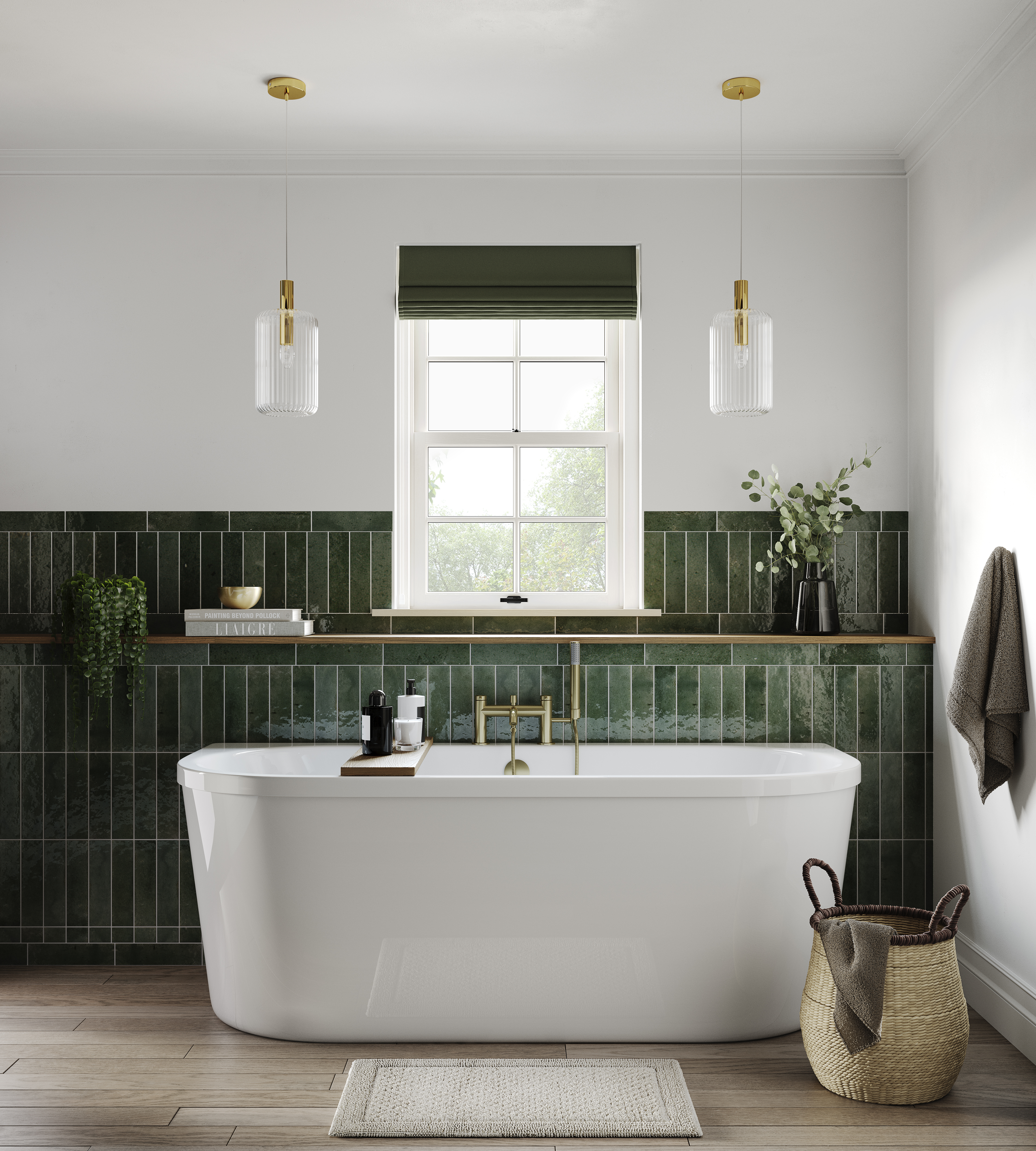

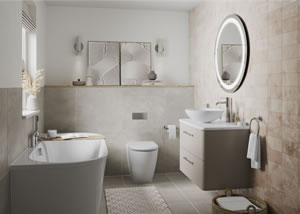

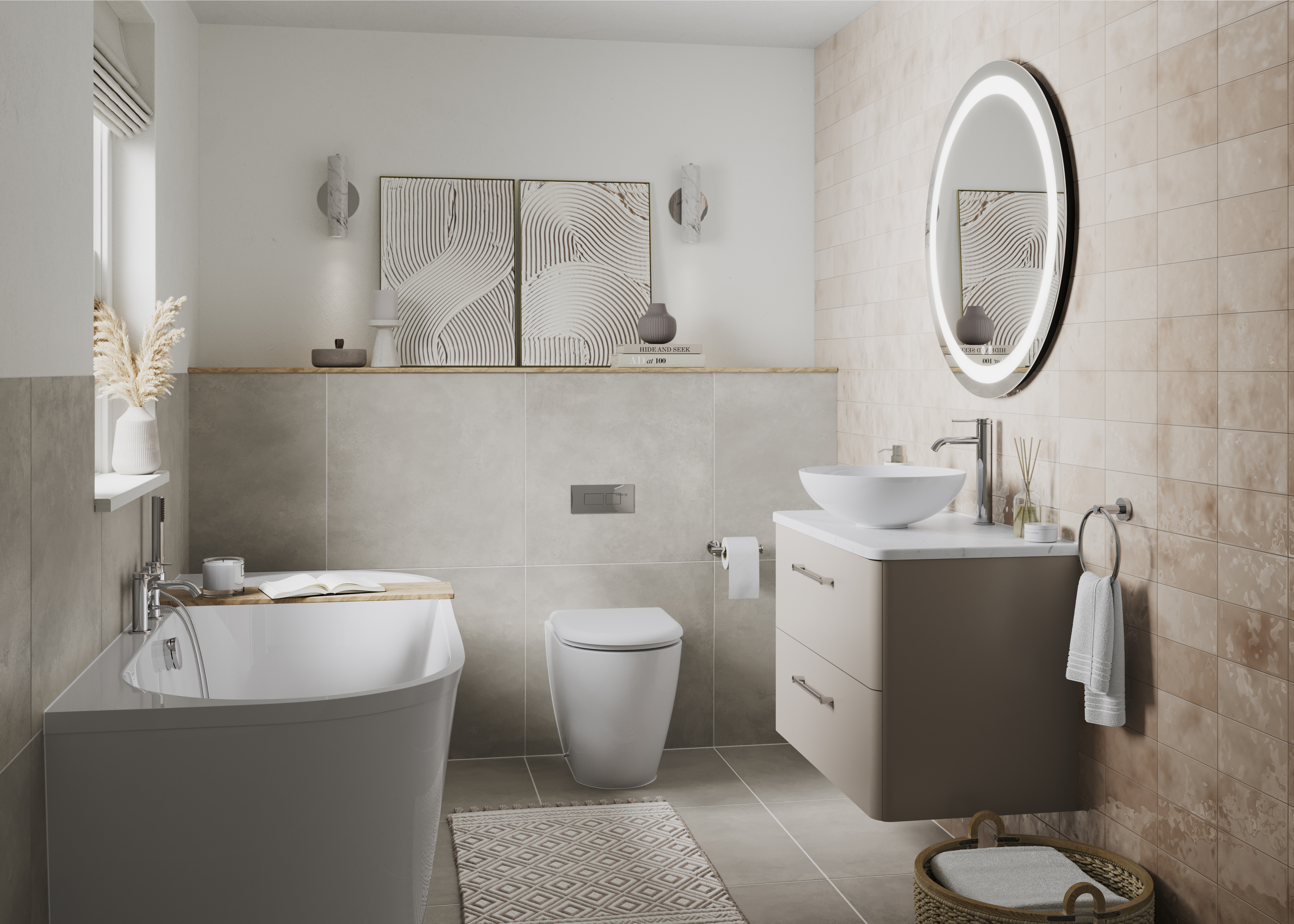

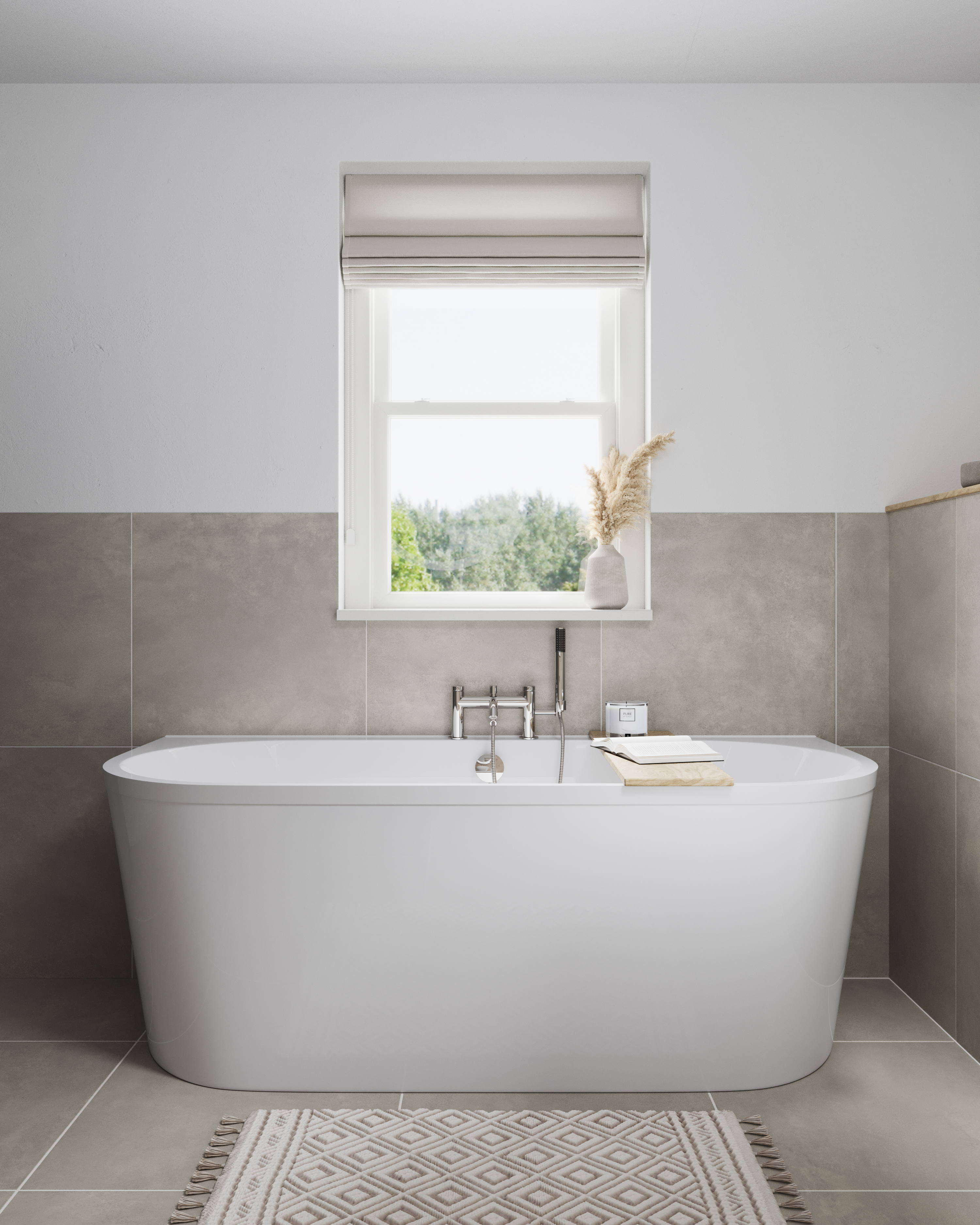

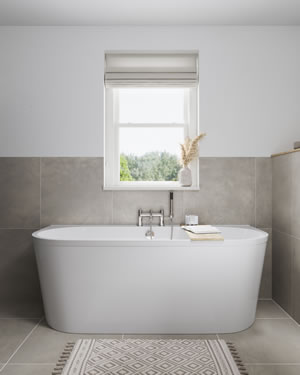

Lifestyle image 1 -
jpg -
Lifestyle image 2 -
jpg -
Lifestyle image 3 -
jpg
-
Lifestyle image 4 -
jpg -
Lifestyle image 5 -
jpg
-
Lifestyle image 6 -
jpg -

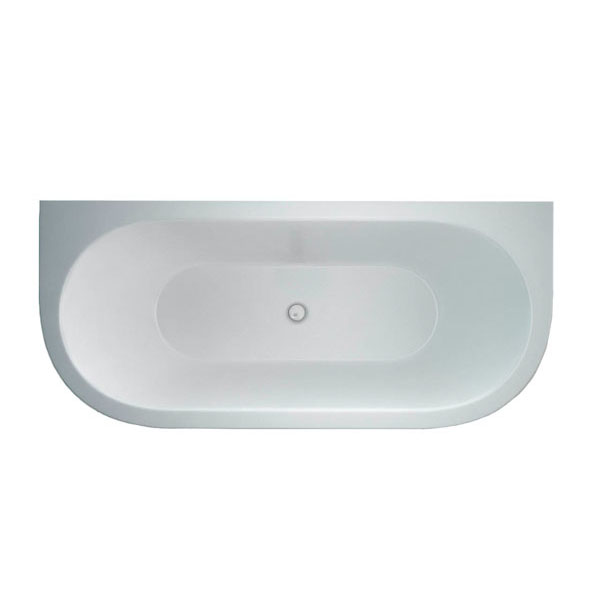

Product image 1 -
jpg
-
Product image 2 -
jpg
