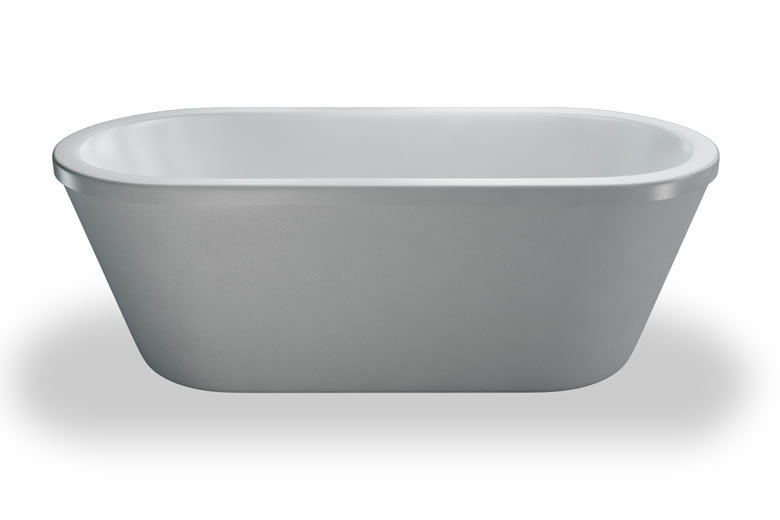

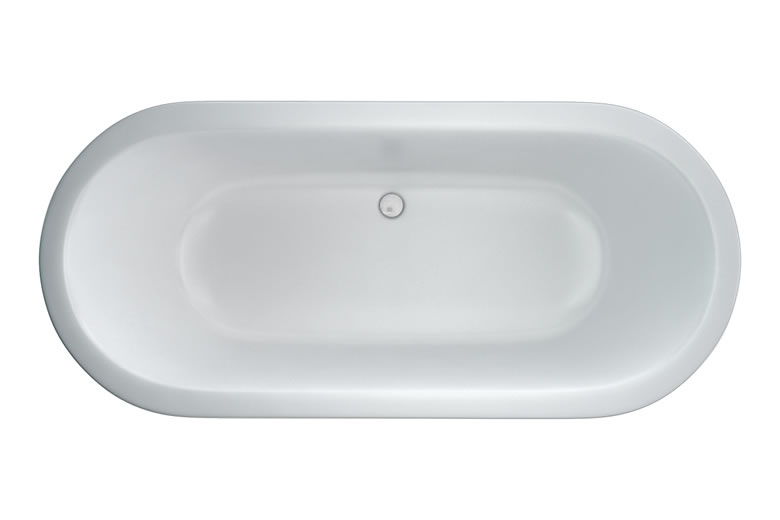

Arena Free Standing Bath
As Shown
| M1NCW Arena Free Standing Bath Inner Skin |
| M1BCW Nouveau Bath Outer Skin |
Nett Weight
| M1NCW - bath - 34kg |
| M1BCW - Bath surround - 14kg |
Gross Weight Including Packaging
| M1NCW - bath - 34.6kg |
| M1BCW - Bath surround - 14.6kg |
Packed Dimension
| M1NCW - 1785 x 815 x 460 = 0.6692 m3 |
| M1BCW - 1735 x 815 x 600 = 0.8484 m3 |
Bath water capacity
| 175 litres displaced water capacity |
Tap Hole Options
| 0,1,2 (supplied un-drilled) |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow is predrilled |
Compatible Products
| BTW0202C - Bath Click Clack Waste |
| PRO0202M - Bath Click Clack Waste - Matt Black |
| PRO0202F+ - Bath Click Clack Waste - Brushed Brass |
| PRO0202V+ - Bath Click Clack Waste - Brushed Stainless Steel Effect |
| PRI0202M - Bath Click Clack Waste - Carbon Black |
| PRI0202UB - Bath Click Clack Waste - Unlacquered Brushed Brass |
| PRO0351C - Mike Pro bath filler with click clack waste Chrome |
| PRO0360W+ - MPRO Bath Filler with Click Clack Waste - Matt White |
| PRO0355M - Mike Pro bath filler with click clack waste Matt Black |
| PRO0355F+ - MPRO Bath Filler with Click Clack Waste - Brushed Brass |
| PRO0355V - Mike Pro bath filler with click clack waste Brushed Stainless Steel Effect |
| PRO0210W+ - MPRO Bath Clicker Waste Extended Matt White |
| SP237 | leg sets for Freestark, Freefortis, Nouveau, Nouveau Petite baths |
Downloads
- Instructions - PDF - M1NCW (English)
- Instructions - PDF - M1BCW (English)
- Instructions - PDF - M1NCW (French)
- 2D CAD-File - DWG - M1NCW (M1A_LD.dwg)
-

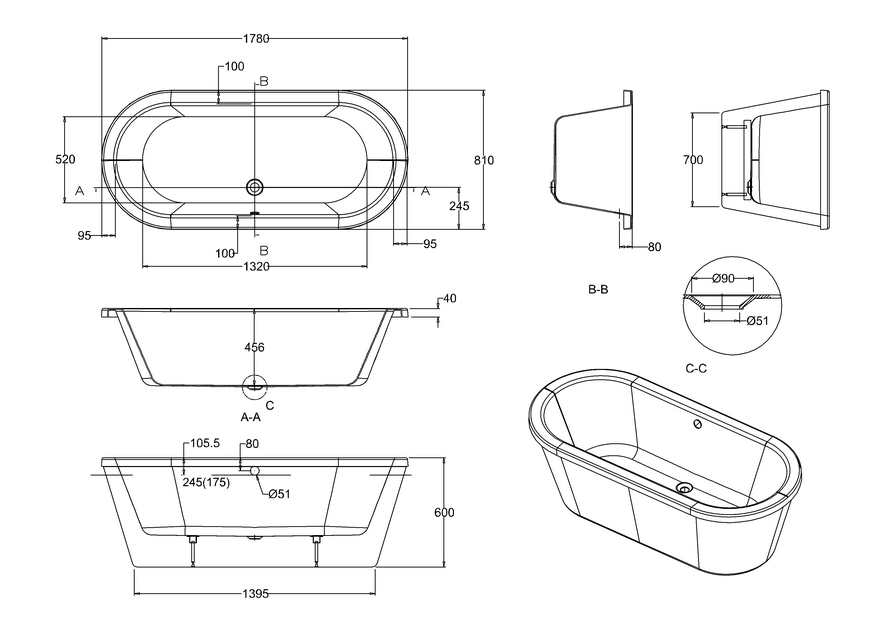

2D Drawing - PDF -
M1NCW
(M1A_LD.pdf)
2D Drawing - PDF - M1NCW
-
3D DWG - File - DWG
-
M1NCW
(3278.dwg)
-
3D DXF - File - DXF
-
M1NCW
(3278.dxf)
-
3D IGS - File - IGS
-
M1NCW
(3278.igs)
-
3D RFA BIMM Objects - File - RFA
-
M1NCW
(3278.rfa)
-

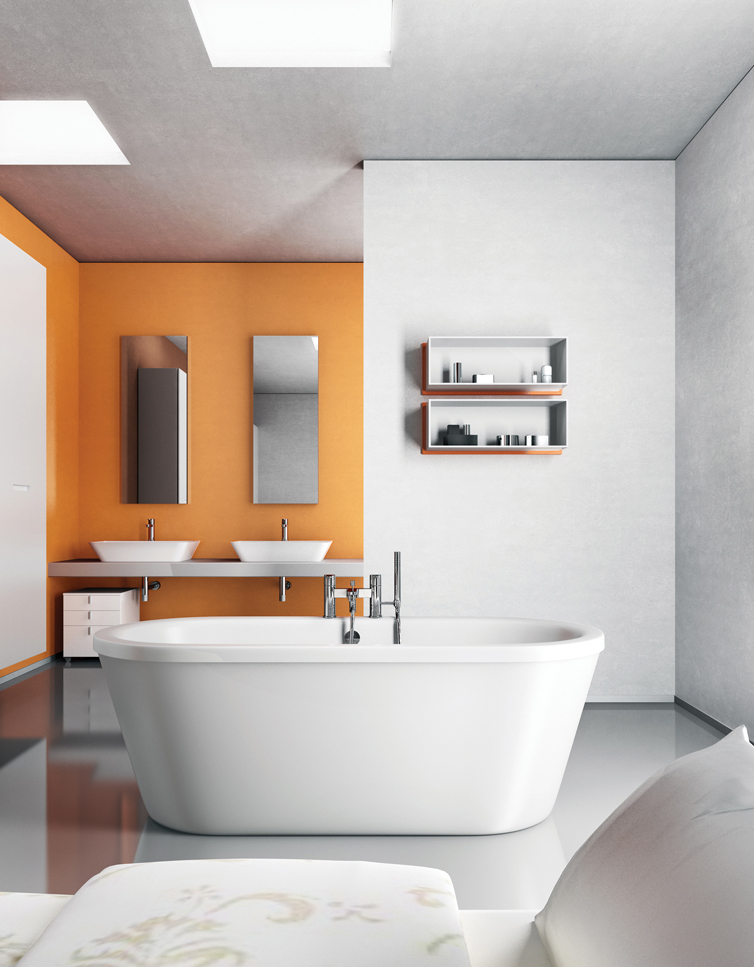

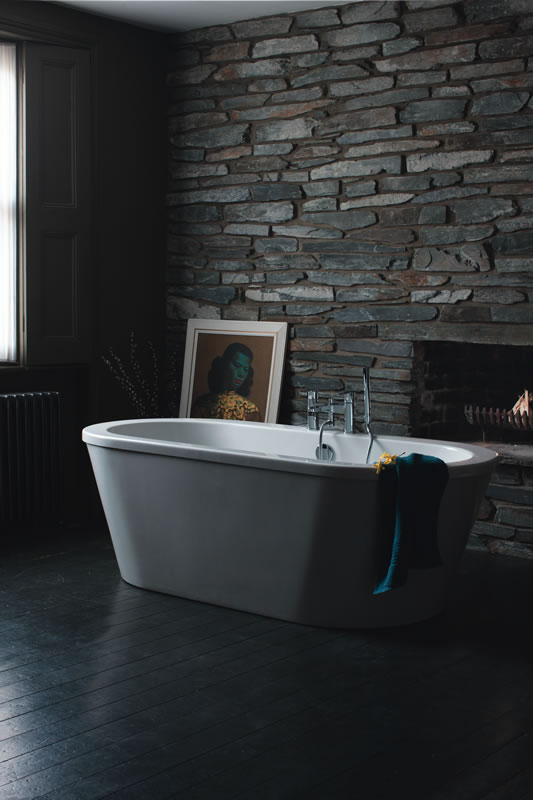

Lifestyle image 1 -
