MPRO Petite Free Standing Bath
Product Options
Bath Finish option
|
Standard finish
|
Matt finish
|
As Shown
| N1ACSCW MPRO Petite Free Standing Bath |
Colour
| N1ACSCW - bath - Gloss White |
Material
| N1ACSCW - bath - Clearstone |
Nett Weight
| N1ACSCW - bath - 78kg |
Gross Weight Including Packaging
| N1ACSCW - bath - 104kg |
Packed Dimension
| N1ACSCW - 1600 x 870 x 720 = 1.0022 m3 |
Bath water capacity
| 218 litres displaced water capacity |
Tap Hole Options
| 0 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Supplied with a template to define the overflow hole on the bath. |
|
When using underfloor heating please take care not to put the heating pipes/matt underneath the bath area. The bath should not sit on a heated floor. |
|
No overflow. |
|
Not suitable for rim-mounted taps. |
Compatible Products
| CW2NCSCW - Click Clack Bath Waste (unslotted) -Stone Gloss |
| CW2CW - Click Clack Bath Waste (unslotted) - Chrome |
| CW3CW - P Trap |
| CW11CW - Special Waste Pack |
| SP1294 | grey bag for Clearstone baths |
| SP1378 | replacement packaging for N1ACS(including label) |
Downloads
-
2D CAD-File - DWG -
N1ACSCW
(N1ACSCW_N1ACSMCW - 2D updated.dwg)
-

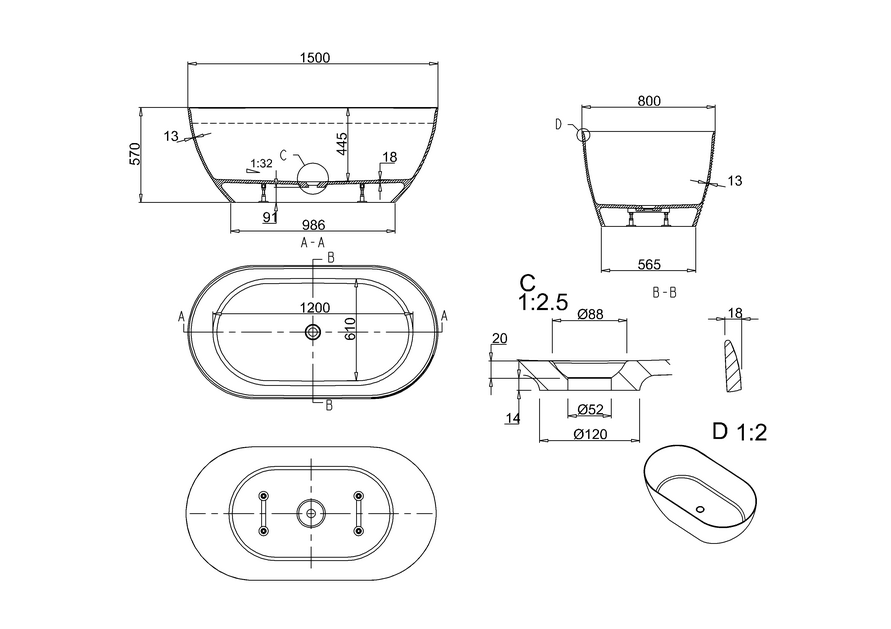

2D Drawing - PDF -
N1ACSCW
(N1ACSCW_N1ACSMCW - 2D updated.pdf)
2D Drawing - PDF - N1ACSCW
-
3D DWG - File - DWG
-
N1ACSCW
(N1ACS FOR-1500.dwg)
-
3D DXF - File - DXF
-
N1ACSCW
(N1ACS FOR-1500.dxf)
-
3D IGS - File - IGS
-
N1ACSCW
(N1ACS FOR-1500.igs)
-
3D RFA BIMM Objects - File - RFA
-
N1ACSCW
(N1ACS FOR-1500.rfa)
