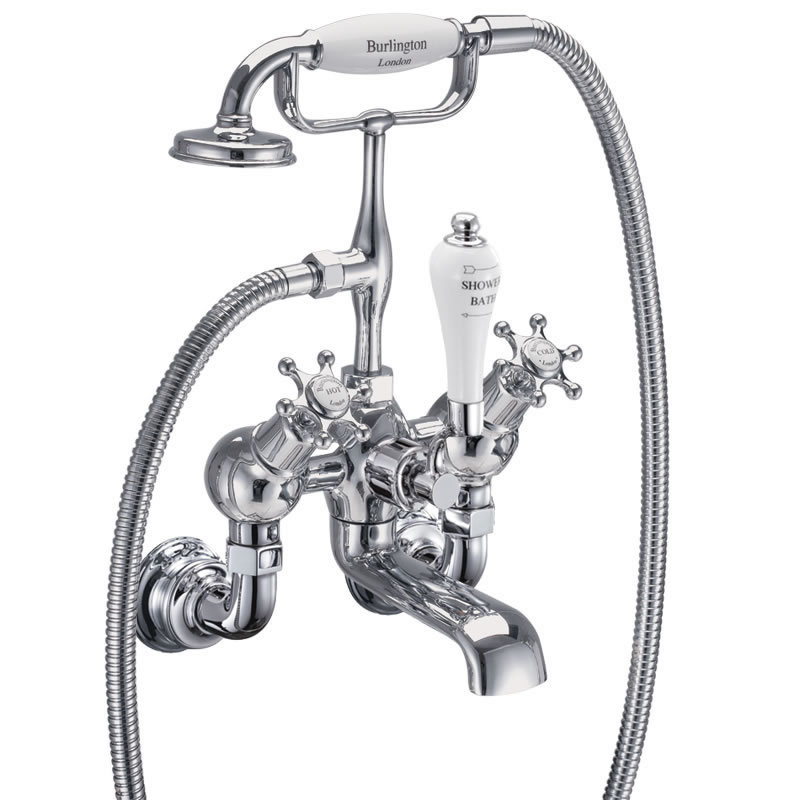

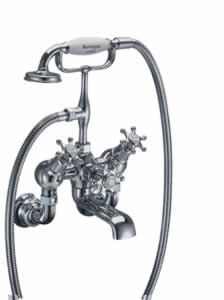

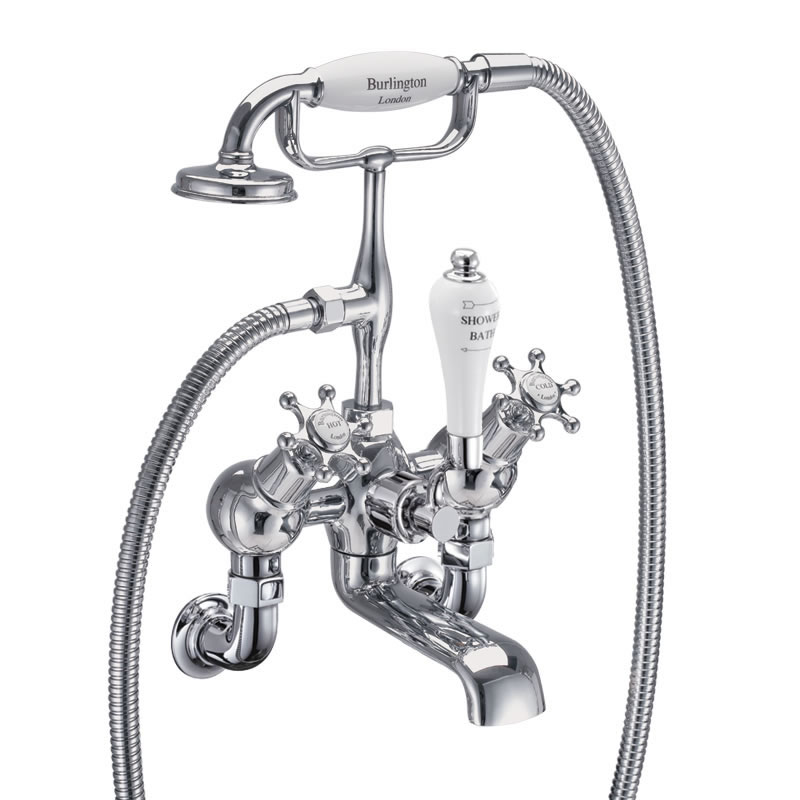

Burlington angled bath shower mixer wall mounted with S adjuster
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Head Options (Chrome Finish Shown)
Claremont Regent angled bath shower mixer - wall mounted Claremont Anglesey Regent angled bath shower mixer - wall mounted Anglesey Ceramic Tap Hand_T1_PAGE71_PAGE73.jpg Birkenhead
Quarter turn options
Birkenhead Regent angled bath shower mixer - wall mounted quarter turn full_done.jpg tradional screw-down
Tap Base options
Birkenhead angled bath shower mixer - wall mounted Standard base Birkenhead Regent angled bath shower mixer - wall mounted Regent base
Indicies & lever finish
Birkenhead Regent angled bath shower mixer - wall mounted White Birkenhead Medici Regent angled bath shower mixer - wall mounted Medici Birkenhead Regent angled bath shower mixer - wall mounted Black
Alternate Text
As Shown
T9 Angled bath shower mixer
T17-2 Wall mounting unions
T3 Birkenhead tap handles
T4A Regent large pair of tap bases
BIR21  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 22  22.6  25.2  27.2  29  n/a  n/a
Spout (aerator) 5.6  10.7  11.6  14.3  15.6  n/a  n/a
Handset 3.56  4.19  7.06  11.36  15.55  n/a  n/a
SP162 aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548 aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
V29 burlington Ceramic telephone handset
V26 burlington Shower hose 1500mm
SP1209 ceramic handle for Burlington telephone handset
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP1771 cradle connector (including O ring) for T8, T8-QT, T9, T9-QT
SP557 cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP191 diverter for all finishes products of T8, T8-QT, T9, T9-QT
SP378 diverter handle for T8, T8-QT, T9, T9-QT
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547 flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1480 inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT
SP1722 o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2
SP1006 o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP200 part B for T8, T9 diverter
SP317 s Adjustor for T8, T8-QT, T9, T9-QT
SP1072 set of parts used to connect the T8 BSM diverter and cross handle
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP27 T9, T24, T25 3, 4 full turn cartridge
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1721 thread pipe (1 piece) for T17, T17-2
