Classic Round basin
As Shown
| B17 1TH Classic round 65cm basin one tap hole |
| P6 Classic pedestal |
Nett Weight
| B17 1TH - basin - 15.6kg |
| P6 - pedestal - 12.25kg |
Gross Weight Including Packaging
| B17 1TH - basin - 19.7kg |
| P6 - pedestal - 14.15kg |
Packed Dimension
| B17 1TH - 678 x 605 x 325 = 0.1333 m3 |
| P6 - 687 x 325 x 275 = 0.0614 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
Downloads
-
2D CAD-File - DWG -
B17 1TH P6
(B17 1TH_P6_20201030.dwg)
-

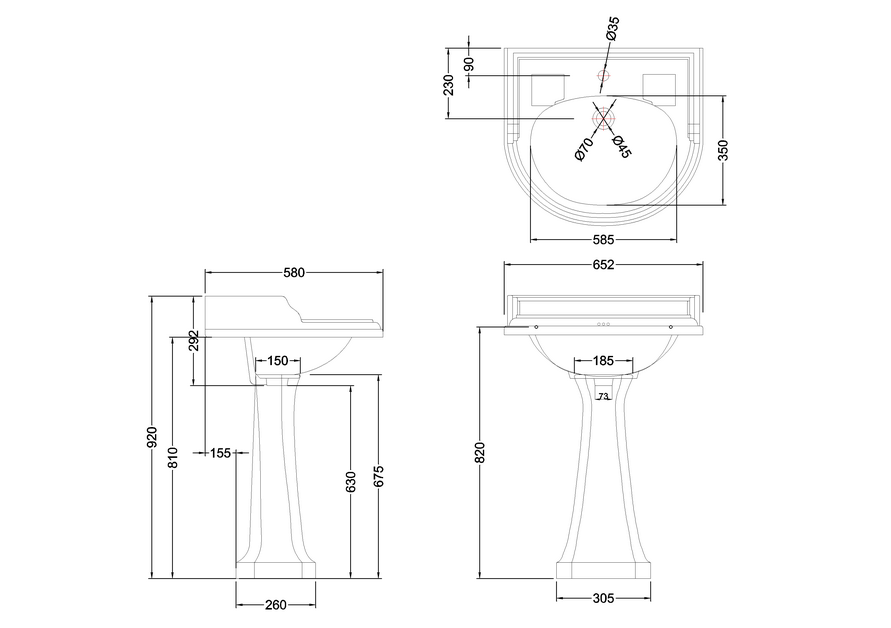

2D Drawing - PDF -
B17 1TH P6
(B17 1TH_P6_20201030.pdf)
2D Drawing - PDF - B17 1TH P6
-
3D DWG - File - DWG
-
B17 1TH P6
(2722.dwg)
-
3D DXF - File - DXF
-
B17 1TH P6
(2722.dxf)
-
3D IGS - File - IGS
-
B17 1TH P6
(2722.igs)
-
3D RFA BIMM Objects - File - RFA
-
B17 1TH P6
(2722.rfa)
-

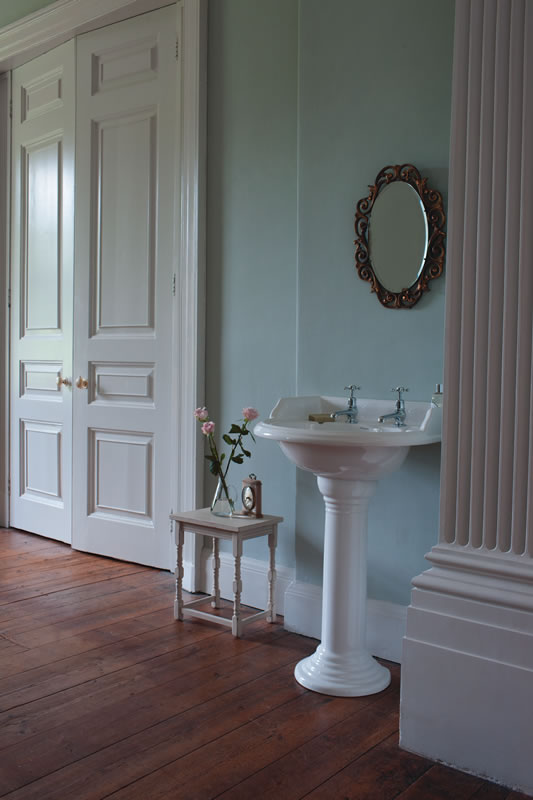

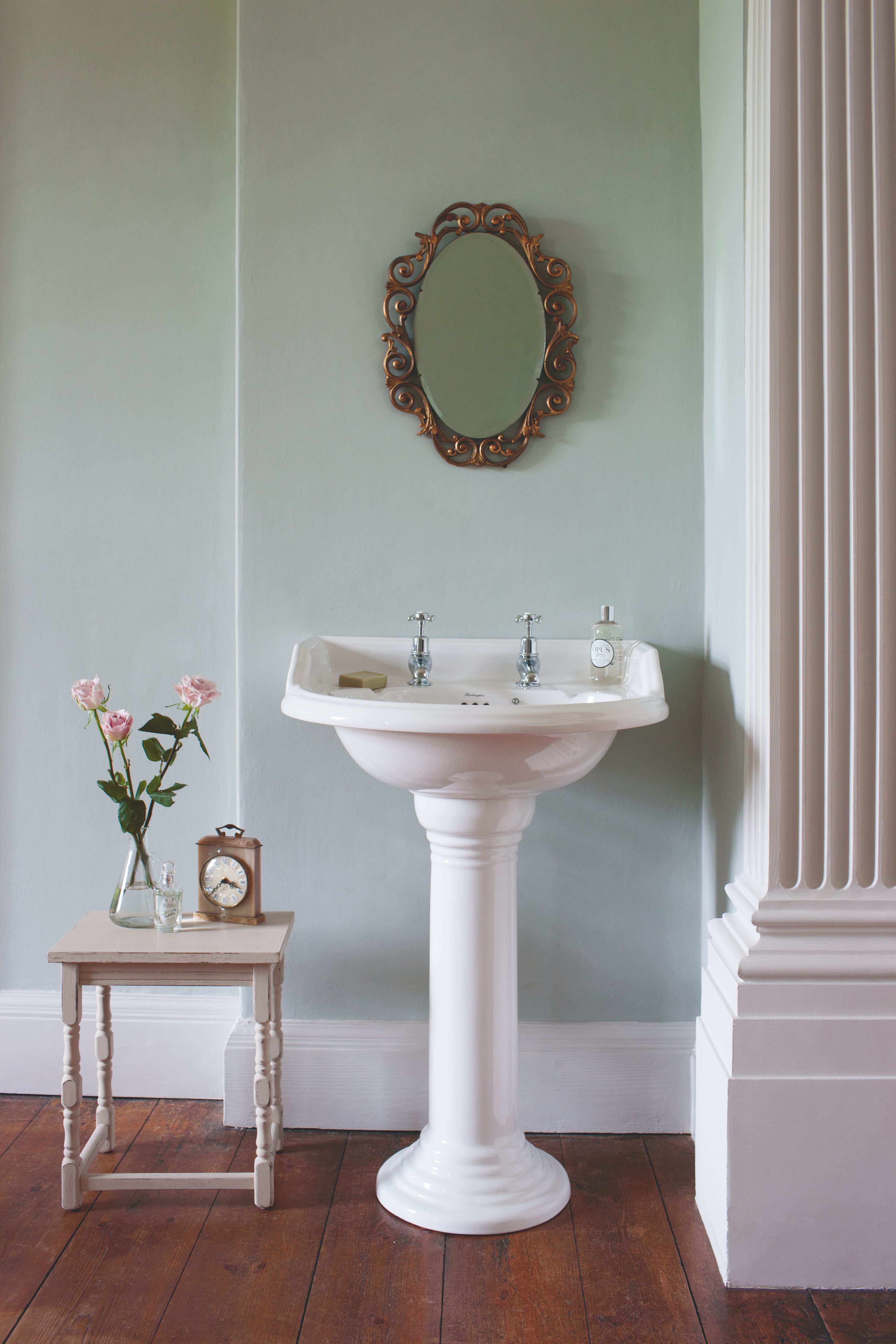

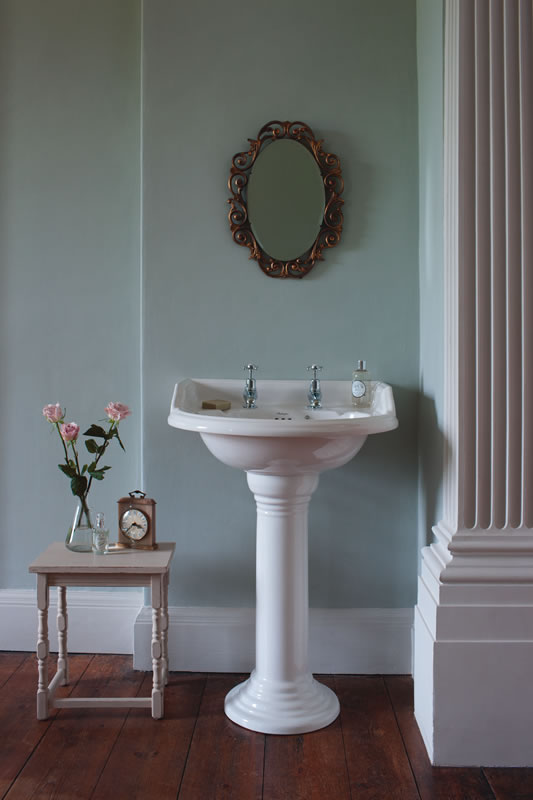

Lifestyle image 1 -
tiff
jpg -

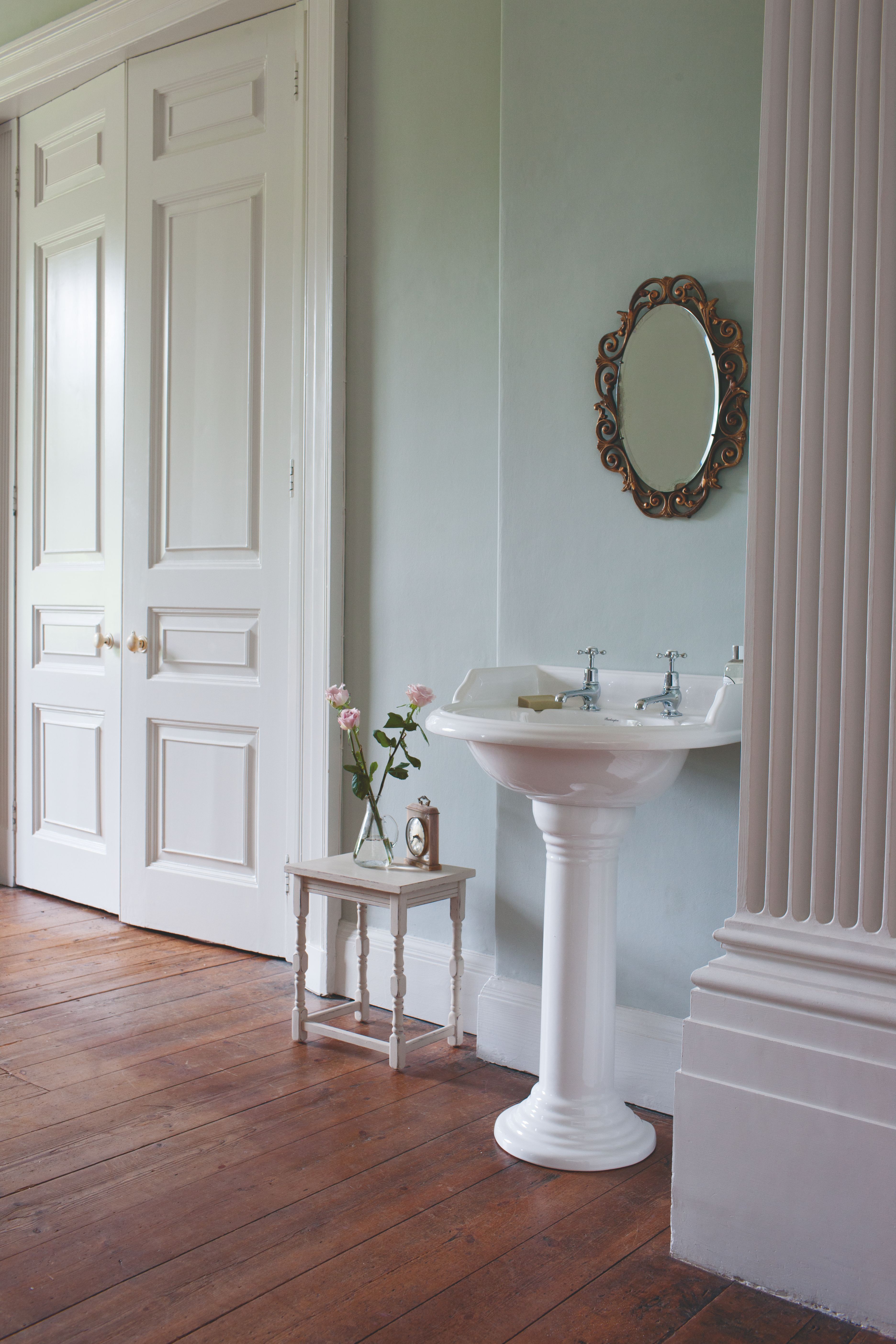

Lifestyle image 2 -
tiff
jpg -

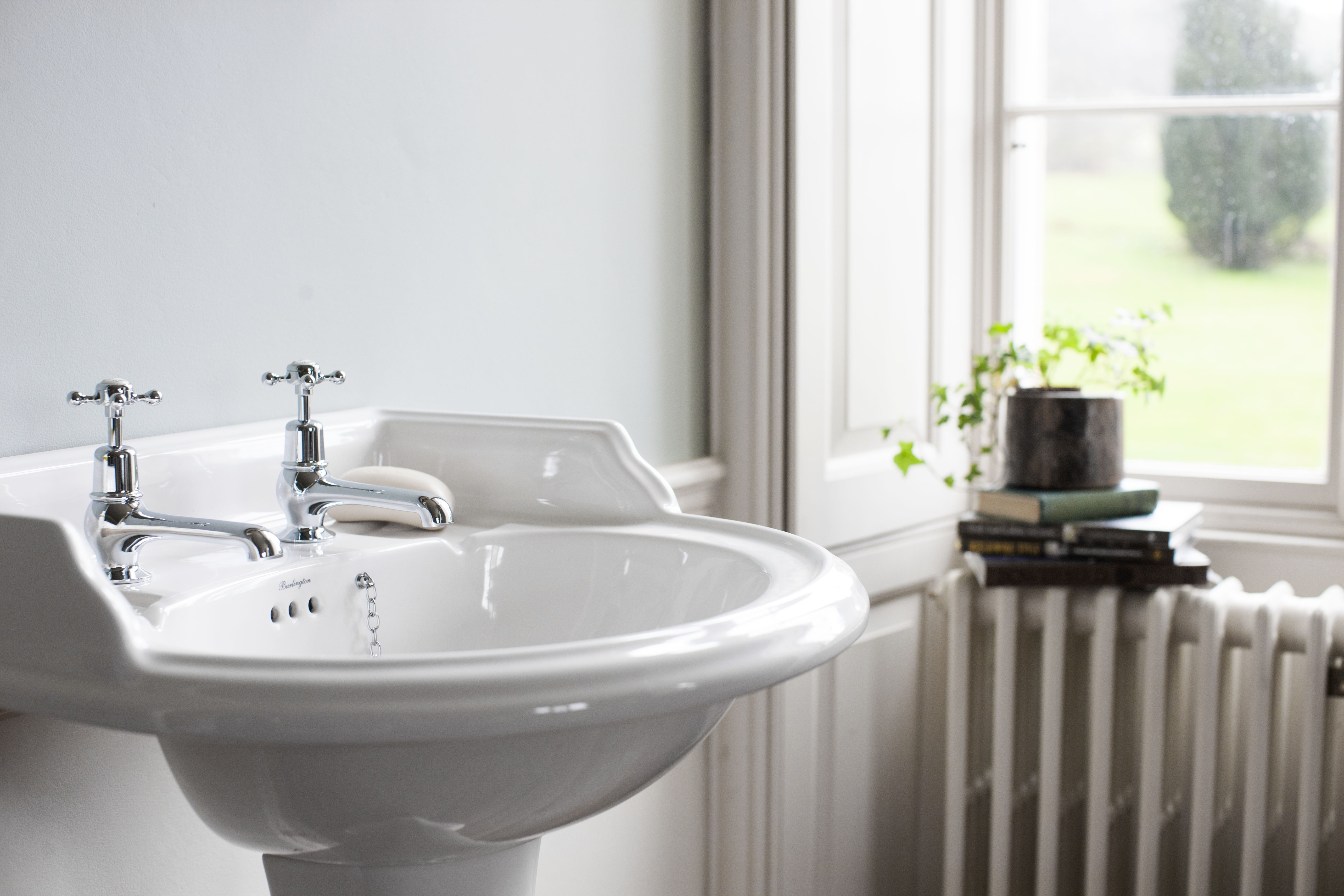

Lifestyle image 3 -
tiff
jpg -

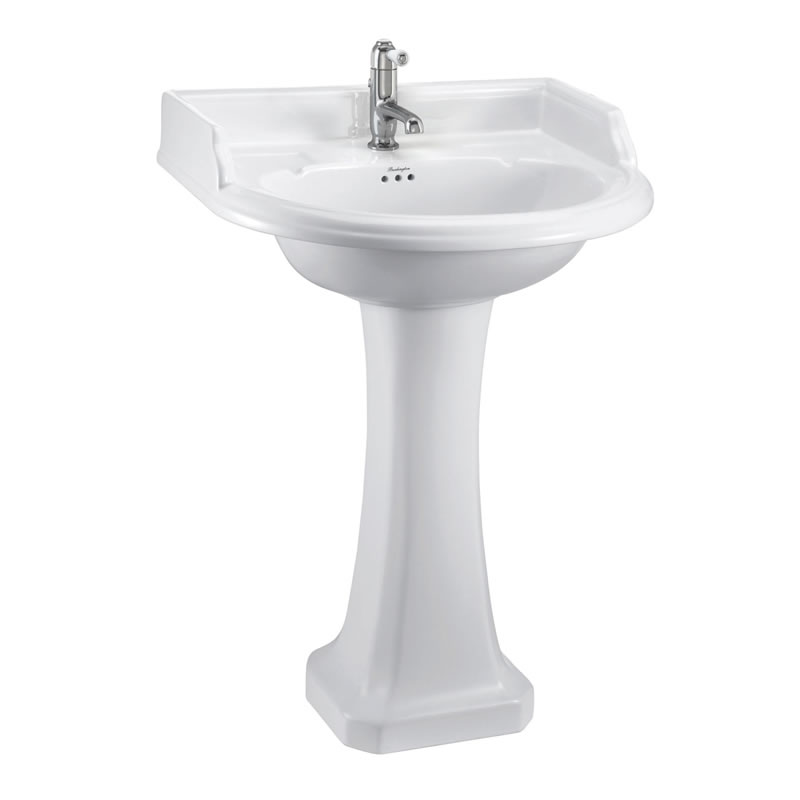

Product image 1 -
jpg
-
Product image 2 -
jpg
