Curved Cloakroom basin
Product Options
tap hole options
1 tap hole
|
2 tap holes
|
As Shown

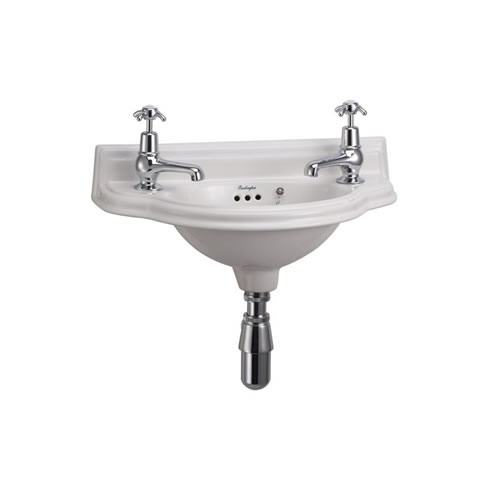

| P13 Curved cloakroom basin |
Colour
| P13 - basin - Gloss White |
Material
| P13 - basin - Vitreous China |
Nett Weight
| P13 - basin - 5.54kg |
Gross Weight Including Packaging
| P13 - basin - 6.6kg |
Packed Dimension
| P13 - 513 x 232 x 275 = 0.0327 m3 |
Tap Hole Options
| Available with one (P13L or P13R) or two (P13) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| SP86 | wall brackets for cloakroom basins |
Downloads
-
2D CAD-File - DWG -
P13
(P13 _LD.dwg)
-

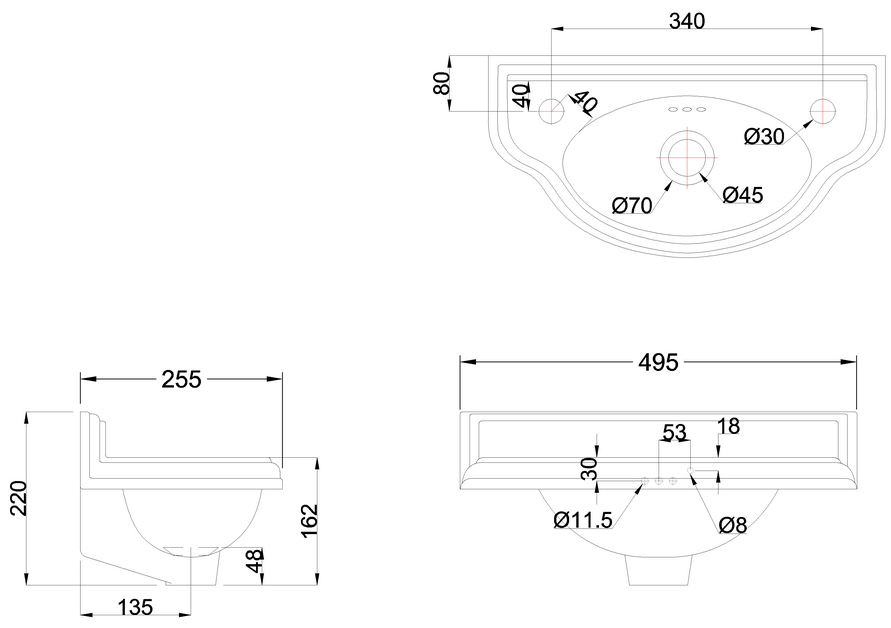

2D Drawing - PDF -
P13
(P13 _LD.pdf)
2D Drawing - PDF - P13
-
3D DWG - File - DWG
-
P13
(WLY014 P13_2.dwg)
-
3D DXF - File - DXF
-
P13
(WLY014 P13_2.dxf)
-
3D IGS - File - IGS
-
P13
(WLY014 P13_2.igs)
-
3D RFA BIMM Objects - File - RFA
-
P13
(WLY014 P13_2.rfa)
-

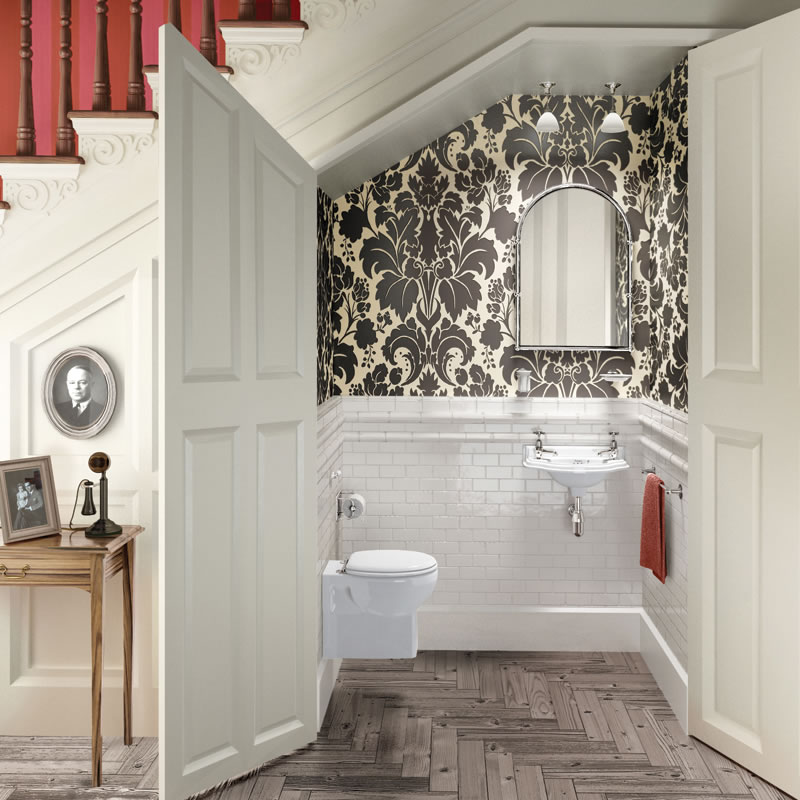

Lifestyle image 1 -
jpg -

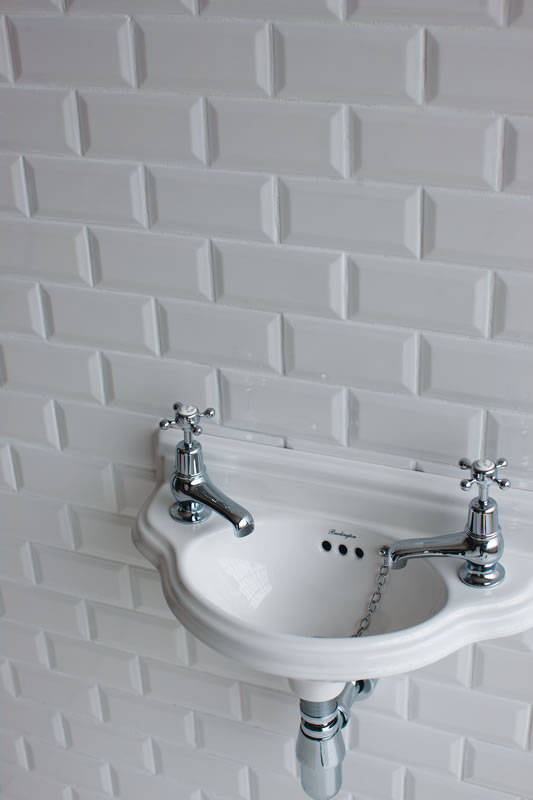

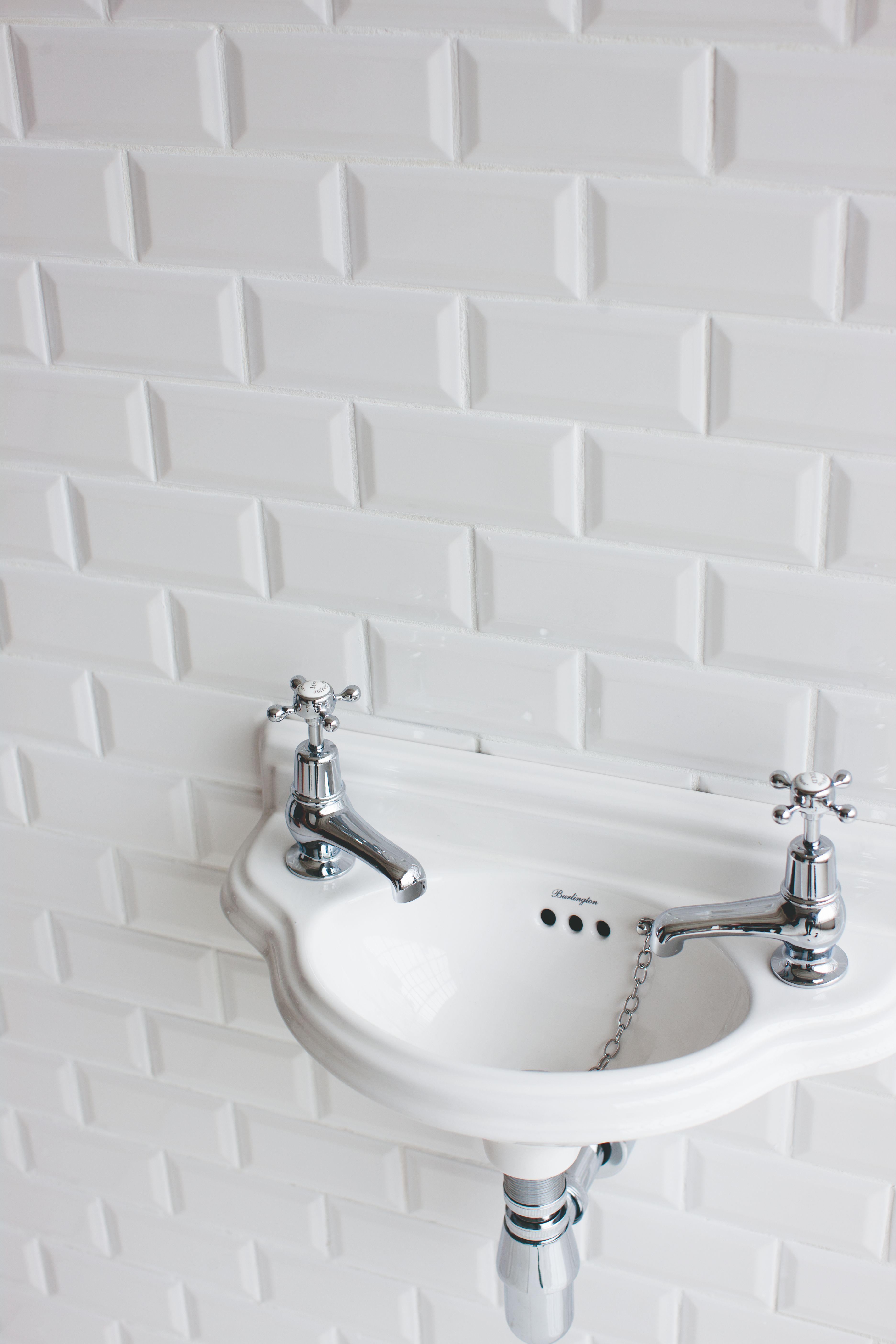

Lifestyle image 2 -
tiff
jpg -

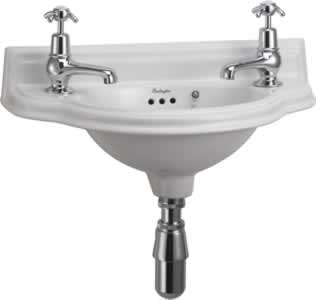

Product image 1 -
