Overflow bath filler
Product Options
for single ended baths
|
for double ended baths
|
|
White
|
Medici
|
As Shown
| W2 Bath overflow filler for double ended bath |
Colour
| W2 - waste - Polished Chrome |
Material
| W2 - waste - Brass |
Nett Weight
| W2 - waste - 1.95kg |
Gross Weight Including Packaging
| W2 - waste - 2.25kg |
Packed Dimension
| W2 - 1100 x 120 x 120 = 0.0158 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
|
N/A |
| SP417 | bolt for CW9, W2, W15 |
| SP108 | ceramic ring for all finishes products of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4 |
| SP1166 | housing for W15, W2 |
| SP915 | overflow cover of bath filler W2, W15 (including grub screw & handle) |
| SP1314 | overflow outlet base for W15, W2 |
| SP1266 | plug hole of bath waste for CW9, W2, W15 |
| SP808 | plug of bath waste for product W15, W2, CW9 |
Downloads
-
2D CAD-File - DWG -
W2
(W2_LD.dwg)
-

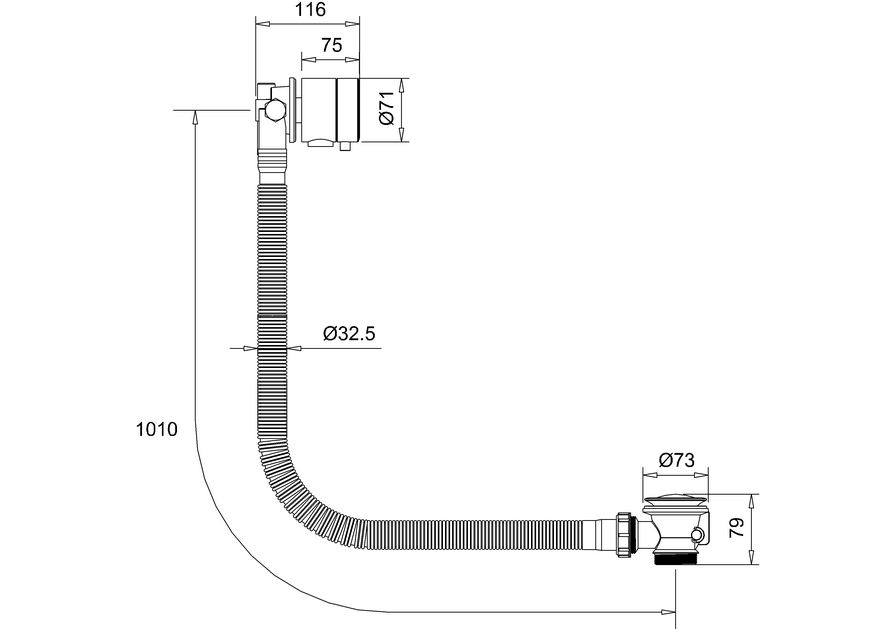

2D Drawing - PDF -
W2
(W2_LD.pdf)
2D Drawing - PDF - W2
-
3D DWG - File - DWG
-
W2
(W2.dwg)
-
3D DXF - File - DXF
-
W2
(W2.dxf)
-
3D IGS - File - IGS
-
W2
(W2.igs)
-
3D RFA BIMM Objects - File - RFA
-
W2
(W2.rfa)
