Windsor double ended 150cm bath with standard legs
Classical feet
Chrome
White
Black
Period feet
Chrome
White
Black
Traditional feet
White
Black
Chrome
As Shown
| E4 Windsor double ended bath |
| E11 CHR Traditional leg set |
Nett Weight
| E4 - bath - 43kg |
| E11 CHR - legs - 3.2kg |
Gross Weight Including Packaging
| E4 - bath - 45.5kg |
| E11 CHR - legs - 3.9kg |
Packed Dimension
| E4 - 1540 x 850 x 480 = 0.6283 m3 |
| E11 CHR - 340 x 340 x 230 = 0.0266 m3 |
Bath water capacity
| 115 litres displaced water capacity |
Tap Hole Options
| 0,1,2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process |
|
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required. |
Compatible Products
| W2 - Overflow filler for double ended bath |
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
| CW6 - Exposed bath overflow, click-clack waste |
| SP1146 | packaging for E4 |
| SP25 | spares 2 for L10 and 3 colors of bath leg set (L1, L2, L3, E9, E10, E11) |
Downloads
- Instructions - PDF - E4 (English)
- Instructions - PDF - E11 CHR (English)
- Instructions - PDF - E11 CHR (French)
- Instructions - PDF - E4 (French)
-
2D CAD-File - DWG -
E4 E11 CHR
(E4 E11 CHR_LD.DWG)
-

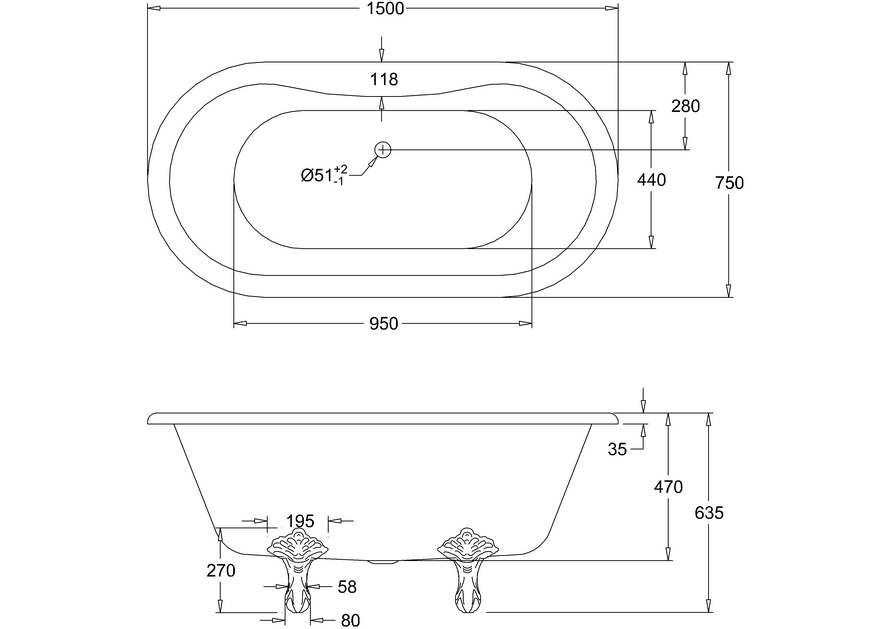

2D Drawing - PDF -
E4 E11 CHR
(E4 E11 CHR_LD.pdf)
2D Drawing - PDF - E4 E11 CHR
-
3D DWG - File - DWG
-
E4 E11 CHR
(AJB-RL-1501-A0.dwg)
-
3D DXF - File - DXF
-
E4 E11 CHR
(AJB-RL-1501-A0.dxf)
-
3D IGS - File - IGS
-
E4 E11 CHR
(AJB-RL-1501-A0.igs)
-
3D RFA BIMM Objects - File - RFA
-
E4 E11 CHR
(AJB-RL-1501-A0.rfa)
