Non-Soft Close Universal Seats
Product Options
Seat Options
White
|
Oak
|
Mahogany
|
As Shown
| S11 Golden oak seat |
Colour
| S11 - seat - Oak |
Material
| S11 - seat - Molded Wood |
Nett Weight
| S11 - seat - 2.62kg |
Gross Weight Including Packaging
| S11 - seat - 2.84kg |
Packed Dimension
| S11 - 440 x 373 x 65 = 0.0107 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
|
N/A |
Additional Information
|
Oak coloured moulded wooden seat with chrome plated soft close hinges |
|
Fits all Burlington pans - close coupled, medium & low & high level, back to wall and wall hung pans |
|
To add seat handles use code A51CHR |
| SP509 | buffers for the seat ring & lid for S11, S12, S16, S17 |
| SP620 | complete bar hinges for S11, S12 |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP193 | spare Parts for S11, S12 |
Downloads
-

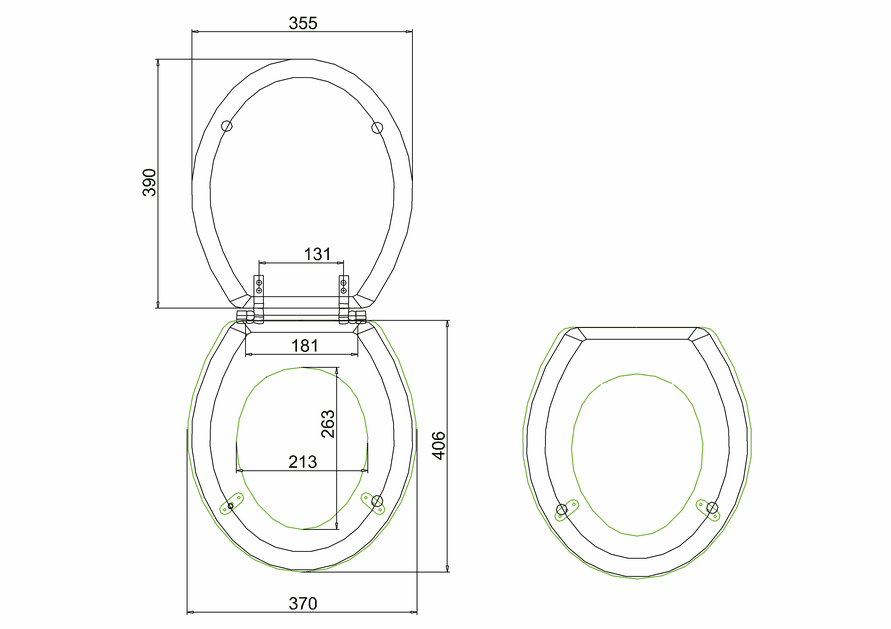

2D CAD-File - DWG -
S11_A51 CHR
(S11_LD.dwg)
-
2D Drawing - PDF -
S11_A51 CHR
(S11_LD.pdf)
2D Drawing - PDF - S11_A51 CHR
-
3D DWG - File - DWG
-
S11_A51 CHR
(Wooden seat-20201124.dwg)
-
3D RFA BIMM Objects - File - RFA
-
S11_A51 CHR
(Wooden seat-20201124.rfa)
-
3D IGS - File - IGS
-
S11_A51 CHR
(S13.igs)
