Hinged doors
Product Options
Sizes
76cm (A)
|
80cm (A)
|
90cm (A)
|
As Shown
| C19 760mm hinged door |
| BU1 - Combined product code |
Material
| C19 - door - Aluminum |
Size
| C19 - 720 x 1950mm |
Nett Weight
| C19 - door - 30.4kg |
Gross Weight Including Packaging
| C19 - door - 34.1kg |
Packed Dimension
| C19 - 2010 x 785 x 87 = 0.1373 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Safety glass with 3M™ Easy Clean Coating |
|
All enclosures are 1950 high and adjustable up to 20mm from each wall. |
|
Hinged door 8mm glass |
|
Hinged door opens outwards only |
| SP938 | adjustable profile of product C19, C20, C21 |
| SP470 | bottom door frame B019 for C19 (excluding the sealing strip) |
| SP61 | bottom Waterproof Strip for C19, C20, C21, C22, C23 (single) (B035, B036) |
| SP318 | burlington Bottom profile of hinge door C19, C20, C21 |
| SP912 | hinge of product C19, C20, C21, C9, C10 |
| SP1687 | hinge screws for Burlington shower enclosure C9, C10, C19, C20, C21, |
| SP53 | hinged Door Spare Kit |
| SP431 | part B011 for C19, C20, C21 |
| SP982 | seal on the hinged side of the door for product C19, C20, C21 |
| SP242 | side profile - B015 for C23, C22, C21, C20, C19 (pair) |
| SP112 | top and bottom fixing frame 636mm for C19 |
| SP921 | top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R |
| SP426 | vertical seal for C19, C20, C21(B017) |
Downloads
-
2D CAD-File - DWG -
BU1
(BU1_LD.dwg)
-

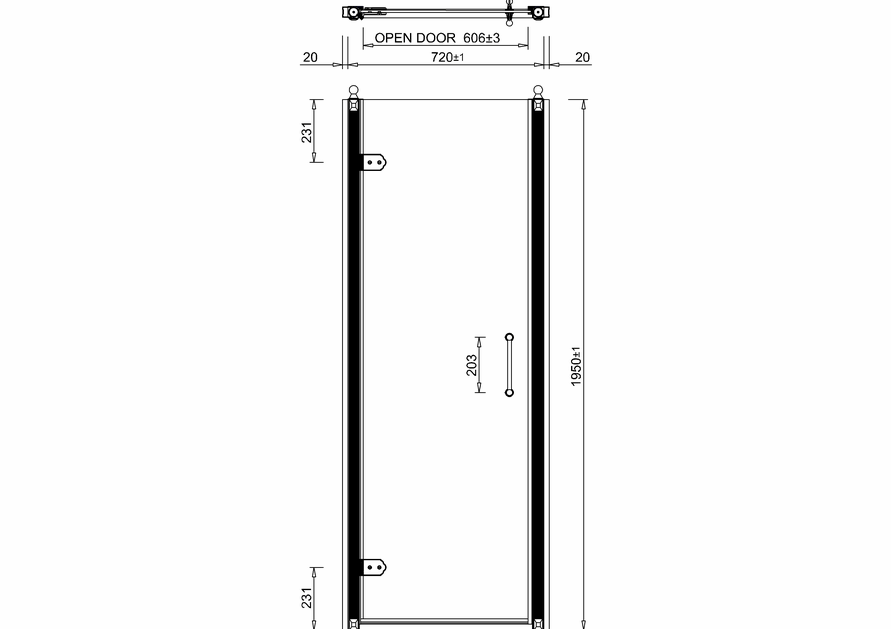

2D Drawing - PDF -
BU1
(BU1_LD.pdf)
2D Drawing - PDF - BU1
