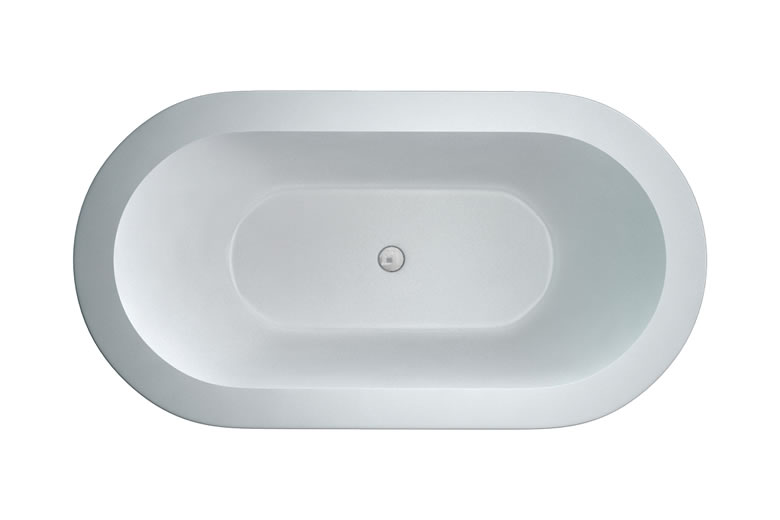

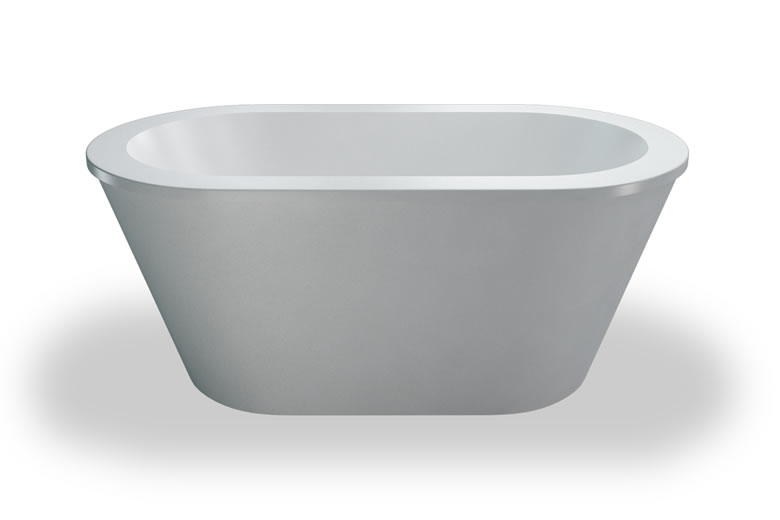

Nouveau Petite modern bath
As Shown
| M2N Nouveau Petite Bath Inner Skin |
| M2B Nouveau Petite Bath Outer Skin |
Nett Weight
| M2N - bath - 23kg |
| M2B - Bath surround - 11kg |
Gross Weight Including Packaging
| M2N - bath - 23.6kg |
| M2B - Bath surround - 11.6kg |
Packed Dimension
| M2N - 1505 x 805 x 465 = 0.5634 m3 |
| M2B - 1505 x 805 x 620 = 0.7511 m3 |
Bath water capacity
| 98 litres displaced water capacity |
Tap Hole Options
| 0,1,2 (supplied un-drilled) |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow is predrilled |
| SP237 | leg sets for Freestark, Freefortis, Nouveau, Nouveau Petite baths |
Downloads
- Instructions - PDF - M2N (English)
- Instructions - PDF - M2B (English)
- Instructions - PDF - M2N (French)
-
2D CAD-File - DWG -
(M2A_LD.dwg)
-
2D Drawing - PDF -
(M2A_LD.pdf)
2D Drawing - PDF -
-
3D DWG - File - DWG
-
(3279.dwg)
-
3D DXF - File - DXF
-
(3279.dxf)
-
3D IGS - File - IGS
-
(3279.igs)
-
3D RFA BIMM Objects - File - RFA
-
(3279.rfa)
-

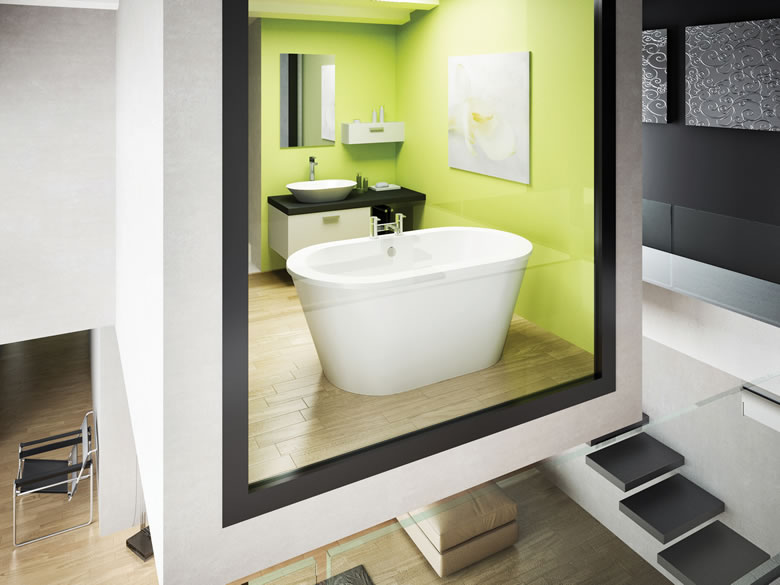

Lifestyle image 1 -
jpg -

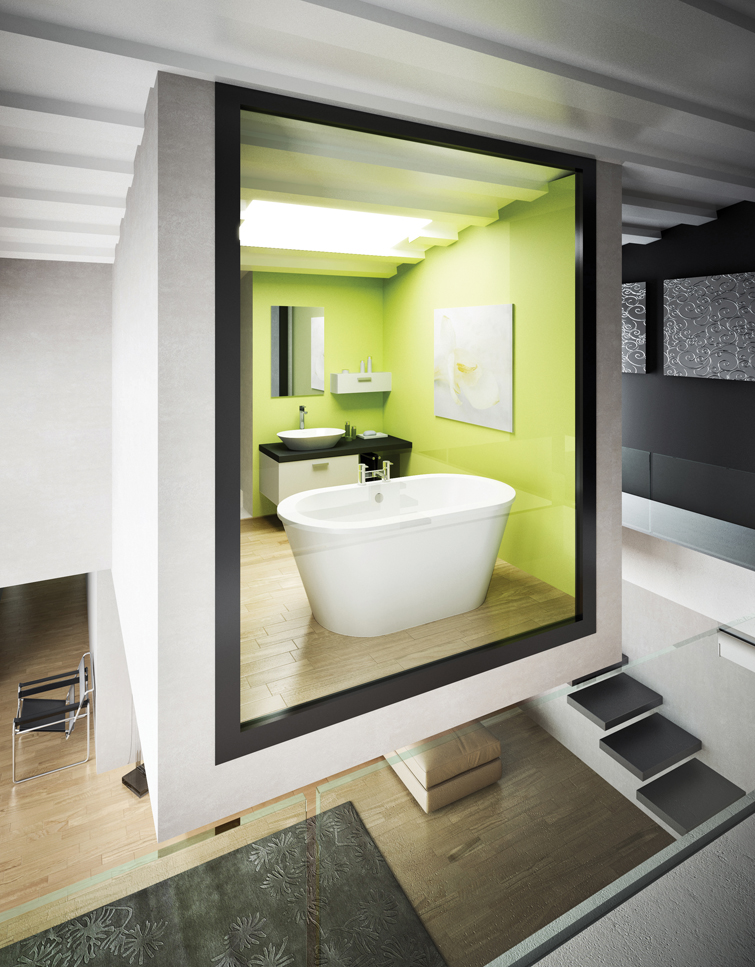

Lifestyle image 2 -
jpg -
Product image 1 -
jpg
-
Product image 2 -
psd
jpg
-
Product image 3 -
jpg
-
Product image 4 -
jpg
