Crystal basin mixer without waste
Product Options
waste options
with pop-up waste
|
without waste
|
As Shown
| CTA2 Crystal basin mixer with pop up waste |
Colour
| CTA2 - tap - chrome plated |
Material
| CTA2 - tap - brass |
Nett Weight
| CTA2 - tap - 1.7kg |
Gross Weight Including Packaging
| CTA2 - tap - 2.1kg |
Packed Dimension
| CTA2 - 320 x 225 x 110 = 0.0079 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
Level 10 salt spray tested |
|
Chrome plated to EN248:2002 |
|
EN817:2008 |
|
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications |
|
EN200:2008 |
|
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
|
All mixers work on 0.2 bar to 5 bar pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 4.07 | 6.92 | 9.99 | 14.31 | 17.22 | n/a | n/a |
| Spout (aerator) | 2 | 3.4 | 4.82 | 6.88 | 8.37 | n/a | n/a |
Downloads
- 2D CAD-File - DWG - CTA2 (CTA2_LD.dwg)
-

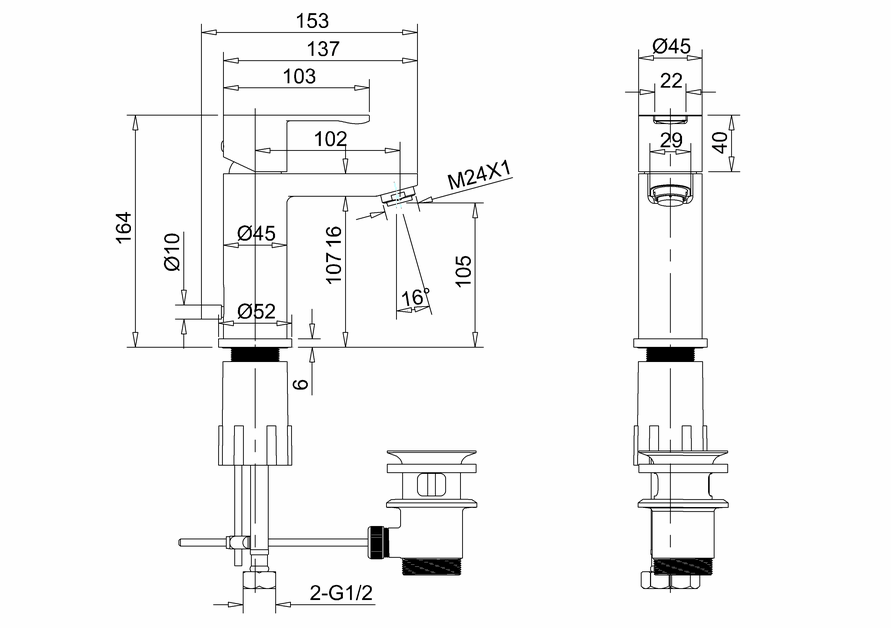

2D Drawing - PDF -
CTA2
(CTA2_LD.pdf)
2D Drawing - PDF - CTA2
-
3D DWG - File - DWG
-
CTA2
(CTA2.dwg)
-
3D DXF - File - DXF
-
CTA2
(CTA2.dxf)
-
3D IGS - File - IGS
-
CTA2
(CTA2.igs)
-
3D RFA BIMM Objects - File - RFA
-
CTA2
(CTA2.rfa)
