Cube S20 wall hung pan with soft close seat | BB Whitebook

Welcome to the Bathroom Brands Technical Whitebook

Cube S20 wall hung pan with soft close seat

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

20.1950 Cube wall hung WC

SS.1025 Carbamide soft close seat

Colour

20.1950 - pan - white

SS.1025 - seat - Gloss White

Material

20.1950 - pan - vitreous china

SS.1025 - seat - Urea

Size

20.1950 - 520 x 360 x 360mm

SS.1025 - 360 x 435 x 54mm

Nett Weight

20.1950 - pan - 28kg

SS.1025 - seat - 2.3kg

Gross Weight Including Packaging

20.1950 - pan - 30kg

SS.1025 - seat - 2.65kg

Packed Dimension

20.1950 - 560 x 400 x 408 = 0.0914 m3

SS.1025 - 445 x 366 x 56 = 0.0091 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 997:2012

WC pans and WC suites with integral trap

Additional Information

vitreous china

Downloads

Instructions - PDF - SS.1025 (English)
Instructions - PDF - SS.1025 (French)

2D CAD-File - DWG - 20.195 SS.1025 (20.195 SS.1025_LD.dwg)

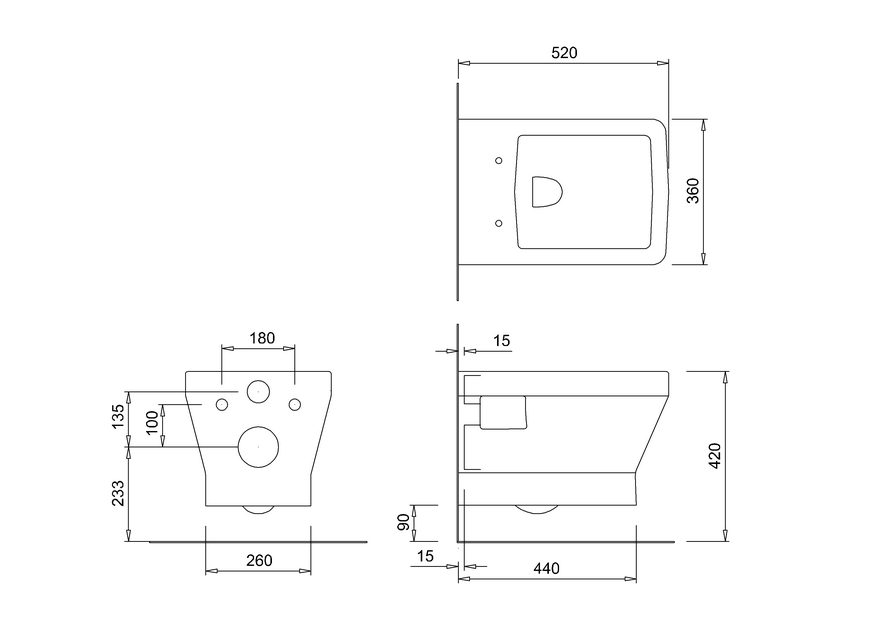

2D Drawing - PDF - 20.195 SS.1025 (20.195 SS.1025_LD.pdf) 2D Drawing - PDF - 20.195 SS.1025

3D DWG - File - DWG - 20.195 SS.1025 (3500.dwg)
3D DXF - File - DXF - 20.195 SS.1025 (3500.dxf)
3D IGS - File - IGS - 20.195 SS.1025 (3500.igs)

Lifestyle image 1 -

jpg
Lifestyle image 2 -

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
