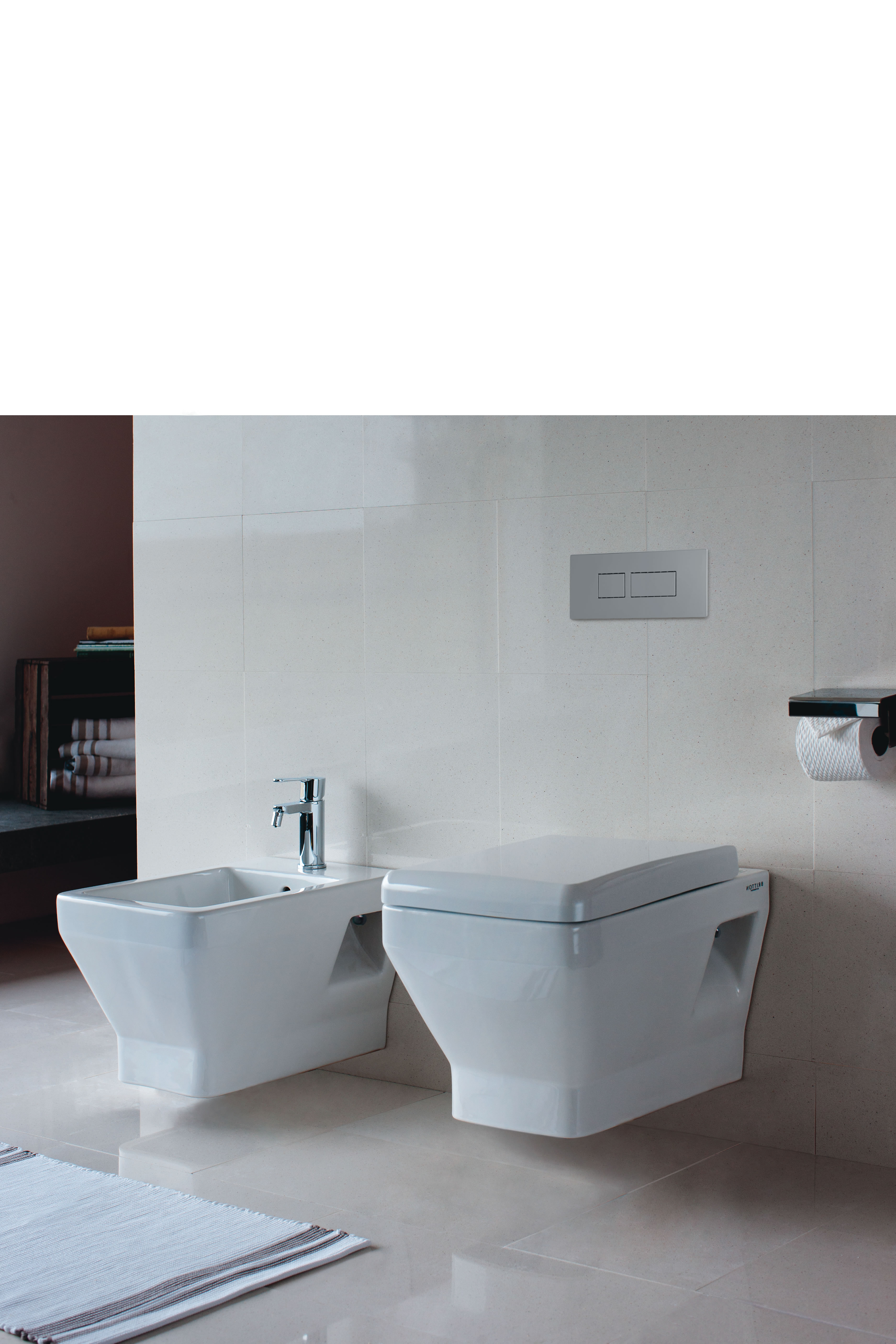

Cube S20 wall hung bidet
As Shown
| 20.1951 Cube wall hung bidet |
Colour
| 20.1951 - bidet - white |
Material
| 20.1951 - bidet - vitreous china |
Nett Weight
| 20.1951 - bidet - 23.2kg |
Gross Weight Including Packaging
| 20.1951 - bidet - 25.2kg |
Packed Dimension
| 20.1951 - 560 x 400 x 375 = 0.084 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14528:2015 |
Downloads
-
2D CAD-File - DWG -
20.1951
(20.1951_LD.dwg)
-

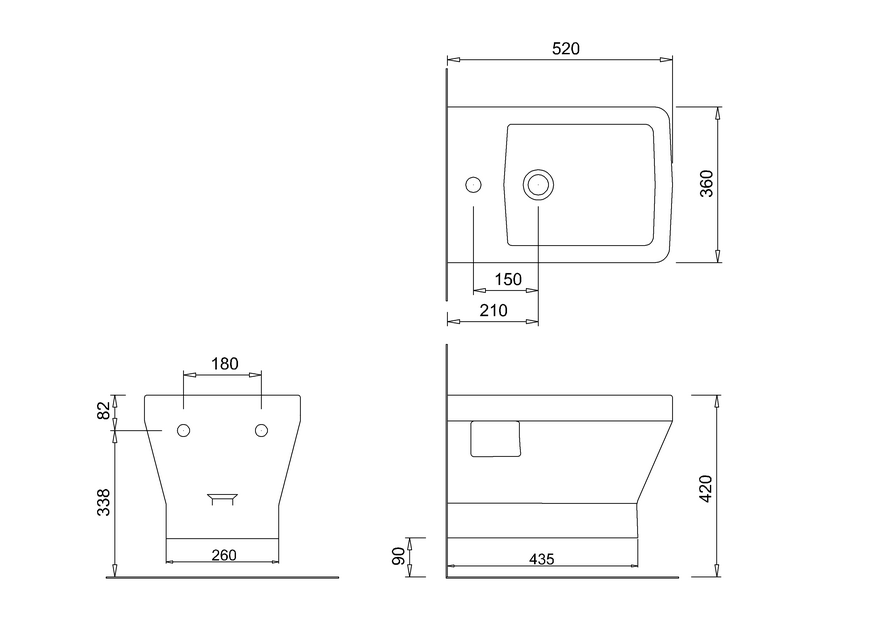

2D Drawing - PDF -
20.1951
(20.1951_LD.pdf)
2D Drawing - PDF - 20.1951
-
3D DWG - File - DWG
-
20.1951
(NPD1 Wall hung Bidet-N026.dwg)
-
3D DXF - File - DXF
-
20.1951
(NPD1 Wall hung Bidet-N026.dxf)
-
3D IGS - File - IGS
-
20.1951
(NPD1 Wall hung Bidet-N026.igs)
