Cube S20 back to wall pan with soft close seat
As Shown
| 20.1952 Cube back to wall WC |
| SS.1025 Carbamide soft close seat |
Nett Weight
| 20.1952 - pan - 31.39kg |
| SS.1025 - seat - 2.3kg |
Gross Weight Including Packaging
| 20.1952 - pan - 33.58kg |
| SS.1025 - seat - 2.65kg |
Packed Dimension
| 20.1952 - 560 x 400 x 460 = 0.103 m3 |
| SS.1025 - 445 x 366 x 56 = 0.0091 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Supplied with floor fixings |
Downloads
-
2D CAD-File - DWG -
20.1952 SS.1025
(20.1952 SS.1025_LD.dwg)
-

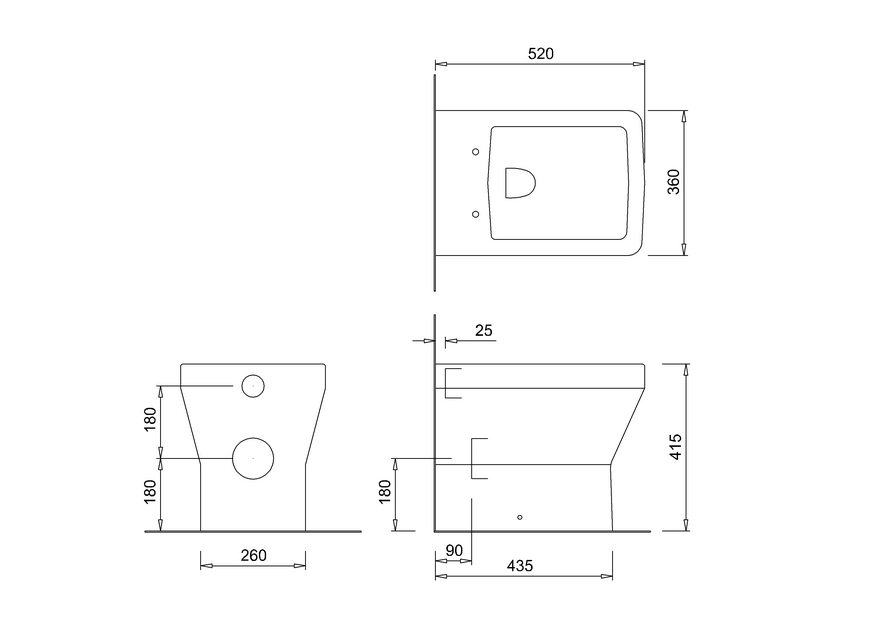

2D Drawing - PDF -
20.1952 SS.1025
(20.1952 SS.1025_LD.pdf)
2D Drawing - PDF - 20.1952 SS.1025
-
3D DWG - File - DWG
-
20.1952 SS.1025
(3502.dwg)
-
3D DXF - File - DXF
-
20.1952 SS.1025
(3502.dxf)
-
3D IGS - File - IGS
-
20.1952 SS.1025
(3502.igs)
-

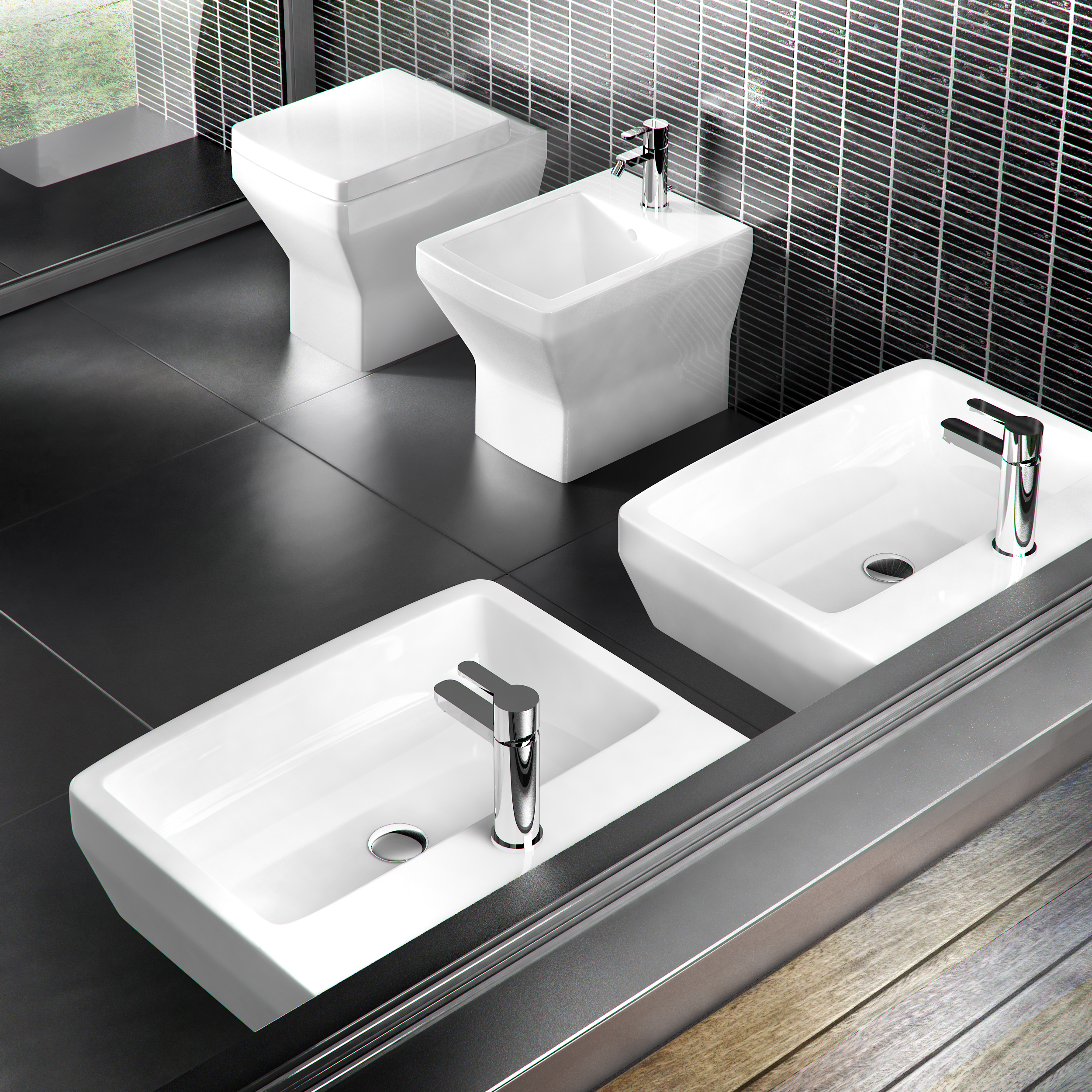

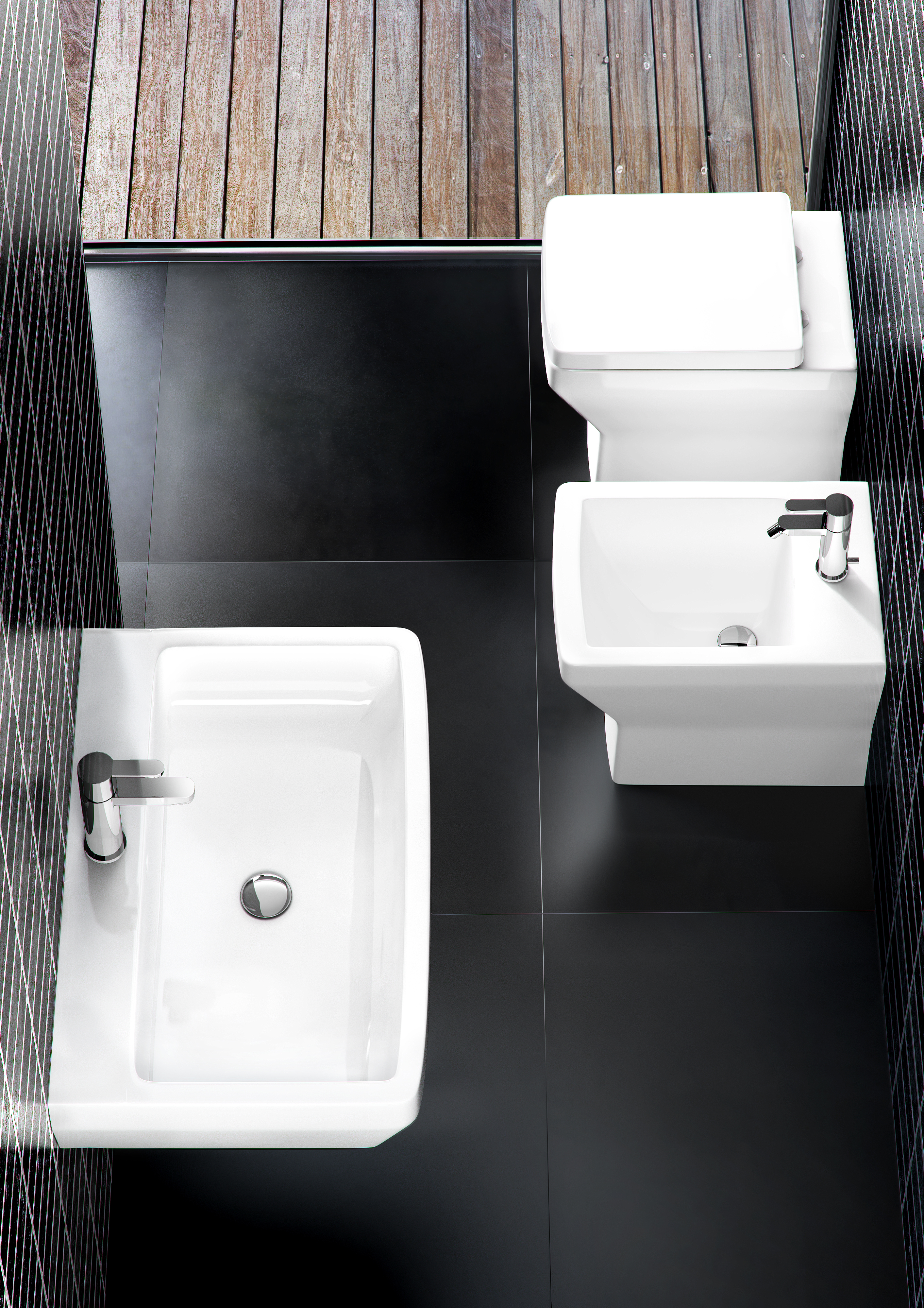

Lifestyle image 1 -
jpg -
Lifestyle image 2 -
jpg -
Lifestyle image 3 -
jpg -
Lifestyle image 4 -
jpg -
Lifestyle image 5 -
jpg -

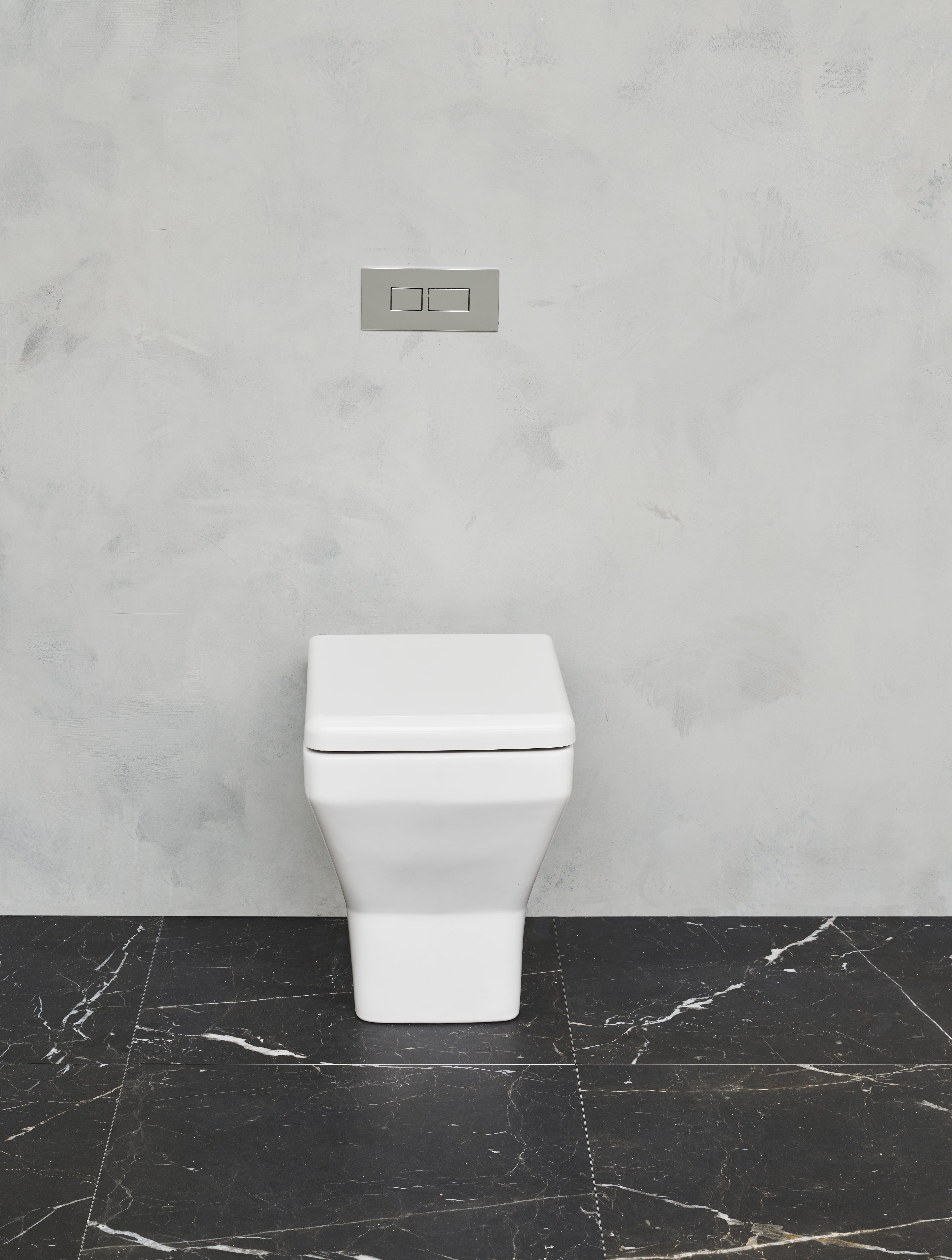

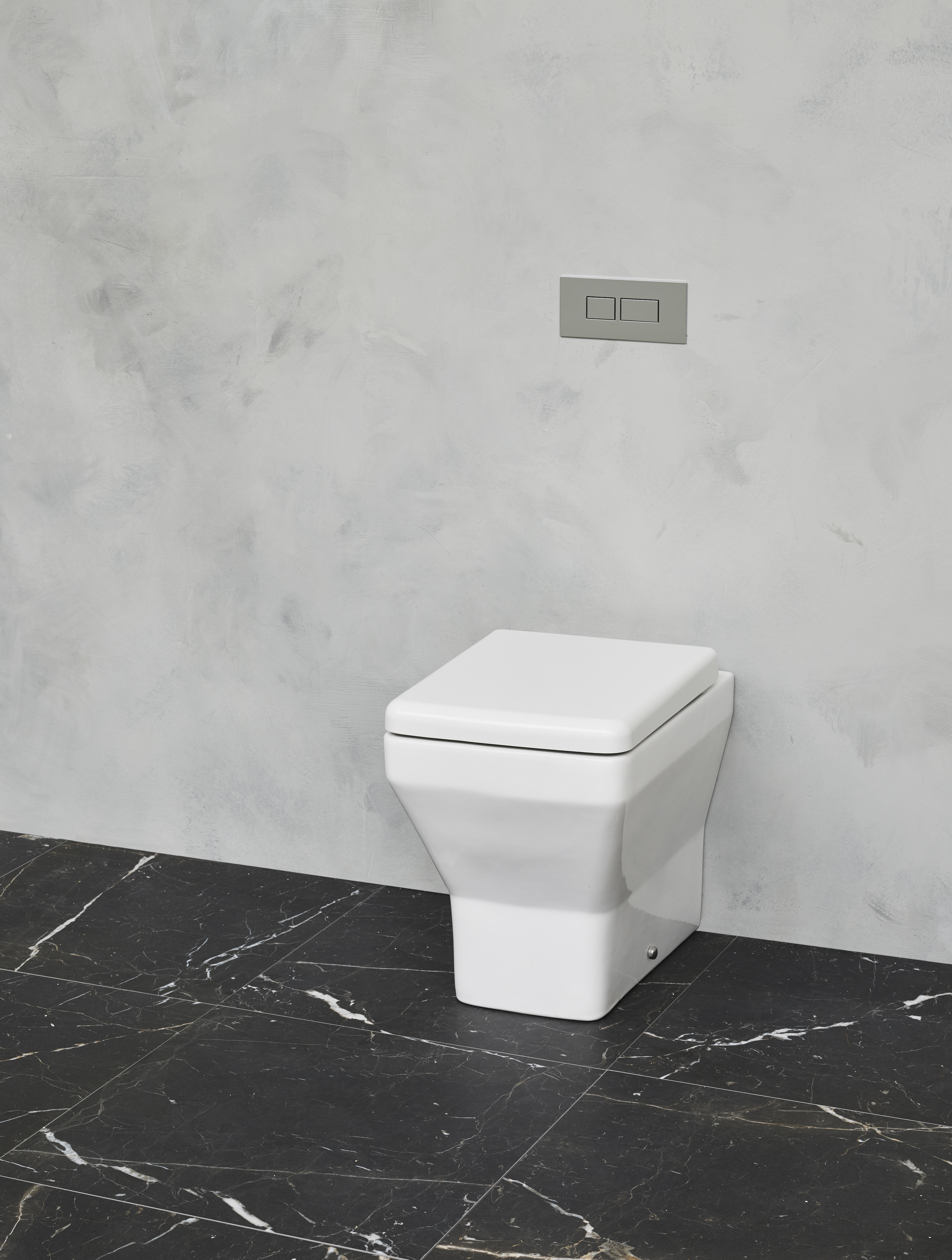

Product image 1 -
jpg
