Curve S30 wall-hung pan with soft close seat

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

30.1960 Curve wall hung WC

SS.1026 Carbamide soft close seat

Colour

30.1960 - pan - Gloss White

SS.1026 - seat - white

Material

30.1960 - pan - Vitreous China

SS.1026 - seat - carbamide

Size

30.1960 - 520 x 360 x 365mm

SS.1026 - 362 x 435 x 56mm

Nett Weight

30.1960 - pan - 25.8kg

SS.1026 - seat - 2kg

Gross Weight Including Packaging

30.1960 - pan - 27.8kg

SS.1026 - seat - 2.3kg

Packed Dimension

30.1960 - 560 x 400 x 408 = 0.0914 m3

SS.1026 - 435 x 368 x 58 = 0.0093 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 997:2018

BS EN 33:2019

Additional Information

Supplied with floor fixings

Downloads

Instructions - PDF - SS.1026 (English)
Instructions - PDF - SS.1026 (French)

2D CAD-File - DWG - 30.196 SS.1026 (30.196 SS.1026_LD.dwg)

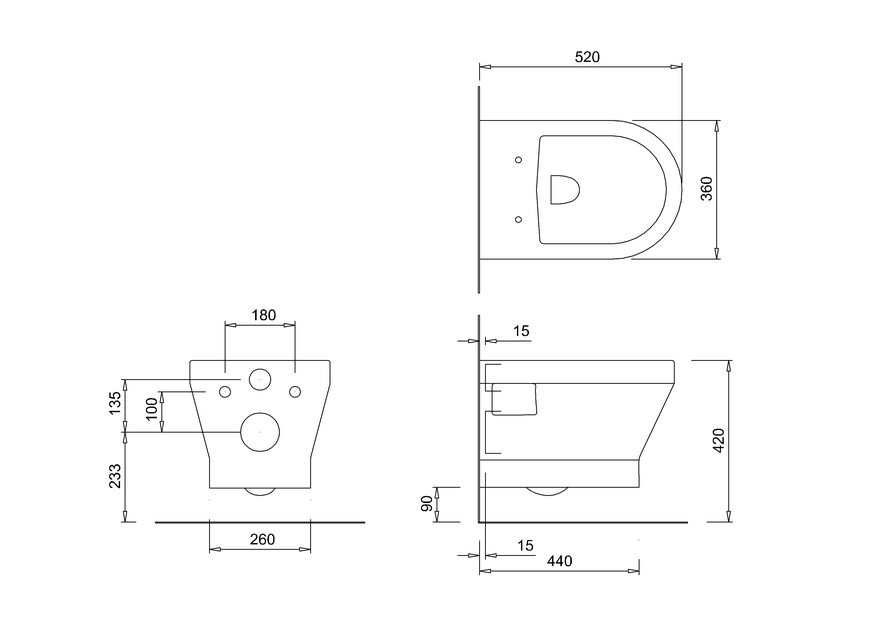

2D Drawing - PDF - 30.196 SS.1026 (30.196 SS.1026_LD.pdf) 2D Drawing - PDF - 30.196 SS.1026

3D DWG - File - DWG - 30.196 SS.1026 (3537.dwg)
3D DXF - File - DXF - 30.196 SS.1026 (3537.dxf)
3D IGS - File - IGS - 30.196 SS.1026 (3537.igs)

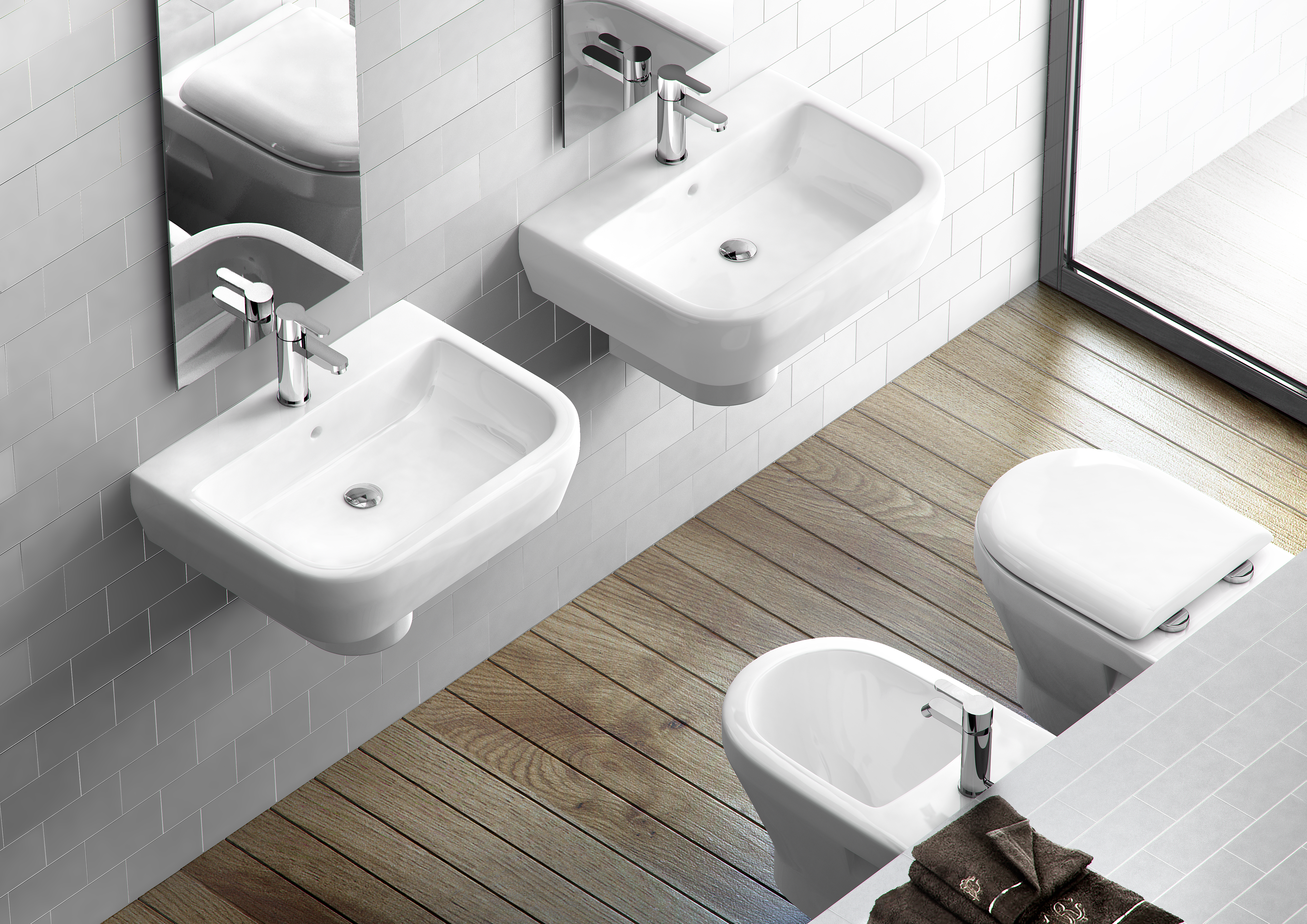

Lifestyle image 1 -

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
