Fine S40 close coupled WC
Product Options
WC unit options
with one piece cistern
|
with standard lid cistern
|
As Shown
| 40.1968 Fine close coupled WC |
| CC.1036 Cistern with lid |
| SS.1026 Carbamide soft close seat |
Material
| 40.1968 - pan - Vitreous China |
| CC.1036 - cistern - Vitreous China |
| SS.1026 - seat - carbamide |
Gross Weight Including Packaging
| 40.1968 - pan - 38.1kg |
| CC.1036 - cistern - 17.5kg |
| SS.1026 - seat - 2.3kg |
Packed Dimension
| 40.1968 - 695 x 400 x 485 = 0.1348 m3 |
| CC.1036 - 400 x 220 x 535 = 0.0471 m3 |
| SS.1026 - 435 x 368 x 58 = 0.0093 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Supplied with floor fixings |
| SP173 | dual Flush Button of the cistern fittings for CC.1036 & CC.1980 |
| SP1269 | dual Flush valve of universal cistern fitting SP697 |
| SP697 | full set of cistern fittings for CC.1036, CM.0007, SPH002, 15.B.27353, 15.B.27349 |
| SP504 | inlet valve for Britton close coupled cisterns |
Downloads
- Instructions - PDF - CC.1036 (English)
- Instructions - PDF - SS.1026 (English)
- Instructions - PDF - SS.1026 (French)
-
2D CAD-File - DWG -
CC.1036 40.1968 SS.1026
(CC.1036 40.1968 SS.1027_LD.dwg)
-

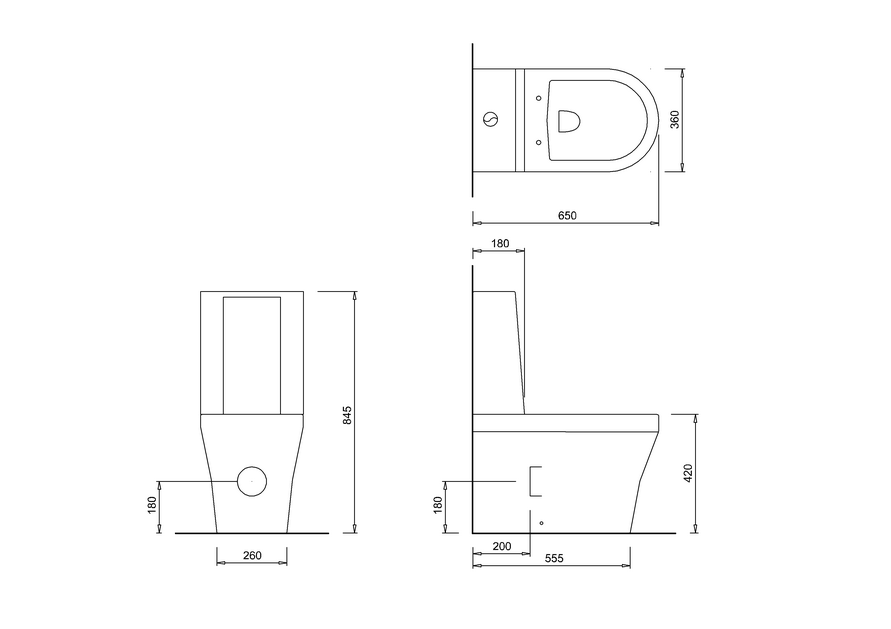

2D Drawing - PDF -
CC.1036 40.1968 SS.1026
(CC.1036 40.1968 SS.1027_LD.pdf)
2D Drawing - PDF - CC.1036 40.1968 SS.1026
-
3D DWG - File - DWG
-
CC.1036 40.1968 SS.1026
(3542.dwg)
-
3D DXF - File - DXF
-
CC.1036 40.1968 SS.1026
(3542.dxf)
-
3D IGS - File - IGS
-
CC.1036 40.1968 SS.1026
(3542.igs)
