Fine S40 500 basin
Product Options
Pedestal options
|
with round fronted pedestal
|

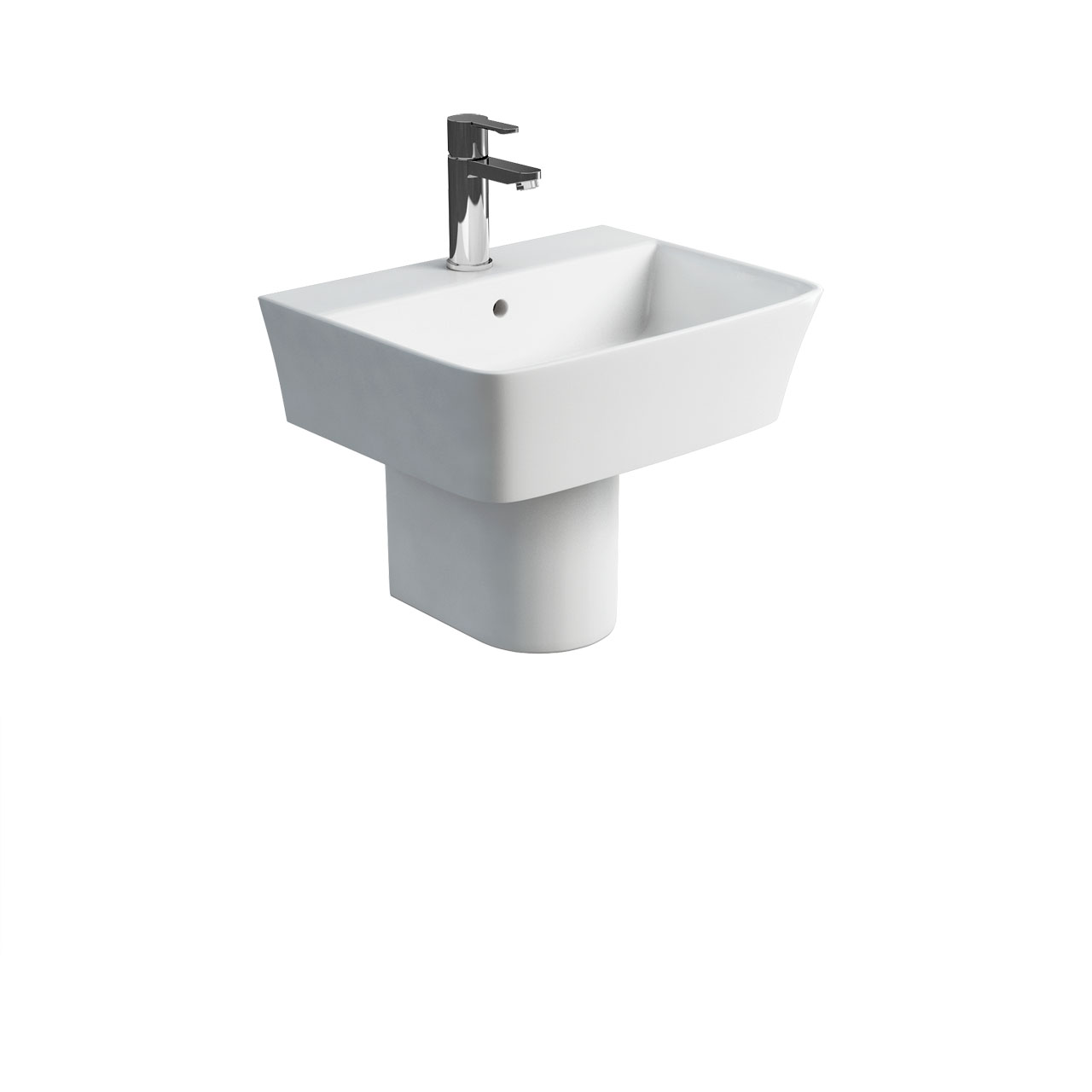

with round fronted semi pedestal
|

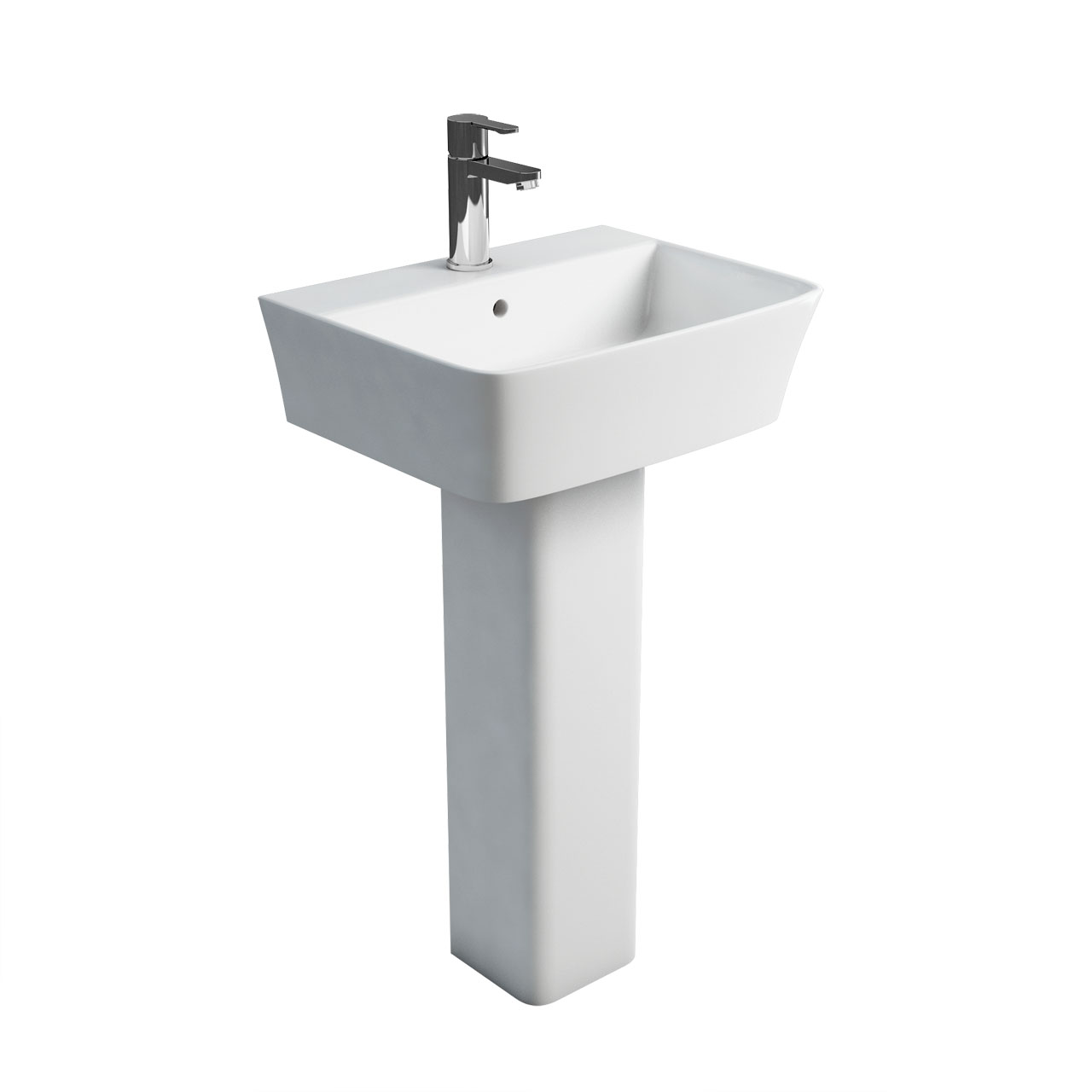

with square fronted pedestal
|

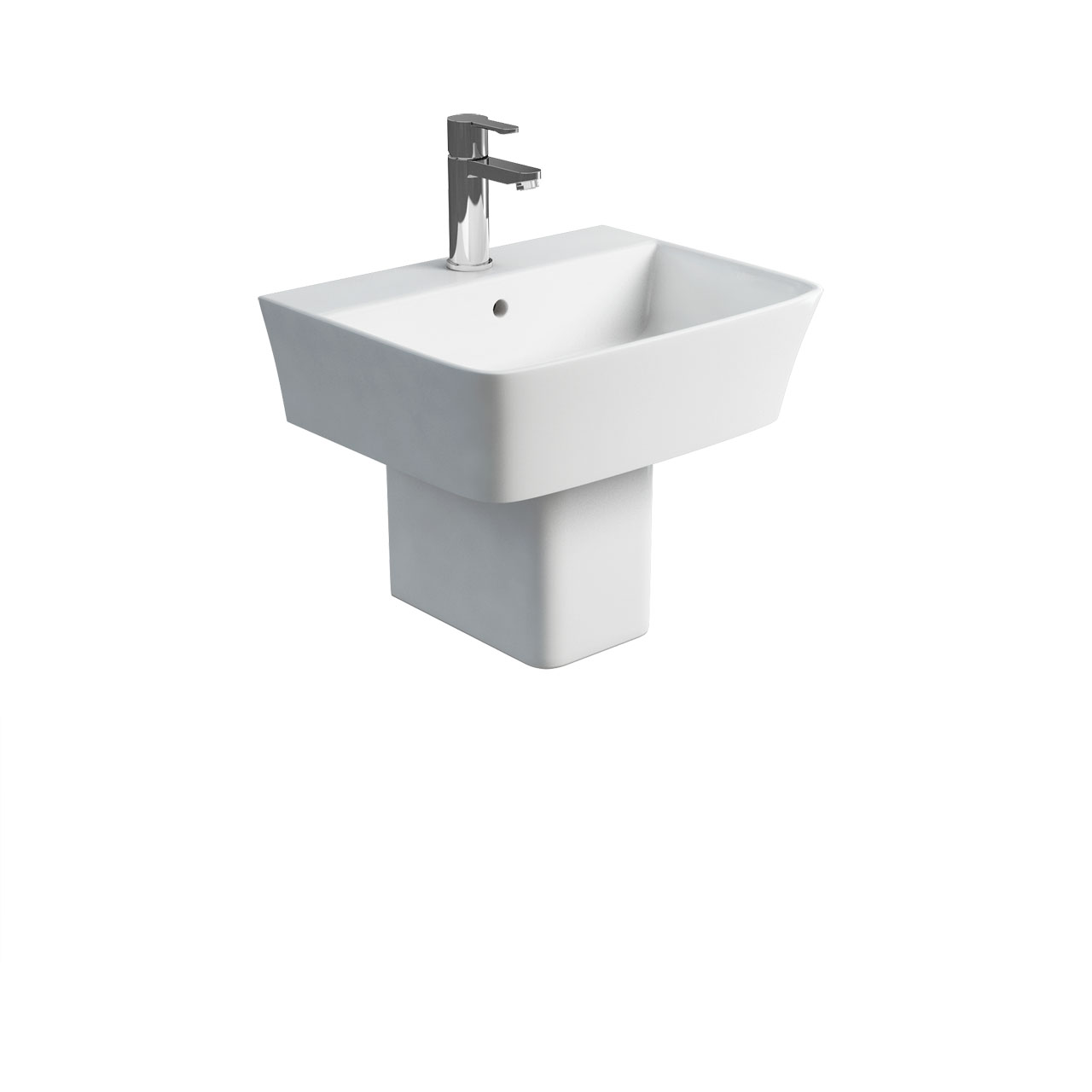

with square fronted semi pedestal
|
As Shown
| 40.1974 500mm Fine washbasin |
| FP1032 Round full pedestal |
Nett Weight
| 40.1974 - basin - 14kg |
| FP1032 - pedestal - 13.4kg |
Gross Weight Including Packaging
| 40.1974 - basin - 16kg |
| FP1032 - pedestal - 14.4kg |
Tap Hole Options
| 1 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Compatible Products
| W11 - Click-Clack Basin Waste (slotted) |
| W18 - Flip Top Basin Waste (slotted) |
Downloads
-
2D CAD-File - DWG -
FP.1032 40.1974
(FP.1032 40.1974_LD.dwg)
-

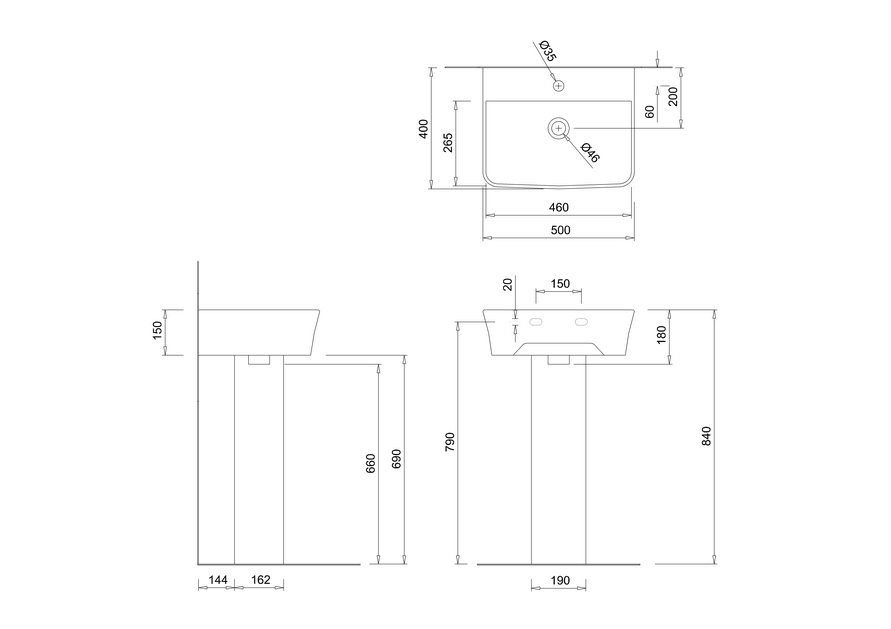

2D Drawing - PDF -
FP.1032 40.1974
(FP.1032 40.1974_LD.pdf)
2D Drawing - PDF - FP.1032 40.1974
-
3D DWG - File - DWG
-
FP.1032 40.1974
(3562.dwg)
-
3D DXF - File - DXF
-
FP.1032 40.1974
(3562.dxf)
-
3D IGS - File - IGS
-
FP.1032 40.1974
(3562.igs)
