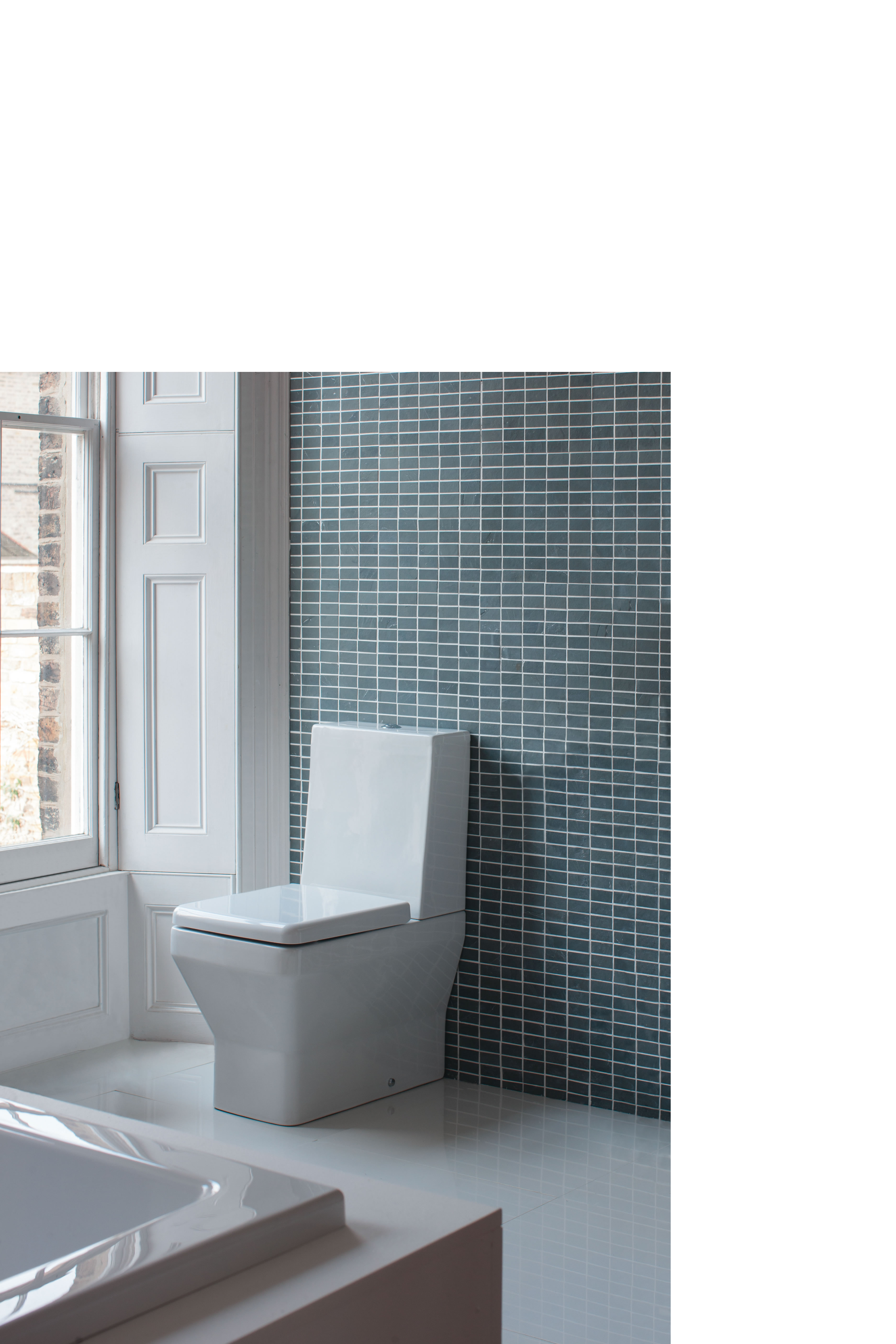

Cube S20 close coupled WC
As Shown
| 20.1949 Cube close coupled pan |
| CC.1034 One piece cistern |
| SS.1025 Carbamide soft close seat |
Gross Weight Including Packaging
| 20.1949 - pan - 36.6kg |
| CC.1034 - cistern - 14.65kg |
| SS.1025 - seat - 2.65kg |
Packed Dimension
| 20.1949 - 695 x 400 x 460 = 0.1279 m3 |
| CC.1034 - 400 x 220 x 473 = 0.0416 m3 |
| SS.1025 - 445 x 366 x 56 = 0.0091 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Supplied with floor fixings |
| SP326 | flush valve of cistern fittings for CC.1034 |
Downloads
- Instructions - PDF - CC.1034 (English)
- Instructions - PDF - SS.1025 (English)
- Instructions - PDF - SS.1025 (French)
-
2D CAD-File - DWG -
20.1949 CC.1034 SS.1025
(20.1949_LD.dwg)
-

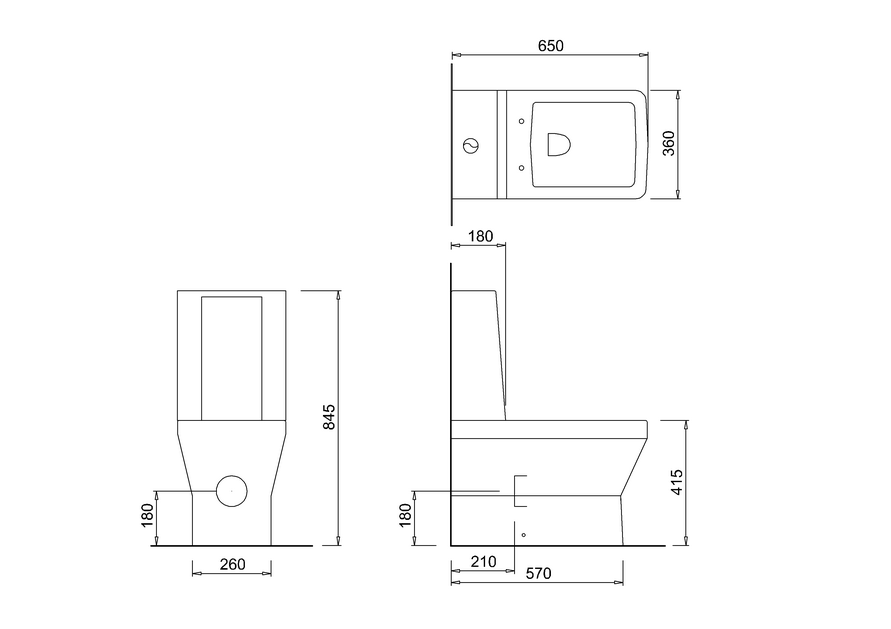

2D Drawing - PDF -
20.1949 CC.1034 SS.1025
(20.1949_LD.pdf)
2D Drawing - PDF - 20.1949 CC.1034 SS.1025
-
3D DWG - File - DWG
-
20.1949 CC.1034 SS.1025
(3583.dwg)
-
3D DXF - File - DXF
-
20.1949 CC.1034 SS.1025
(3583.dxf)
-
3D IGS - File - IGS
-
20.1949 CC.1034 SS.1025
(3583.igs)
