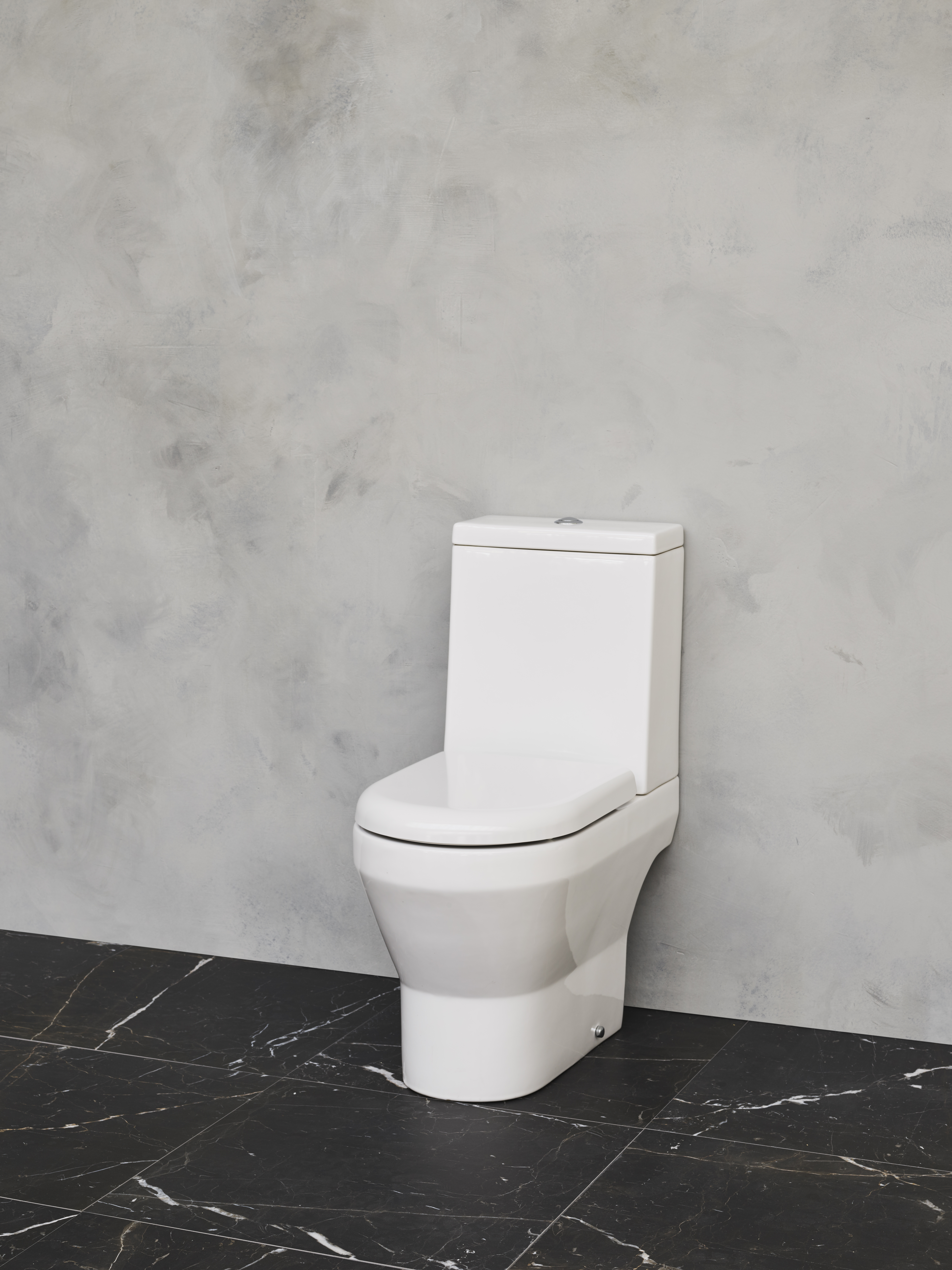

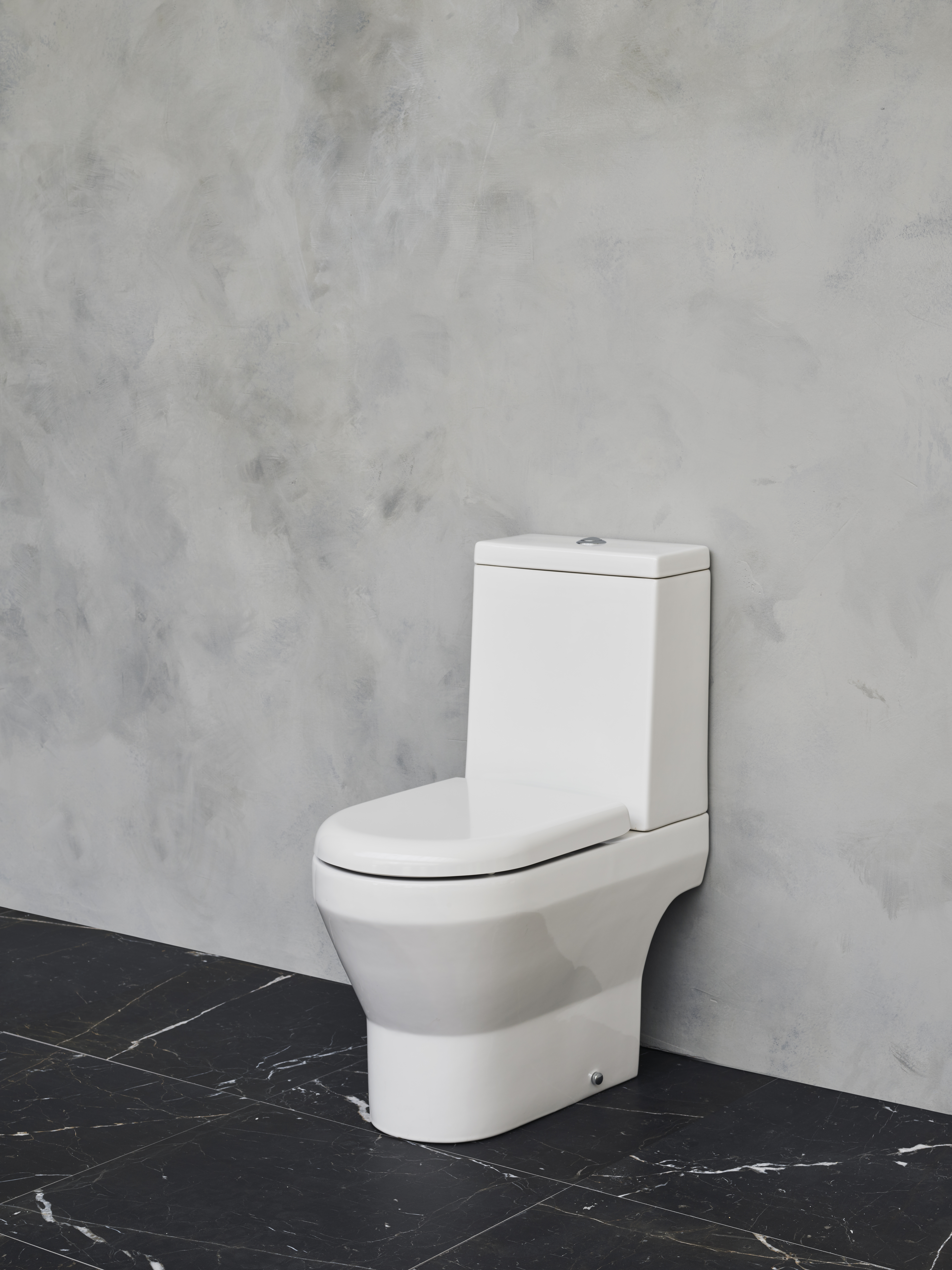

Curve S30 close-coupled WC (pan open-back)
Product Options
WC unit options
|
with standard lid cistern
|
As Shown
| 30.1958 − |
| CC.1036 − |
| SS.1026 − |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Supplied with floor fixings |
| SP173 | dual Flush Button of the cistern fittings for CC.1036 & CC.1980 |
| SP1269 | dual Flush valve of universal cistern fitting SP697 |
| SP697 | full set of cistern fittings for CC.1036, CM.0007, SPH002, 15.B.27353, 15.B.27349 |
| SP504 | inlet valve for Britton close coupled cisterns |
Downloads
- Instructions - PDF - 30.1958 (English)
- Instructions - PDF - CC.1036 (English)
- Instructions - PDF - SS.1026 (English)
- Instructions - PDF - (French)
-
2D CAD-File - DWG -
CC.1036 30.1958 SS.1026
(CC.1036 30.1958 SS.1026_LD.dwg)
-

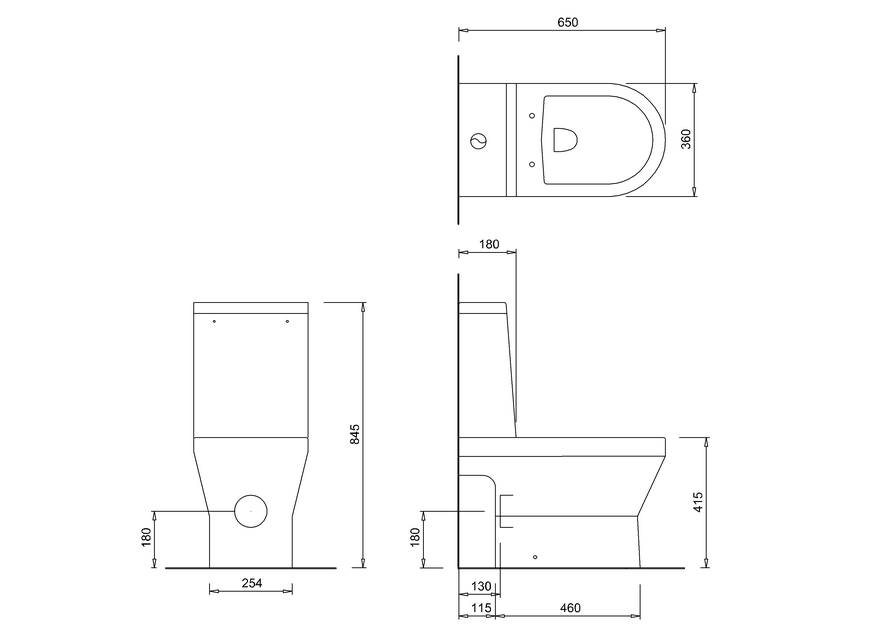

2D Drawing - PDF -
CC.1036 30.1958 SS.1026
(CC.1036 30.1958 SS.1026_LD.pdf)
2D Drawing - PDF - CC.1036 30.1958 SS.1026
-
3D DWG - File - DWG
-
CC.1036 30.1958 SS.1026
(3586.dwg)
-
3D DXF - File - DXF
-
CC.1036 30.1958 SS.1026
(3586.dxf)
-
3D IGS - File - IGS
-
CC.1036 30.1958 SS.1026
(3586.igs)
