Fine S40 wall hung bidet

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

40.1970 Fine wall hung bidet

Colour

40.1970 - bidet - Gloss White

Material

40.1970 - bidet - Vitreous China

Size

40.1970 - 518 x 360 x 336mm

Nett Weight

40.1970 - bidet - 23kg

Gross Weight Including Packaging

40.1970 - bidet - 25kg

Packed Dimension

40.1970 - 580 x 420 x 400 = 0.0974 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14528:2015

Downloads

2D CAD-File - DWG - 40.197 (40.197_LD.dwg)

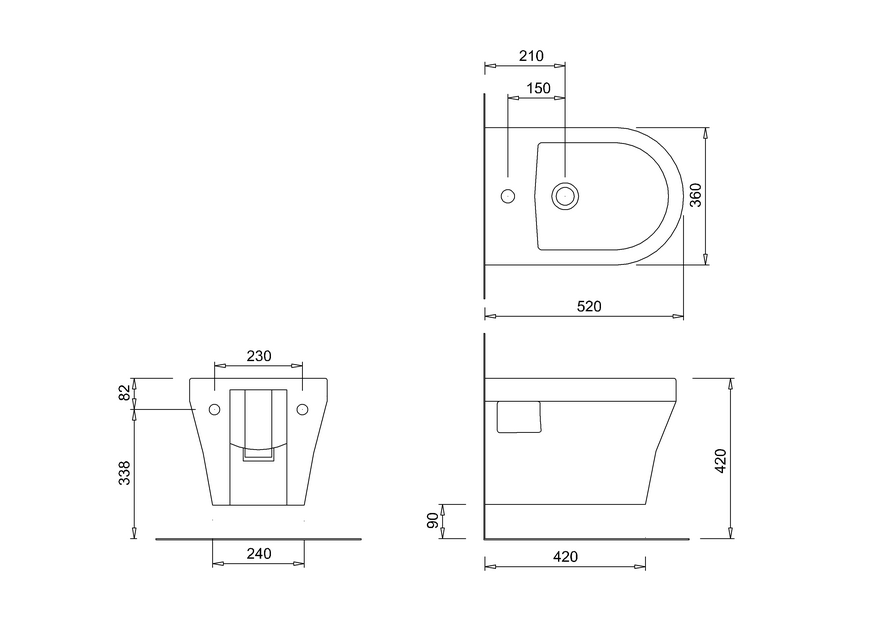

2D Drawing - PDF - 40.197 (40.197_LD.pdf) 2D Drawing - PDF - 40.197

3D DWG - File - DWG - 40.197 (NPD3-WH-Bidet - N07605X_1.dwg)
3D DXF - File - DXF - 40.197 (NPD3-WH-Bidet - N07605X_1.dxf)
3D IGS - File - IGS - 40.197 (NPD3-WH-Bidet - N07605X_1.igs)

Lifestyle image 1 -

jpg
Lifestyle image 2 - tiff

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
