Curve S30 500 basin & tall pedestal

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

30.1967 500mm Curve washbasin

FP.1977 Full pedestal (round)

Colour

30.1967 - basin - Gloss White

FP.1977 - pedestal - Gloss White

Material

30.1967 - basin - Vitreous China

FP.1977 - pedestal - Vitreous China

Size

30.1967 - 400 x 505 x 182mm

FP.1977 - 165 x 185 x 746mm

Nett Weight

30.1967 - basin - 15.4kg

FP.1977 - pedestal - 12.93kg

Gross Weight Including Packaging

30.1967 - basin - 17.4kg

FP.1977 - pedestal - 13.93kg

Packed Dimension

30.1967 - 540 x 445 x 210 = 0.0505 m3

FP.1977 - 785 x 220 x 207 = 0.0357 m3

Tap Hole Options

1

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 31:2011

BS EN 14688:2015

Compatible Products

W11 - Click-Clack Basin Waste (slotted)

W18 - Flip Top Basin Waste (slotted)

Downloads

2D CAD-File - DWG - 30.1967 FP.1977 (30.1967 FP.1977_LD.dwg)

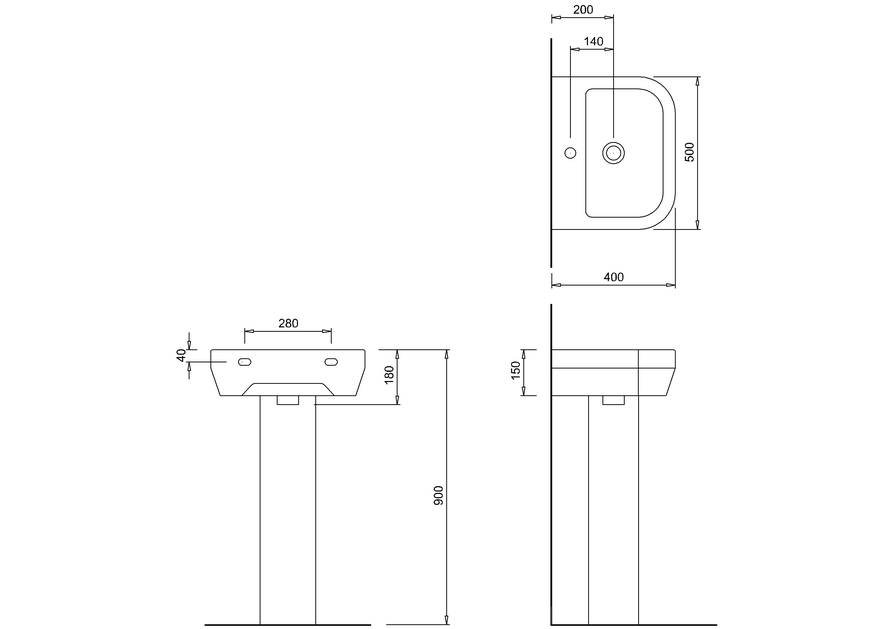

2D Drawing - PDF - 30.1967 FP.1977 (30.1967 FP.1977_LD.pdf) 2D Drawing - PDF - 30.1967 FP.1977

3D DWG - File - DWG - 30.1967 FP.1977 (3709.dwg)
3D DXF - File - DXF - 30.1967 FP.1977 (3709.dxf)
3D IGS - File - IGS - 30.1967 FP.1977 (3709.igs)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
