Curve S30 600 basin & tall pedestal

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

30.1966 600mm Curve washbasin

FP.1977 Full pedestal (round)

Colour

30.1966 - basin - white

FP.1977 - pedestal - Gloss White

Material

30.1966 - basin - vitreous china

FP.1977 - pedestal - Vitreous China

Size

30.1966 - 450 x 605 x 150mm

FP.1977 - 165 x 185 x 746mm

Nett Weight

30.1966 - basin - 18.68kg

FP.1977 - pedestal - 12.93kg

Gross Weight Including Packaging

30.1966 - basin - 20.98kg

FP.1977 - pedestal - 13.93kg

Packed Dimension

30.1966 - 640 x 485 x 210 = 0.0652 m3

FP.1977 - 785 x 220 x 207 = 0.0357 m3

Tap Hole Options

1

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 31:2011

BS EN 14688:2015

Compatible Products

W11 - Click-Clack Basin Waste (slotted)

W18 - Flip Top Basin Waste (slotted)

Downloads

2D CAD-File - DWG - 30.1966 FP.1977 (30.1966 FP.1977_LD.dwg)

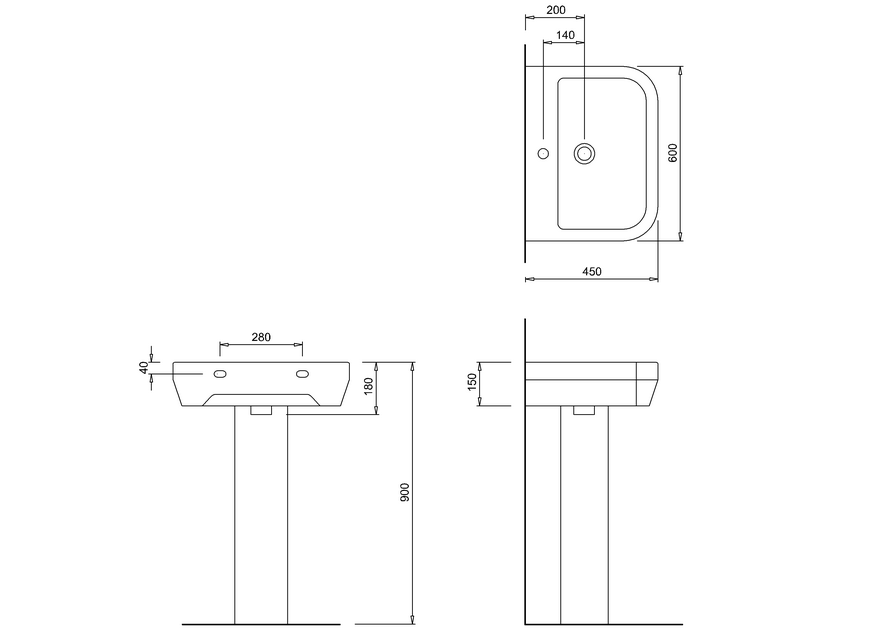

2D Drawing - PDF - 30.1966 FP.1977 (30.1966 FP.1977_LD.pdf) 2D Drawing - PDF - 30.1966 FP.1977

3D DWG - File - DWG - 30.1966 FP.1977 (3710.dwg)
3D DXF - File - DXF - 30.1966 FP.1977 (3710.dxf)
3D IGS - File - IGS - 30.1966 FP.1977 (3710.igs)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
