ClearGreen Baths - Sustain Baths
Product Options
Bath size options
|
1600 x 700mm
|
1700 x 700mm
|
1700 x 750mm
|
1700 x 800mm
|
1800 x 800mm
|
As Shown
| R4 Sustain bath |
Colour
| R4 - bath - Gloss White |
Material
| R4 - bath - Acrylic |
Nett Weight
| R4 - bath - 23.25kg |
Gross Weight Including Packaging
| R4 - bath - 23.85kg |
Packed Dimension
| R4 - 1610 x 710 x 425 = 0.4858 m3 |
Bath water capacity
| 98 litres displaced water capacity |
Tap Hole Options
| 0, 1, 2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| R24F - Front bath panel 1600 |
| R27E - End bath panel 700 |
| CW8 - Click-clack bath waste |
| SP231 | leg sets for Enviro, Sustain, EcoCurve, Verde, Reuse, Viride baths |
| SP705 | rectangular ABS block on the Cleargreen bath |
| SP704 | square ABS block on the Cleargreen bath |
Downloads
-
2D CAD-File - DWG -
R4
(R4.dwg)
-

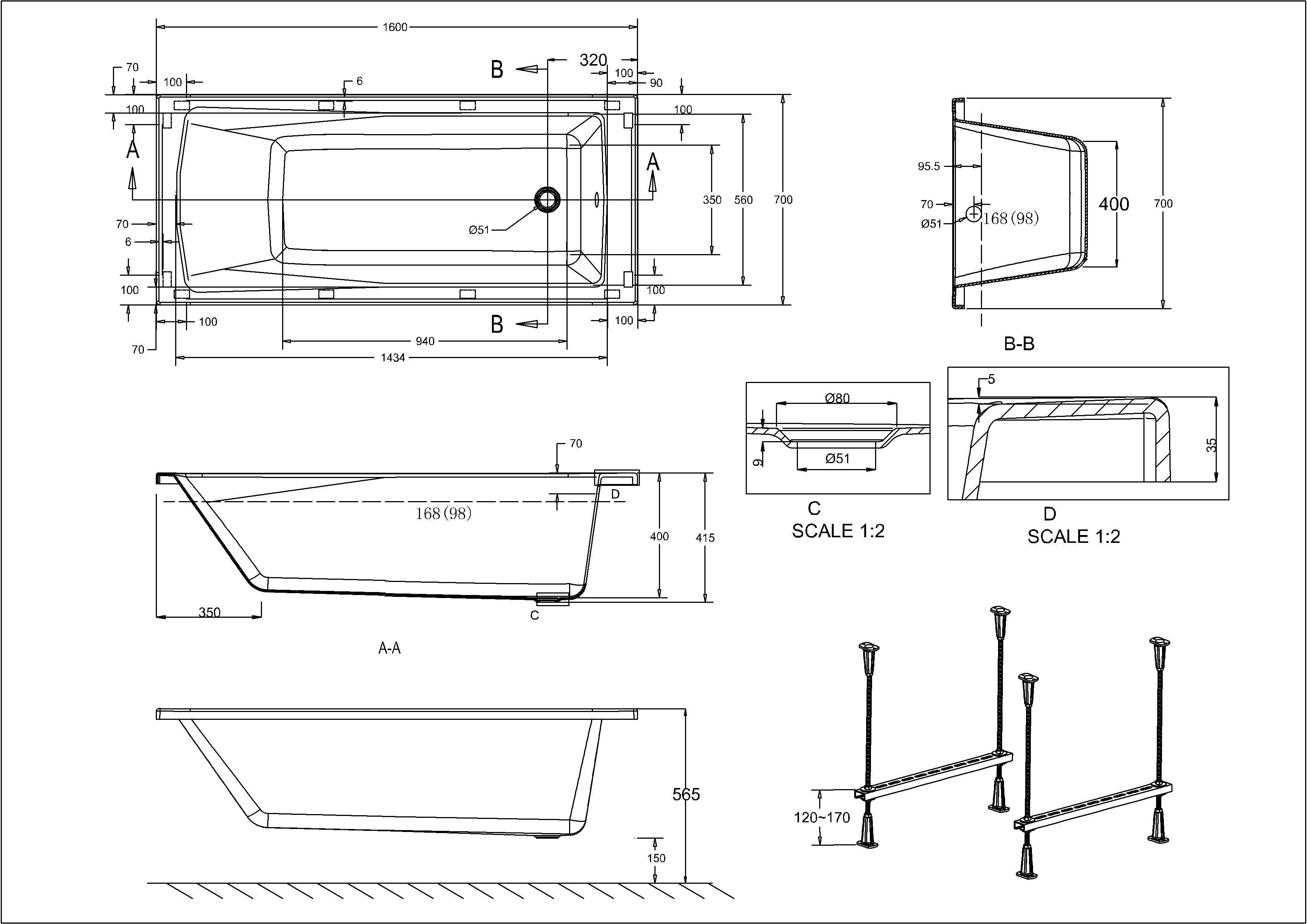

2D Drawing - PDF -
R4
(R4.pdf)
2D Drawing - PDF - R4
-
3D DWG - File - DWG
-
R4
(BSA-1602HWC_1.dwg)
-
3D DXF - File - DXF
-
R4
(BSA-1602HWC_1.dxf)
-
3D IGS - File - IGS
-
R4
(BSA-1602HWC_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
R4
(R4.rfa)
-
Lifestyle image 1 -
jpg -
Lifestyle image 2 -
tiff
jpg -
Lifestyle image 3 -
tiff
jpg -
Lifestyle image 4 -
tiff
jpg -
Lifestyle image 5 -
jpg -
Lifestyle image 6 -
jpg -
Product image 1 -
jpg
